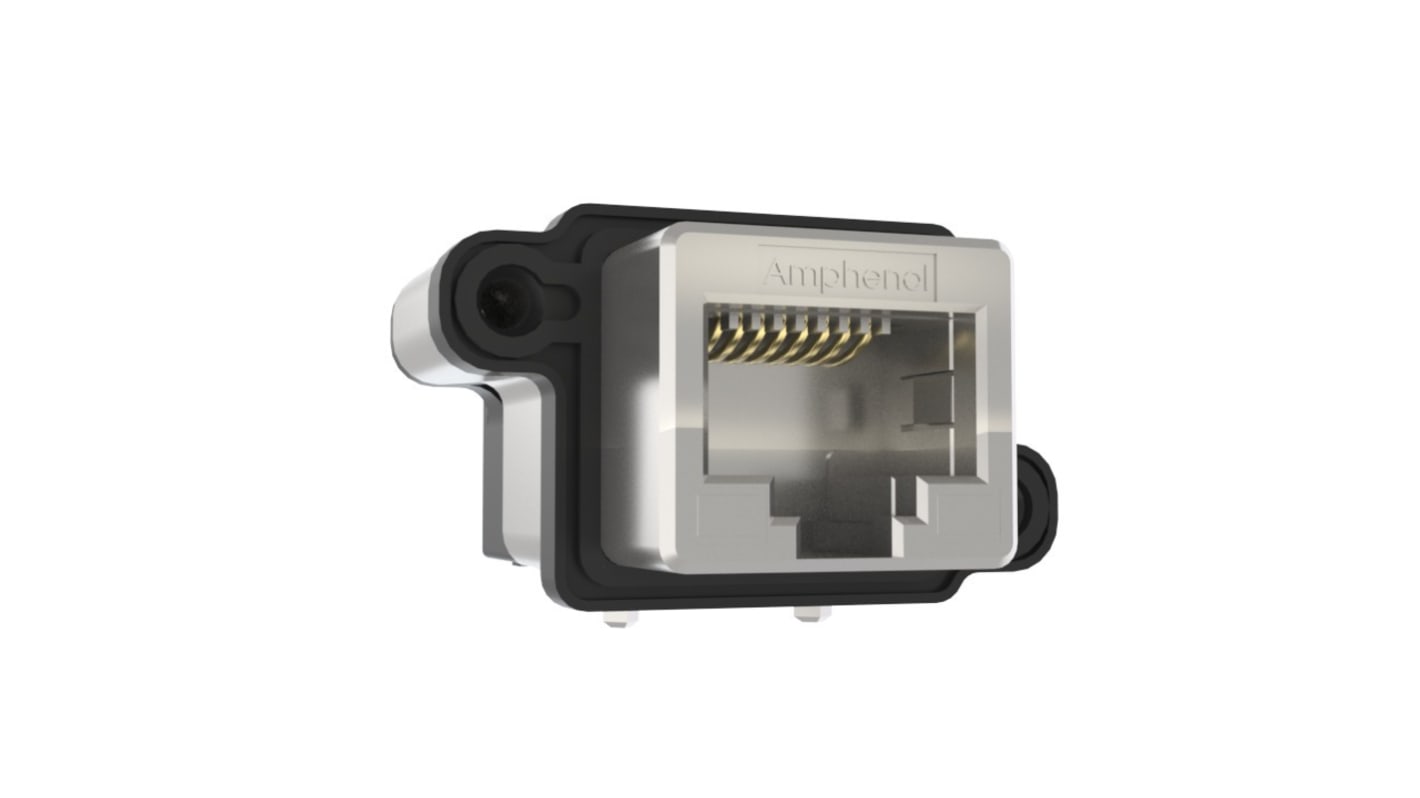

Amphenol Communications Solutions MRJR9384 Series Ethernet Connector Female, PCB, Unshielded Shield 1 Port 8 -Way
- N° de stock RS:
- 286-5242
- Référence fabricant:
- MRJR9384MC
- Fabricant:
- Amphenol Communications Solutions
Offre groupée disponible
Sous-total (1 unité)*
14,38 €
(TVA exclue)
17,40 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 57 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 14,38 € |
| 10 - 19 | 13,28 € |
| 20 + | 12,32 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 286-5242
- Référence fabricant:
- MRJR9384MC
- Fabricant:
- Amphenol Communications Solutions
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Amphenol Communications Solutions | |
| Ethernet Connector Type | RJ45 | |
| Product Type | Ethernet Connector | |
| Number of Ports | 1 | |
| Mount Type | PCB | |
| Number of Ways | 8 | |
| Connector Gender | Female | |
| Connector Type | RJ45 | |
| Shield Type | Unshielded | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | No | |
| Series | MRJR9384 | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Matt Tin, Gold, Phosphor Bronze, Nickel | |
| Sélectionner tout | ||
|---|---|---|
Marque Amphenol Communications Solutions | ||
Ethernet Connector Type RJ45 | ||
Product Type Ethernet Connector | ||
Number of Ports 1 | ||
Mount Type PCB | ||
Number of Ways 8 | ||
Connector Gender Female | ||
Connector Type RJ45 | ||
Shield Type Unshielded | ||
IP Rating IP67 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification No | ||
Series MRJR9384 | ||
Contact Material Phosphor Bronze | ||
Contact Plating Matt Tin, Gold, Phosphor Bronze, Nickel | ||
- Pays d'origine :
- CN
The Amphenol Communications Solutions MRJR series RJ45 connector is a line of generation 2 ruggedized RJ45 connectors with die cast housings and IP67 sealing, designed for harsh environment applications. MRJR provides a standard RJ45 interface. Protection is provided for IP67 applications per IEC 60529 specification.
Data rates conform to 10BaseT or 100BaseT Ethernet
Die cast metal housings protect against mechanical damage
Wide variety of mounting and termination options
Operating temperature range from -40°C to +105°C for extreme conditions
