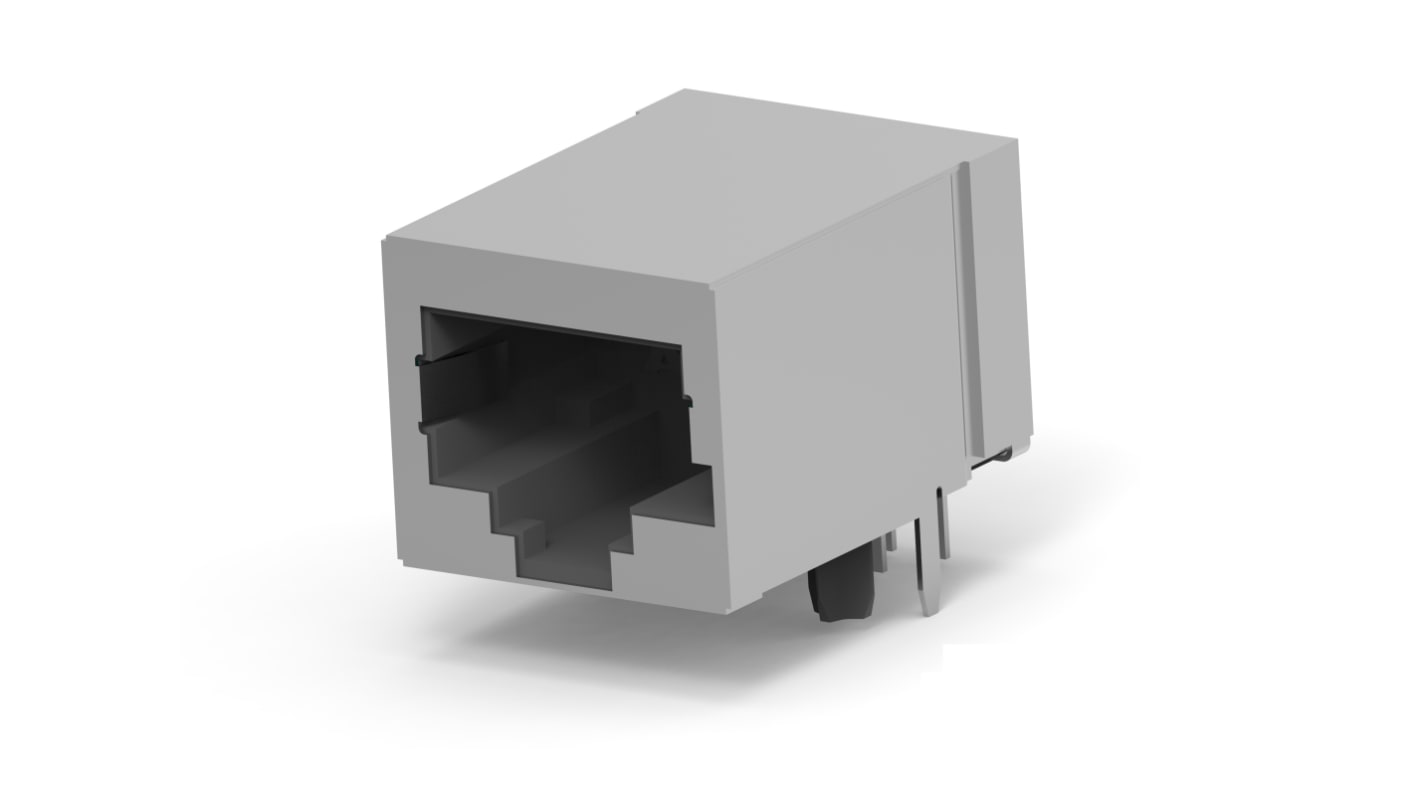

TE Connectivity 5558310 Series RJ45 Connector Female, Board, Cat3 Tin Plated Copper Shield Right Angle 2 Port
- N° de stock RS:
- 274-9973
- Référence fabricant:
- 5558310-1
- Fabricant:
- TE Connectivity
Actuellement indisponible
Désolés, nous ne savons pas quand ce produit sera réapprovisionné.
- N° de stock RS:
- 274-9973
- Référence fabricant:
- 5558310-1
- Fabricant:
- TE Connectivity
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | TE Connectivity | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat3 | |
| Mount Type | Board | |
| Number of Ports | 2 | |
| Connector Type | RJ45 | |
| Connector Gender | Female | |
| Shield Type | Tin Plated Copper | |
| Orientation | Right Angle | |
| LED | No | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Series | 5558310 | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| Contact Material | Nickel | |
| Contact Plating | Tin | |
| Sélectionner tout | ||
|---|---|---|
Marque TE Connectivity | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat3 | ||
Mount Type Board | ||
Number of Ports 2 | ||
Connector Type RJ45 | ||
Connector Gender Female | ||
Shield Type Tin Plated Copper | ||
Orientation Right Angle | ||
LED No | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Series 5558310 | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
Contact Material Nickel | ||
Contact Plating Tin | ||
Statut RoHS : Exempté
- Pays d'origine :
- CN
The TE Connectivity RJ45 Connector features a modular jack and plug interface type known as RJ45, which is commonly used for Ethernet and networking connections. The connector contact density adheres to the standard configuration for RJ45 connectors. The port matrix configuration for this connector is 1 x 1, indicating a single port configuration. In practical terms, this means that the connector has one input and one output port, commonly used for establishing a single network connection.
Connector profile is low
Gold contact mating area
Cat3 performance category
UL 94V0 flammability rating
Phosphor bronze contact base material
