Références fabricant

Siemens RJ45 Socket Female, DIN Rail, Cat6a Straight 2 Port 8 Way

N° de stock RS:: 265-5231
Référence fabricant:: 6GK1901-0BE10-0AA0
Fabricant:: Siemens

Siemens RJ45 Socket Female, DIN Rail, Cat6a Straight 2 Port 8 Way

Sous-total (1 unité)*

46,06 €

(TVA exclue)

55,73 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

En stock

25 unité(s) prête(s) à être expédiée(s)

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	46,06 €

*Prix donné à titre indicatif

N° de stock RS:: 265-5231
Référence fabricant:: 6GK1901-0BE10-0AA0
Fabricant:: Siemens

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Siemens
	Product Type	RJ45 Socket
	Ethernet Connector Type	RJ45
	LAN Category	Cat6a
	Number of Ports	2
	Mount Type	DIN Rail
	Number of Ways	8
	Connector Type	RJ45 Keystone
	Connector Gender	Female
	Orientation	Straight
	IP Rating	IP20
	Minimum Operating Temperature	-40°C
	Termination Type	Fast-Connect
	Maximum Operating Temperature	70°C
	Standards/Approvals	cULus approval, RoHS
	Length	20mm
	Width	14.7mm
	Depth	36mm
	Hazardous Area Certification	No

	Sélectionner tout
	Marque Siemens
	Product Type RJ45 Socket
	Ethernet Connector Type RJ45
	LAN Category Cat6a
	Number of Ports 2
	Mount Type DIN Rail
	Number of Ways 8
	Connector Type RJ45 Keystone
	Connector Gender Female
	Orientation Straight
	IP Rating IP20
	Minimum Operating Temperature -40°C
	Termination Type Fast-Connect
	Maximum Operating Temperature 70°C
	Standards/Approvals cULus approval, RoHS
	Length 20mm
	Width 14.7mm
	Depth 36mm
	Hazardous Area Certification No

Datasheet - 6GK19010BE100AA0

Pays d'origine :: DE

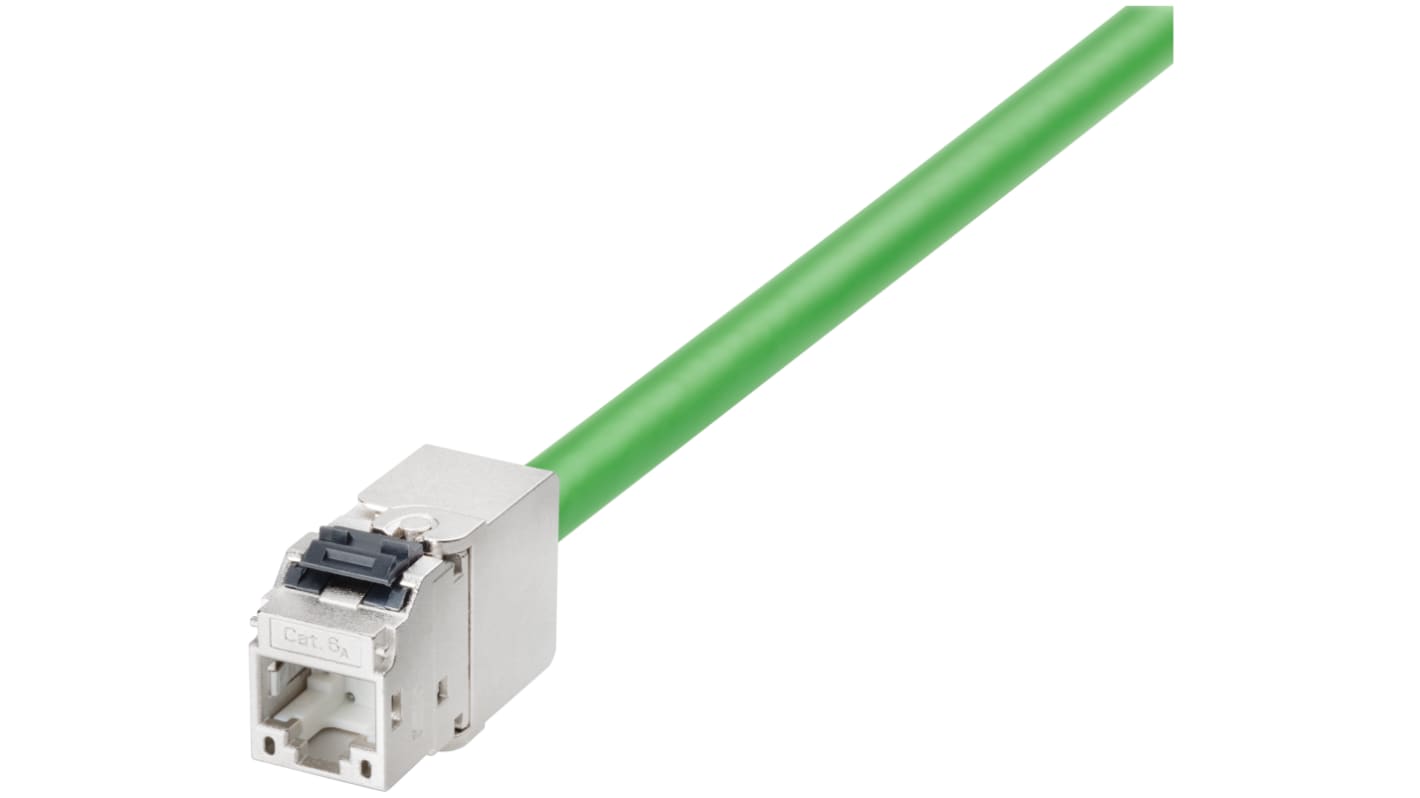

Siemens 6GK Series RJ45 Socket, 20mm Length, 2 Ports - 6GK1901-0BE10-0AA0

This RJ45 socket is a field-assembly connector designed for reliable and efficient networking. With a robust metal enclosure, it features two ports and supports the Cat6a Ethernet standard. The compact dimensions of 20mm in height, 14.7mm in width, and 36mm in depth ensure easy installation on DIN rail or within a 19 panel. Its straight orientation allows for efficient cable management, making it ideal for various industrial applications.

Features & Benefits

• Supports Industrial Ethernet at speeds of up to 10Gbit/s

• Integrated insulation displacement contacts for easy termination

• User-friendly FastConnect technology ensures quick assembly

• PoE and PoE+ capabilities enable versatile power options

• Metal enclosure provides durability in challenging environments

Applications

• Used for connecting 8-wire TP cables in automation systems

• Ideal for mounting within control cabinets and machinery

• Employed in industrial networking environments requiring quick assembly

• Utilised in 19 racks for efficient cable organisation

How does the socket perform in different environmental conditions?

It operates effectively across a wide temperature range of -40°C to +70°C and can withstand high humidity levels of up to 95% at 25°C, making it suitable for harsh environments.

What type of network connections can be made with this socket?

It provides connections for Industrial Ethernet FC TP cables as well as network components or terminal equipment, ensuring compatibility across various devices.

How many times can the connector be reused, and what does that mean for its lifecycle?

The design allows for up to ten reuses, promoting sustainability and cost efficiency in network installations by mitigating the need for frequent replacements.
