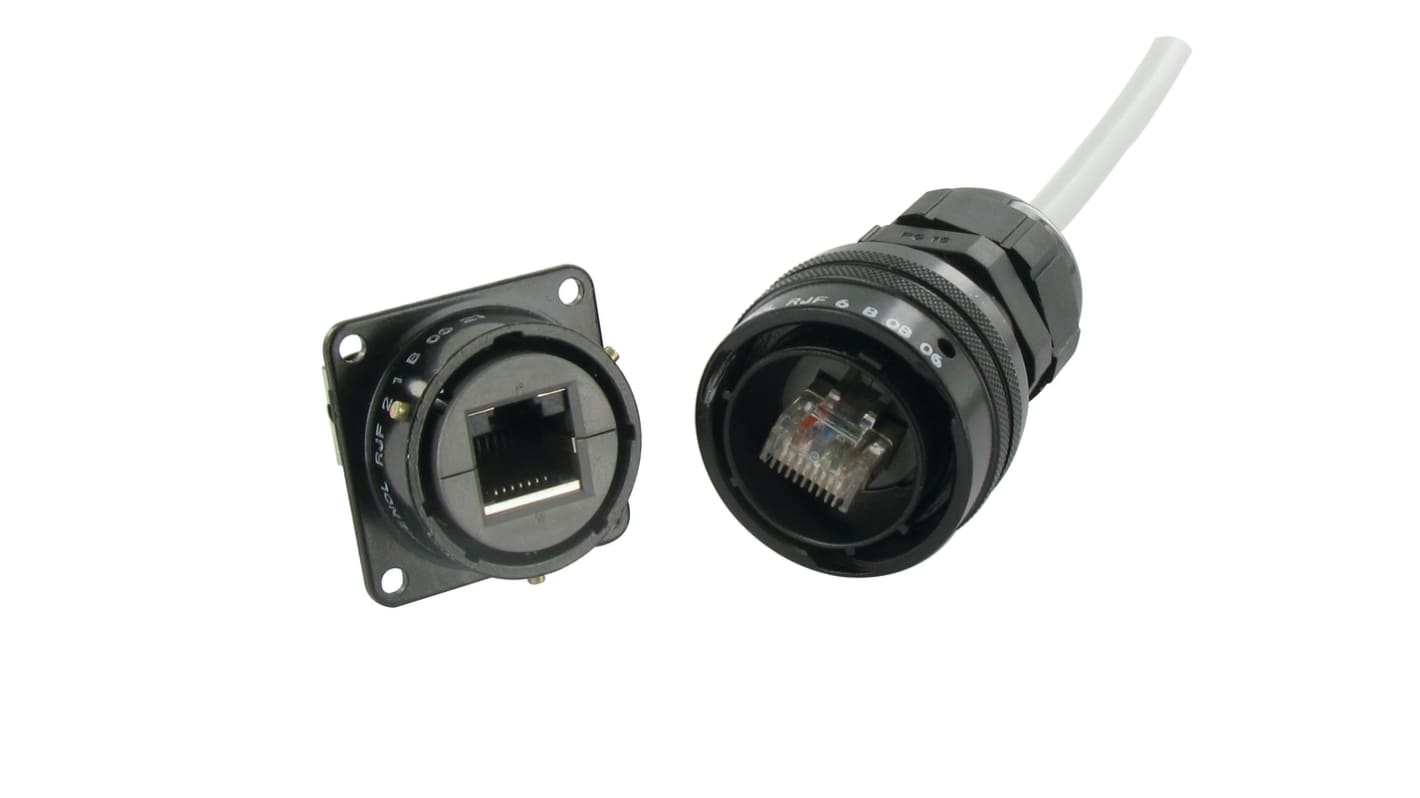

Amphenol Socapex RJF Series Ethernet Connector Female, Push Pull, Cat5e Straight 1 Port
- N° de stock RS:
- 254-6471
- Référence fabricant:
- RJF71RAZN
- Fabricant:
- Amphenol Socapex
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
110,25 €
(TVA exclue)
133,40 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 06 janvier 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 110,25 € |
| 10 - 24 | 105,73 € |
| 25 - 49 | 99,00 € |
| 50 - 99 | 96,80 € |
| 100 + | 92,28 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 254-6471
- Référence fabricant:
- RJF71RAZN
- Fabricant:
- Amphenol Socapex
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Amphenol Socapex | |
| Ethernet Connector Type | RJ45 | |
| Product Type | Ethernet Connector | |
| LAN Category | Cat5e | |
| Number of Ports | 1 | |
| Mount Type | Push Pull | |
| Connector Gender | Female | |
| Connector Type | Receptacle | |
| Magnetic | No | |
| Orientation | Straight | |
| IP Rating | IP67 | |
| LED | No | |
| Termination Type | Jam Nut | |
| Light Pipes | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | RoHS | |
| Width | 41.3mm | |
| Series | RJF | |
| Depth | 39.1mm | |
| Length | 41.3mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Amphenol Socapex | ||
Ethernet Connector Type RJ45 | ||
Product Type Ethernet Connector | ||
LAN Category Cat5e | ||
Number of Ports 1 | ||
Mount Type Push Pull | ||
Connector Gender Female | ||
Connector Type Receptacle | ||
Magnetic No | ||
Orientation Straight | ||
IP Rating IP67 | ||
LED No | ||
Termination Type Jam Nut | ||
Light Pipes No | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Hazardous Area Certification No | ||
Standards/Approvals RoHS | ||
Width 41.3mm | ||
Series RJF | ||
Depth 39.1mm | ||
Length 41.3mm | ||
- Pays d'origine :
- FR
The Amphenol Socapex modular connector or Ethernet connector with a female jack of USOC code RJ45. It has 1x1 configuration and 8 number of position and 8 number of contacts per port.
Operating temperature range is -40⁰C to +85⁰C
It has right mounting angle and panel mounting style
Number of port is 1
Termination style is snap cap
