Samtec SCRES Series Ethernet Connector Female/Female, Panel Mount, Cat5e Phosphor Bronze Shield Straight 1 Port
- N° de stock RS:
- 208-9154
- Référence fabricant:
- SCRES-G-00.50-D-C5E
- Fabricant:
- Samtec
Sous-total (1 unité)*
23,79 €
(TVA exclue)
28,79 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 9 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 23,79 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 208-9154
- Référence fabricant:
- SCRES-G-00.50-D-C5E
- Fabricant:
- Samtec
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Samtec | |
| Product Type | Ethernet Connector | |
| LAN Category | Cat5e | |
| Number of Ports | 1 | |
| Mount Type | Panel Mount | |
| Connector Type | Plug | |
| Connector Gender | Female/Female | |
| Shield Type | Phosphor Bronze | |
| Orientation | Straight | |
| IP Rating | IP68 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 75°C | |
| Series | SCRES | |
| Width | 48.45mm | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Length | 500mm | |
| Depth | 48.45mm | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Sélectionner tout | ||
|---|---|---|
Marque Samtec | ||
Product Type Ethernet Connector | ||
LAN Category Cat5e | ||
Number of Ports 1 | ||
Mount Type Panel Mount | ||
Connector Type Plug | ||
Connector Gender Female/Female | ||
Shield Type Phosphor Bronze | ||
Orientation Straight | ||
IP Rating IP68 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 75°C | ||
Series SCRES | ||
Width 48.45mm | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Length 500mm | ||
Depth 48.45mm | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||

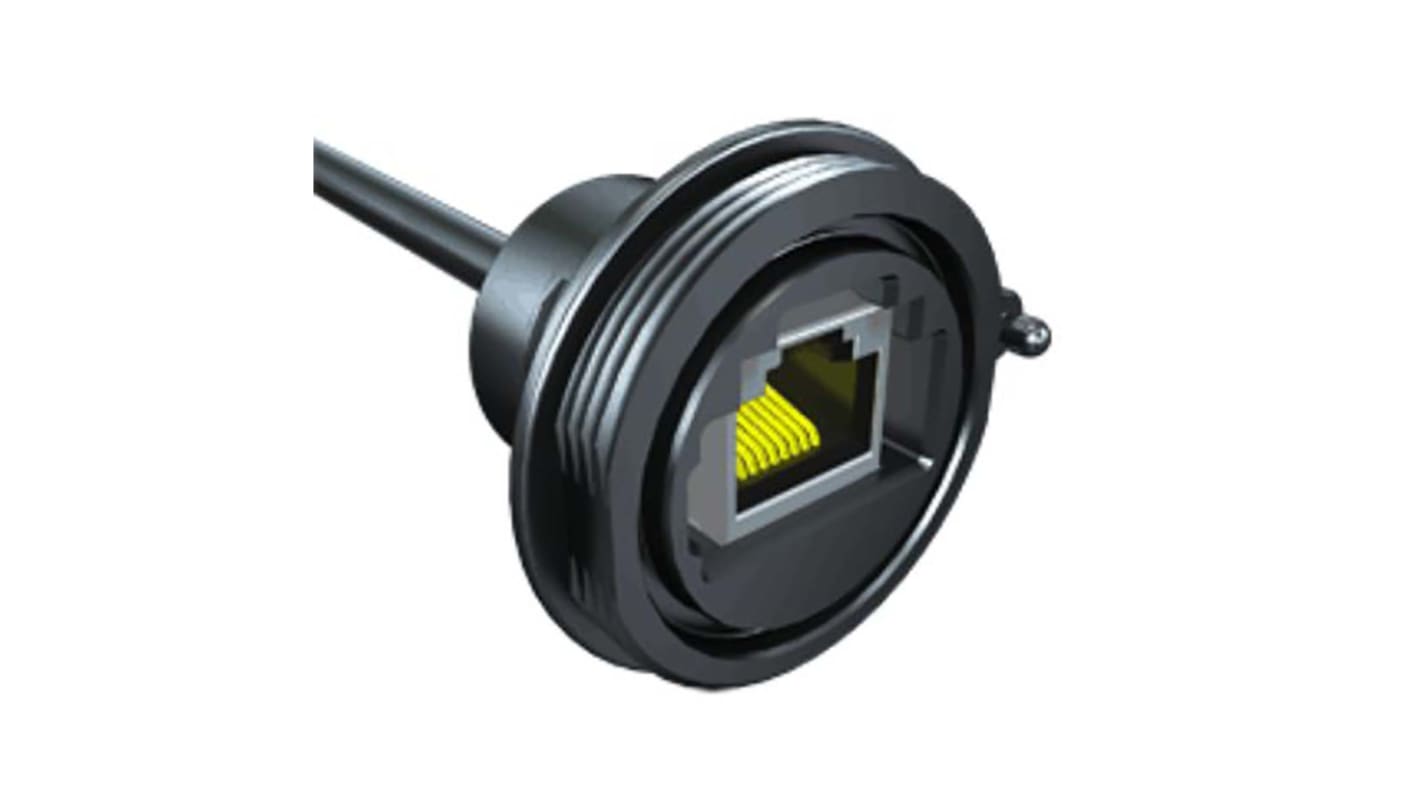

Samtec SCRES Series Ethernet Connector, IP68, Female to Female - SCRES-G-00.50-D-C5E
This IP68 Ethernet connector by Samtec provides a secure and reliable connection for outdoor and industrial applications. With a female-to-female configuration and Cat5e LAN category, this panel mount connector is designed for durability and performance. It features high-quality materials and expert engineering for a reliable connection solution.
Features & Benefits
• Female to female panel mount Ethernet connector
• IP68 rated for waterproof performance
• Cat5e LAN category for high traffic data transmission
• Secure locking mechanism for reliable connectivity
• Durable insulator and contact materials for long-lasting use
Applications
• Ideal for outdoor networking applications
• Can be used for high traffic data transmission environments
Can it be used for outdoor networking applications?
Yes, the Ethernet connector is ideal for outdoor networking with its IP68 waterproof rating.
Will it provide reliable connectivity in industrial automation systems?
Yes, it is designed for industrial use, ensuring secure connections in automation systems
Is it suitable for high traffic data transmission environments?
Yes, the Cat5e LAN category of the connector makes it ideal for high traffic data transmission scenarios.
Can it withstand harsh weather conditions?
Yes, the durable materials used in the connector construction make it suitable for use in harsh weather environments.
Will it require any additional protective measures for outdoor use?
No, the IP68 rating ensures the connector is fully waterproof and ready for outdoor installation without extra protection.
