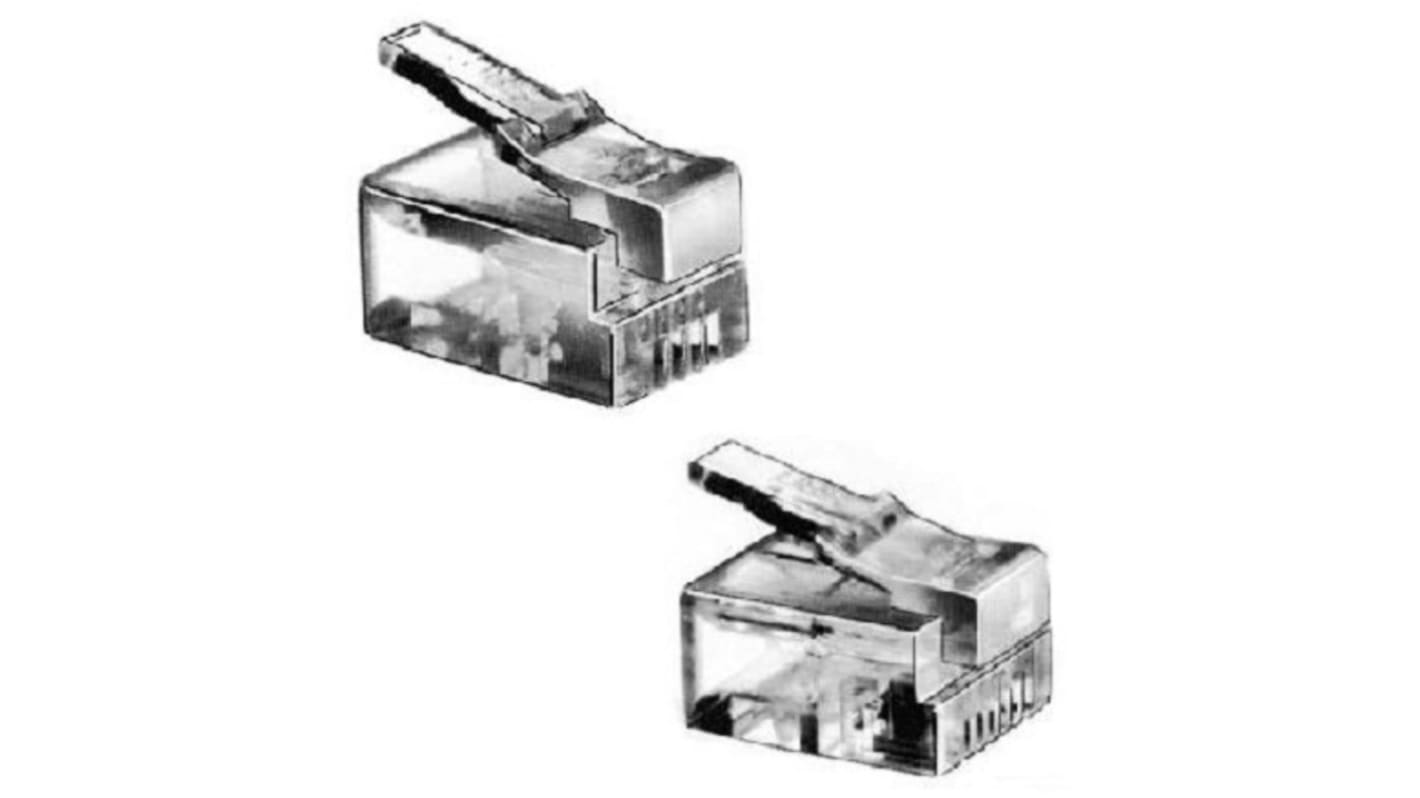

Hirose TM-P Series RJ11 Connector Male, Cable Unshielded Straight 1 Port 6 Way
- N° de stock RS:
- 184-6455
- Référence fabricant:
- TM3P-66P
- Fabricant:
- Hirose
Temporairement en rupture de stock
- N° de stock RS:
- 184-6455
- Référence fabricant:
- TM3P-66P
- Fabricant:
- Hirose
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Hirose | |
| Ethernet Connector Type | RJ11 | |
| Product Type | RJ11 Connector | |
| Mount Type | Cable | |
| Number of Ports | 1 | |
| Number of Ways | 6 | |
| Connector Gender | Male | |
| Connector Type | Plug | |
| Shield Type | Unshielded | |
| Orientation | Straight | |
| Termination Type | Piercing | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Series | TM-P | |
| Width | 14.5mm | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | No | |
| Length | 9.7mm | |
| Depth | 11mm | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Sélectionner tout | ||
|---|---|---|
Marque Hirose | ||
Ethernet Connector Type RJ11 | ||
Product Type RJ11 Connector | ||
Mount Type Cable | ||
Number of Ports 1 | ||
Number of Ways 6 | ||
Connector Gender Male | ||
Connector Type Plug | ||
Shield Type Unshielded | ||
Orientation Straight | ||
Termination Type Piercing | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Series TM-P | ||
Width 14.5mm | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification No | ||
Length 9.7mm | ||
Depth 11mm | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
- Pays d'origine :
- JP
Modular Plug for copper foil, stranded wire flat type cable
