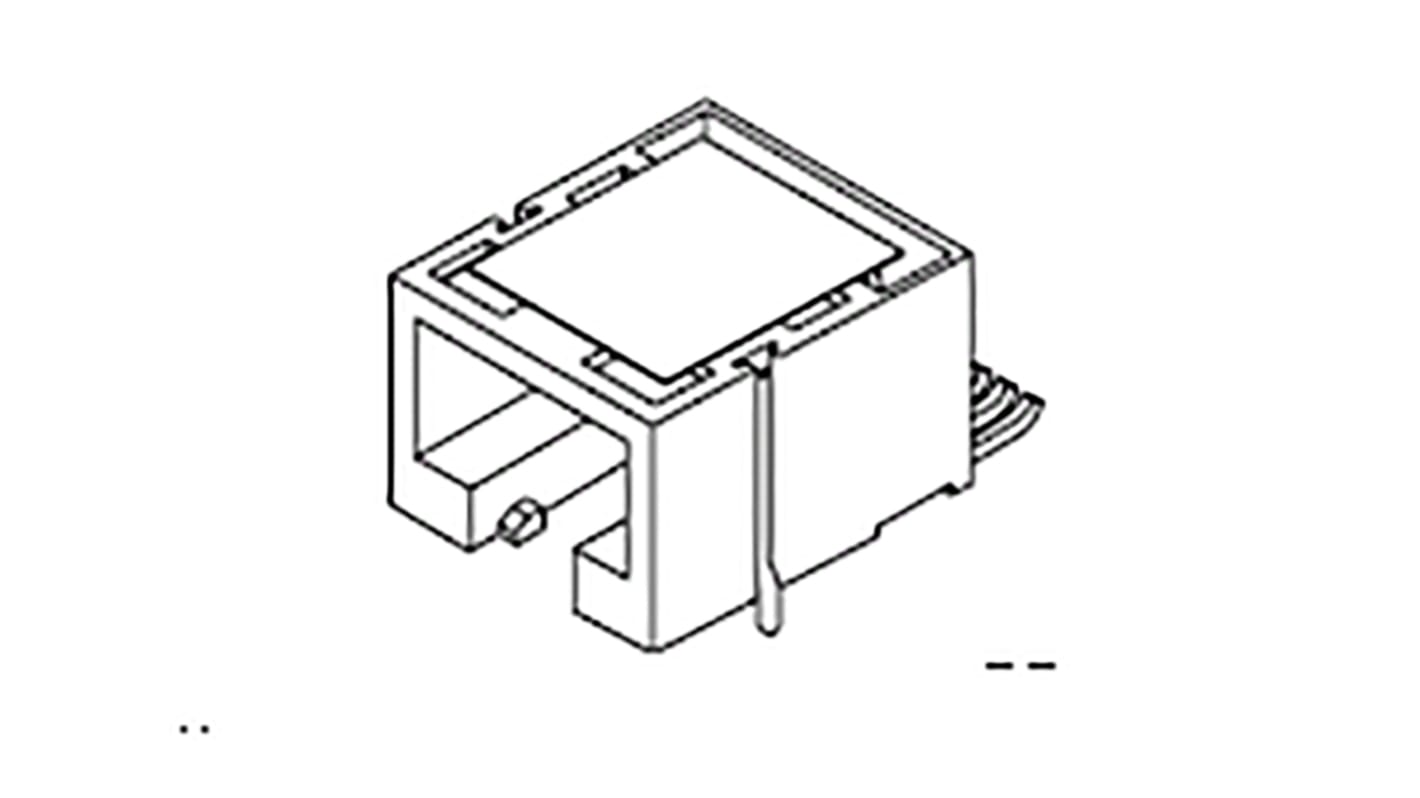

Molex 85502 Series RJ45 Connector Female, Surface, Cat3 Unshielded Right Angle 1 Port 8 Way
- N° de stock RS:
- 178-9402
- Référence fabricant:
- 85502-5012
- Fabricant:
- Molex
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 paquet de 5 unités)*
12,42 €
(TVA exclue)
15,03 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 15 février 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 5 - 20 | 2,484 € | 12,42 € |
| 25 - 45 | 2,284 € | 11,42 € |
| 50 - 120 | 2,196 € | 10,98 € |
| 125 - 495 | 2,108 € | 10,54 € |
| 500 + | 1,988 € | 9,94 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 178-9402
- Référence fabricant:
- 85502-5012
- Fabricant:
- Molex
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Molex | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat3 | |
| Mount Type | Surface | |
| Number of Ports | 1 | |
| Number of Ways | 8 | |
| Connector Gender | Female | |
| Connector Type | Modular Jack | |
| Shield Type | Unshielded | |
| Orientation | Right Angle | |
| Magnetic | No | |
| LED | No | |
| Termination Type | Solder | |
| Light Pipes | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 15.24mm | |
| Depth | 18.1mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | IEC 60603-7 RoHS Compliant, TIA-1096-A | |
| Series | 85502 | |
| Width | 11.5mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel Palladium | |
| Sélectionner tout | ||
|---|---|---|
Marque Molex | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat3 | ||
Mount Type Surface | ||
Number of Ports 1 | ||
Number of Ways 8 | ||
Connector Gender Female | ||
Connector Type Modular Jack | ||
Shield Type Unshielded | ||
Orientation Right Angle | ||
Magnetic No | ||
LED No | ||
Termination Type Solder | ||
Light Pipes No | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 15.24mm | ||
Depth 18.1mm | ||
Hazardous Area Certification No | ||
Standards/Approvals IEC 60603-7 RoHS Compliant, TIA-1096-A | ||
Series 85502 | ||
Width 11.5mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel Palladium | ||
Modular Jack, Right-Angle, Surface Mount, 8/8, Low Profile, Pin-in-Hole-Reflow, Tape & Reel
