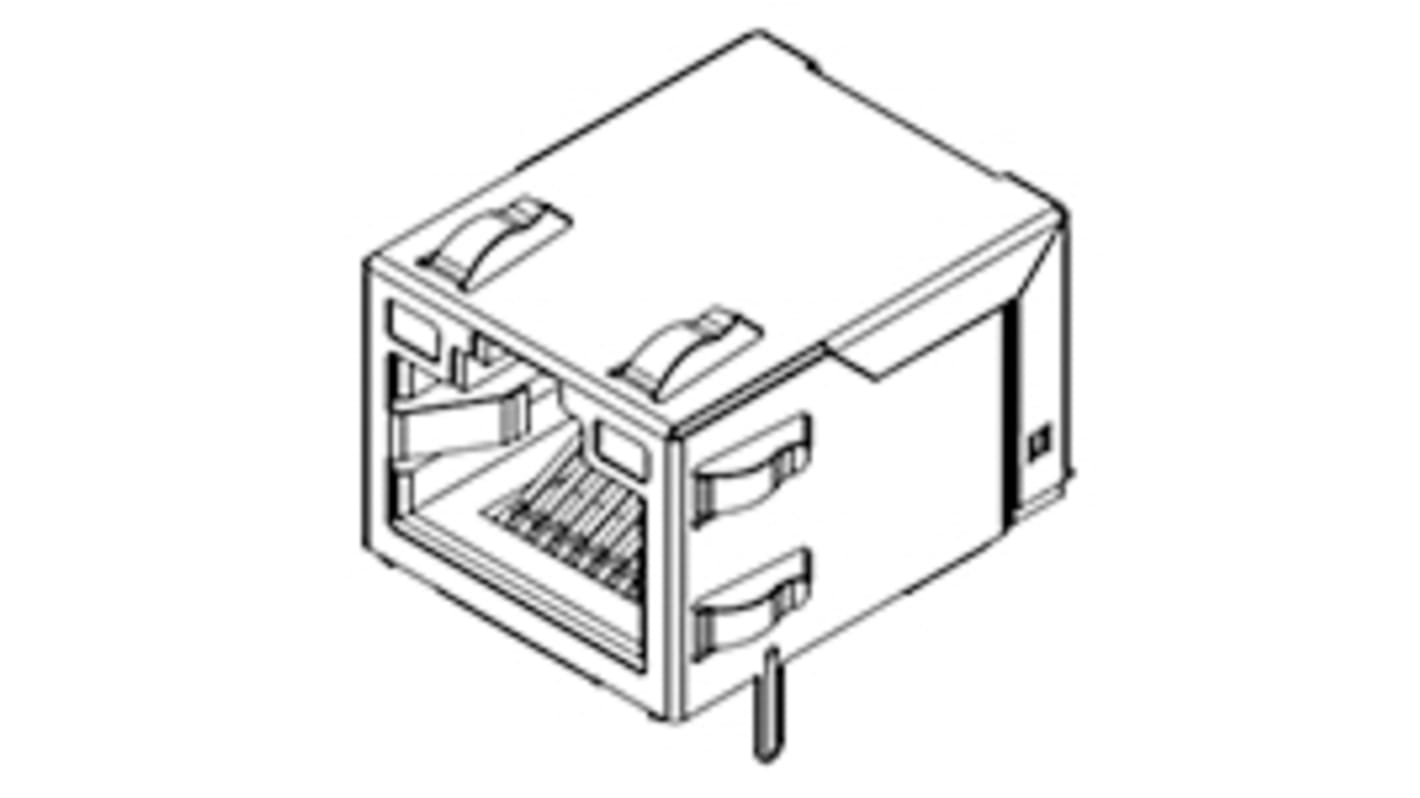

Molex 48074 Series RJ45 Connector Female, Surface Mount, Cat5, Cat5e Shielded Right Angle 1 Port 8 Way
- N° de stock RS:
- 178-9299
- Référence fabricant:
- 48074-9101
- Fabricant:
- Molex
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 bobine de 100 unités)*
1 146,80 €
(TVA exclue)
1 387,60 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 22 février 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | la bobine* |
|---|---|---|
| 100 - 400 | 11,468 € | 1 146,80 € |
| 500 - 900 | 11,147 € | 1 114,70 € |
| 1000 - 2400 | 10,849 € | 1 084,90 € |
| 2500 - 4900 | 10,562 € | 1 056,20 € |
| 5000 + | 10,287 € | 1 028,70 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 178-9299
- Référence fabricant:
- 48074-9101
- Fabricant:
- Molex
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Molex | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat5, Cat5e | |
| Number of Ports | 1 | |
| Mount Type | Surface Mount | |
| Number of Ways | 8 | |
| Connector Type | Modular Jack | |
| Connector Gender | Female | |
| Shield Type | Shielded | |
| Orientation | Right Angle | |
| Magnetic | Yes | |
| LED | Yes | |
| Light Pipes | No | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 13.3mm | |
| Depth | 20.5mm | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Series | 48074 | |
| Length | 16.2mm | |
| Contact Material | Phosphor Bronze, Brass | |
| Contact Plating | Gold, Tin | |
| Sélectionner tout | ||
|---|---|---|
Marque Molex | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat5, Cat5e | ||
Number of Ports 1 | ||
Mount Type Surface Mount | ||
Number of Ways 8 | ||
Connector Type Modular Jack | ||
Connector Gender Female | ||
Shield Type Shielded | ||
Orientation Right Angle | ||
Magnetic Yes | ||
LED Yes | ||
Light Pipes No | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 13.3mm | ||
Depth 20.5mm | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Series 48074 | ||
Length 16.2mm | ||
Contact Material Phosphor Bronze, Brass | ||
Contact Plating Gold, Tin | ||
- Pays d'origine :
- CN
Modular Jack, Right-Angle, Surface Mount, with Integrated Magnetics and LED, with all Panel Grounding Tabs, 8/8, Lead-Free
