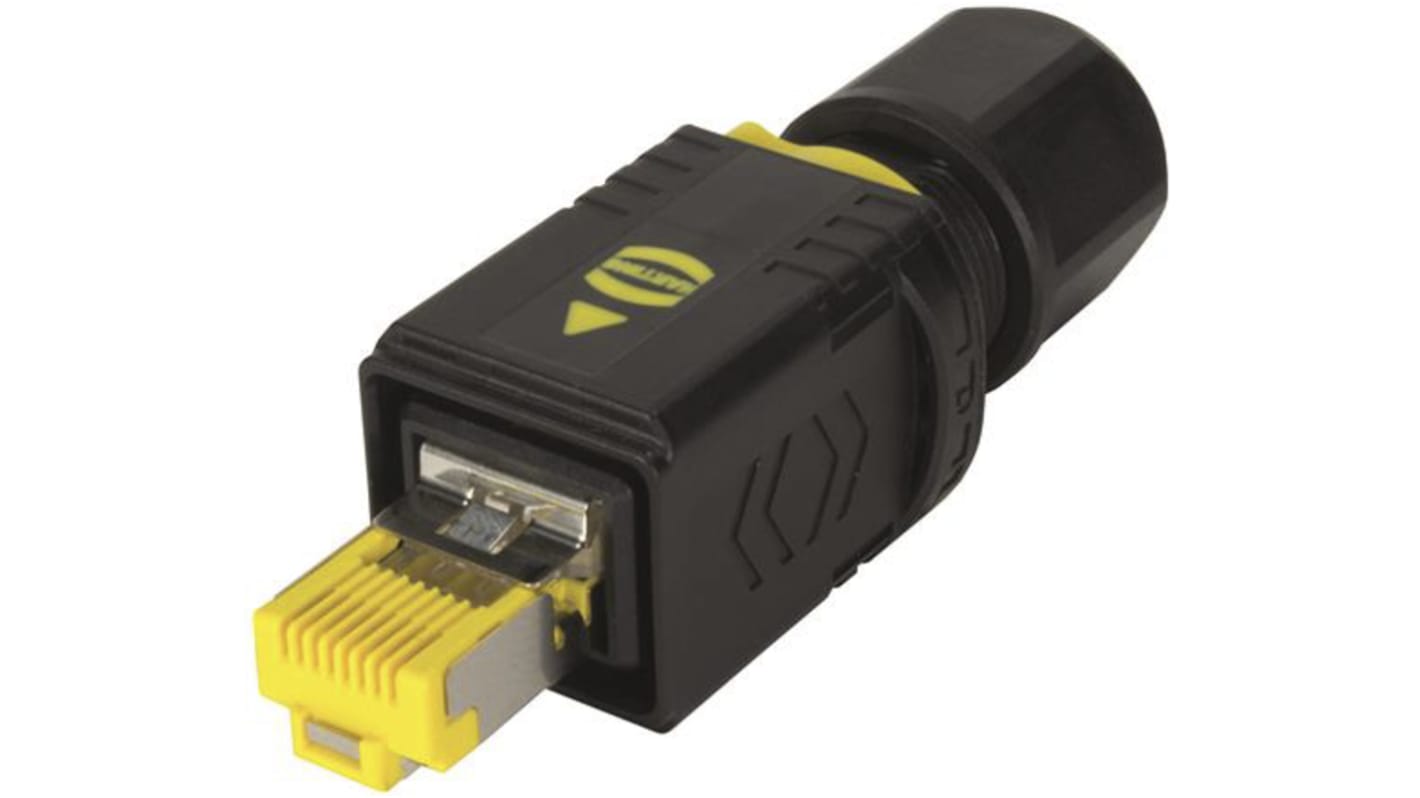

HARTING PushPull V4 Series RJ45 Connector Male, Cable, Cat6 360° Shielded Straight 8 Port 1 Way
- N° de stock RS:
- 173-9623
- Numéro d'article Distrelec:
- 301-18-374
- Référence fabricant:
- 09451451561
- Fabricant:
- HARTING
Bénéficiez d'une remise sur les achats en gros
Ajoutez 5 de plus pour économiser 14,40 €
Consulter les options de prix de grosSous-total (1 unité)*
29,35 €
(TVA exclue)
35,51 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 57 unité(s) expédiée(s) à partir du 09 novembre 2026
- Plus 44 unité(s) expédiée(s) à partir du 09 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | Économie |
|---|---|---|
| 1 - 4 | 29,35 € | - |
| 5 - 24 | 26,47 € | 14,40 € |
| 25 - 49 | 24,73 € | 115,50 € |
| 50 - 99 | 23,50 € | 292,50 € |
| 100 + | 22,86 € | 649,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 173-9623
- Numéro d'article Distrelec:
- 301-18-374
- Référence fabricant:
- 09451451561
- Fabricant:
- HARTING
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | HARTING | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat6 | |
| Number of Ports | 8 | |
| Mount Type | Cable | |
| Number of Ways | 1 | |
| Connector Type | Plug | |
| Connector Gender | Male | |
| Shield Type | 360° Shielded | |
| Orientation | Straight | |
| IP Rating | IP65, IP67 | |
| Termination Type | IDC | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Series | PushPull V4 | |
| Standards/Approvals | No | |
| Width | 70mm | |
| Hazardous Area Certification | No | |
| Length | 24mm | |
| Depth | 20.5mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Sélectionner tout | ||
|---|---|---|
Marque HARTING | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat6 | ||
Number of Ports 8 | ||
Mount Type Cable | ||
Number of Ways 1 | ||
Connector Type Plug | ||
Connector Gender Male | ||
Shield Type 360° Shielded | ||
Orientation Straight | ||
IP Rating IP65, IP67 | ||
Termination Type IDC | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Series PushPull V4 | ||
Standards/Approvals No | ||
Width 70mm | ||
Hazardous Area Certification No | ||
Length 24mm | ||
Depth 20.5mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
- Pays d'origine :
- RO
Harting Push Pull V4 Series RJ45 Connector, Cat6 LAN Category, IP65, IP67 - 9451451561
This RJ45 connector is a cable-mounted Ethernet plug designed for industrial and automation environments. It provides a secure straight male connection for Cat6 networks while offering robust environmental protection suitable for outdoor and harsh indoor installations.
Features & Benefits
• IP65 and IP67 ratings ensure protection against dust and water ingress
• Gold-over-nickel contacts provide improved signal conductivity
• 360° shielding reduces electromagnetic interference for stable links
• IDC termination simplifies installation without soldering
• Operates from -40°C to 70°C for wide-temperature applications
• Eight-position configuration supports standard Cat6 wiring
• Gold-over-nickel contacts provide improved signal conductivity
• 360° shielding reduces electromagnetic interference for stable links
• IDC termination simplifies installation without soldering
• Operates from -40°C to 70°C for wide-temperature applications
• Eight-position configuration supports standard Cat6 wiring
**Applications**
• Suitable for factory automation Ethernet links requiring waterproofing
• Ideal for industrial control cabinets with space-constrained cable routes
• Used with fieldbus and PoE devices in wet or dusty locations
• Can be used for machine-to-machine Cat6 data connections
• Used for outdoor network nodes needing Durable RJ45 interfaces
• Ideal for industrial control cabinets with space-constrained cable routes
• Used with fieldbus and PoE devices in wet or dusty locations
• Can be used for machine-to-machine Cat6 data connections
• Used for outdoor network nodes needing Durable RJ45 interfaces
How is the connector mounted to cables?
It uses an IDC termination method that secures conductors without soldering, enabling Faster assembly on site.
What shielding performance can I expect in noisy environments?
The connector provides full 360° shielded coverage to maintain signal integrity in electrically noisy installations.
What operating temperatures are supported for continuous use?
It is rated to function across a temperature range from -40°C up to 70°C for varied industrial climates.
Does the design suit Power over Ethernet applications?
The eight-position Cat6 configuration accommodates PoE delivery while maintaining data transmission performance.
What physical orientation does the plug use when installed?
The device is a straight male plug intended for in-line cable mounting in typical Ethernet runs.
