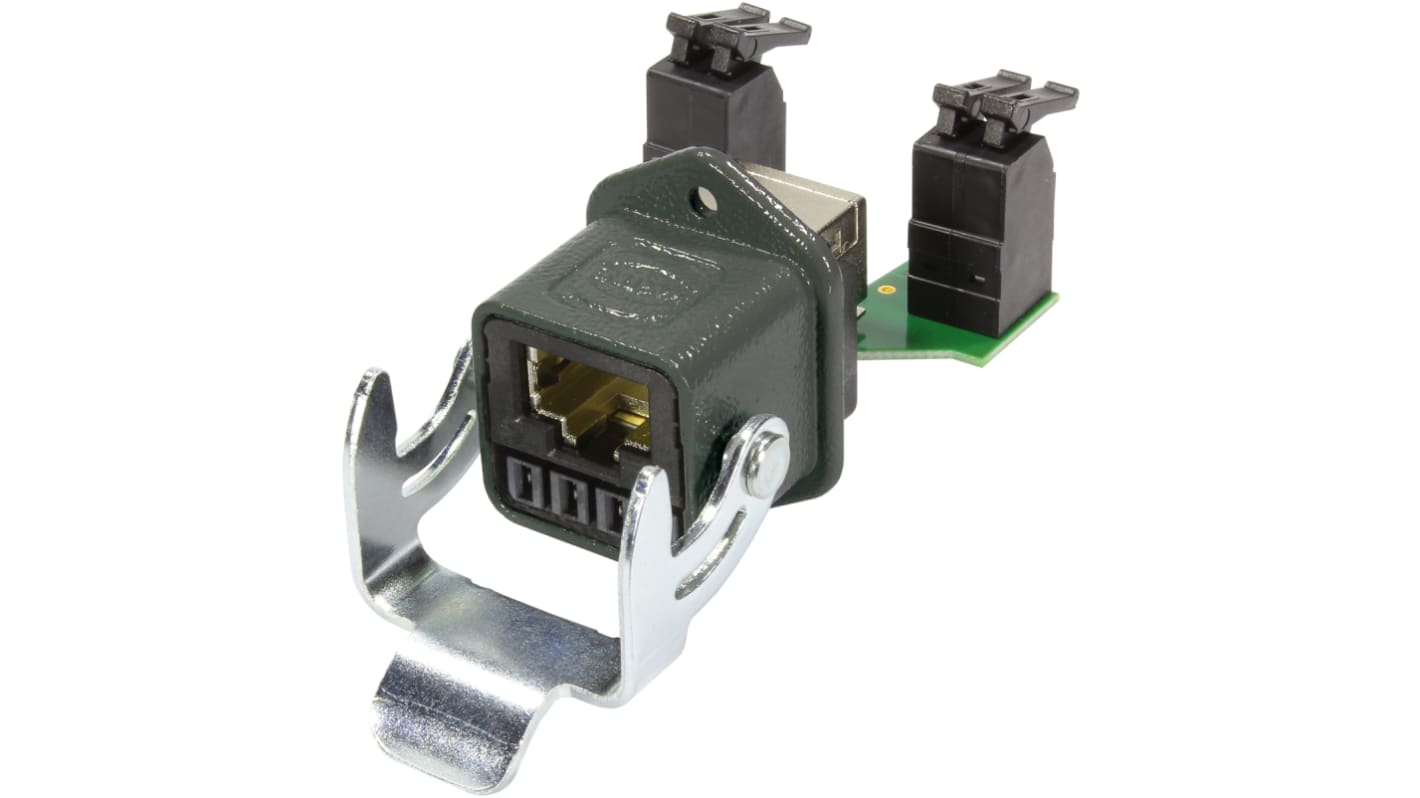

HARTING 09452 Series RJ45 Connector Female, Panel Mount, Cat6 Shielded Straight 4 Port 8 Way
- N° de stock RS:
- 136-8807
- Référence fabricant:
- 09452151762
- Fabricant:
- HARTING
Offre groupée disponible
Sous-total (1 unité)*
132,42 €
(TVA exclue)
160,23 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 01 juillet 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 132,42 € |
| 5 - 9 | 126,71 € |
| 10 - 19 | 119,84 € |
| 20 - 24 | 113,62 € |
| 25 + | 109,76 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 136-8807
- Référence fabricant:
- 09452151762
- Fabricant:
- HARTING
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | HARTING | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat6 | |
| Mount Type | Panel Mount | |
| Number of Ports | 4 | |
| Number of Ways | 8 | |
| Connector Type | Jack | |
| Connector Gender | Female | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| IP Rating | IP65, IP67 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 57.2mm | |
| Depth | 40mm | |
| Series | 09452 | |
| Width | 42mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | No | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Sélectionner tout | ||
|---|---|---|
Marque HARTING | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat6 | ||
Mount Type Panel Mount | ||
Number of Ports 4 | ||
Number of Ways 8 | ||
Connector Type Jack | ||
Connector Gender Female | ||
Shield Type Shielded | ||
Orientation Straight | ||
IP Rating IP65, IP67 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Length 57.2mm | ||
Depth 40mm | ||
Series 09452 | ||
Width 42mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals No | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Harting Han® 3A Cat 6 RJ45 Hybrid Panel Feed Through Sockets
From Harting, a range of Cat6a Hybrid panel feed through sets for Ethernet communication and power supply. The RJ45 bulkheads have 8 + 4 contacts, 2 x 4 for Ethernet and 4x for power. Transmission rates of 10/100 Mbps 1 Gbit/s for Ethernet and 48 V up to 16A for power make these Hybrid bulkheads ideal for industrial field applications. The robust housings are constructed from UL94 V0 plastic or diecast zinc and have an ingress protection rating of IP65/67. Compact in design and with a simple lever locking mechanism the Han® 3A Hybrid bulkheads are compatible with standard patch cables supporting service and test applications. Connectors are shielded to 360° and have a 500 min mating cycles. All models are highly reliable and excellent quality.
Features & Benefits
IP65/67 ingress protection;-40°C to + 70°C;360° Shielding;Field assembly – IDC technology;Solid and stranded wire;Cat6a performance class;Robust UL 94 V0 or diecast zinc housings;Compact design;Simple, secure single lever locking mechanism
Applications
Industrial Ethernet;Automation;IT;Data Centres
