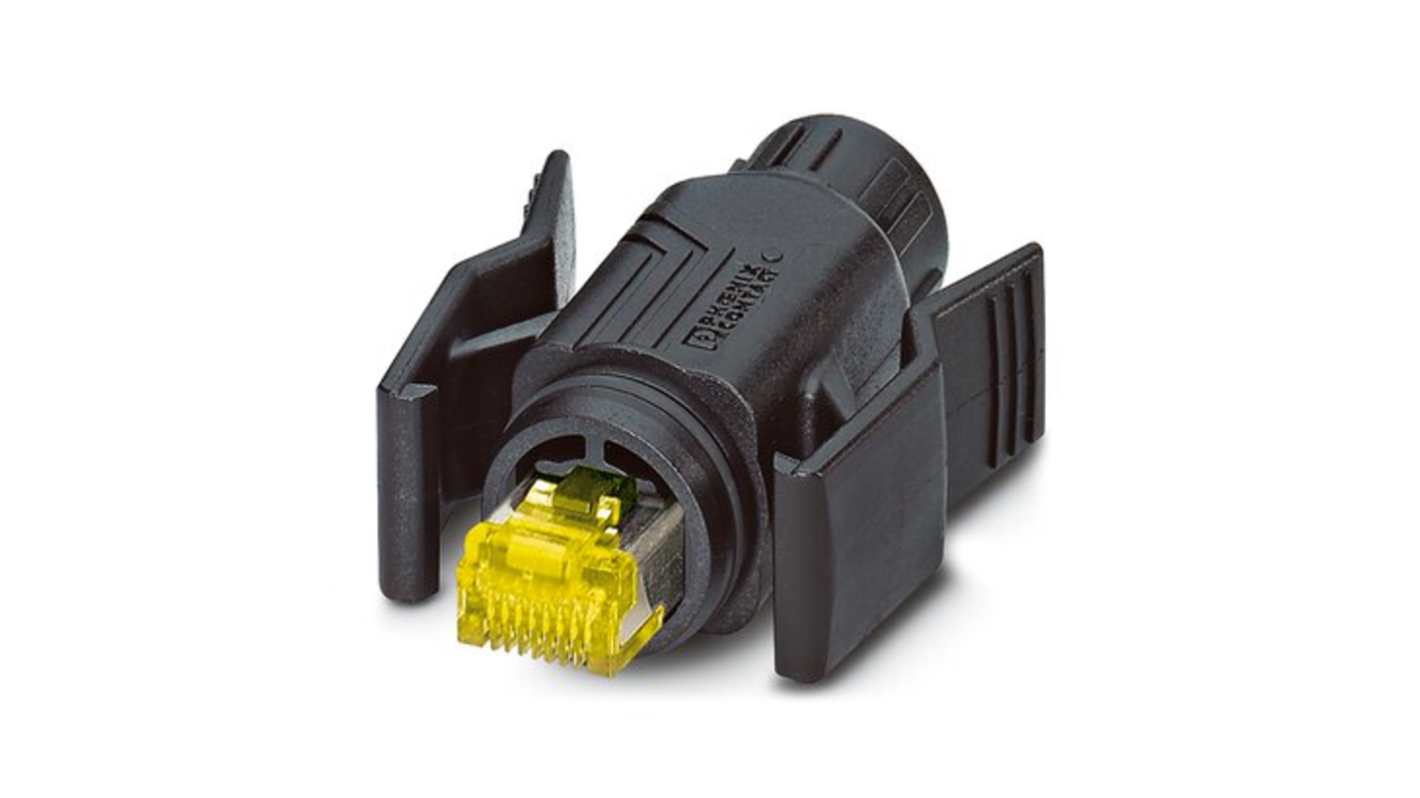

Phoenix Contact CUC Series RJ45 Connector Male, Cable, Cat6a Unshielded Straight 1 Port 8 Way
- N° de stock RS:
- 270-244
- Référence fabricant:
- 1414410
- Fabricant:
- Phoenix Contact
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
13,30 €
(TVA exclue)
16,09 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 12 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 13,30 € |
| 10 + | 12,24 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 270-244
- Référence fabricant:
- 1414410
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat6a | |
| Mount Type | Cable | |
| Number of Ports | 1 | |
| Number of Ways | 8 | |
| Connector Gender | Male | |
| Connector Type | RJ45 | |
| Shield Type | Unshielded | |
| Orientation | Straight | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Series | CUC | |
| Depth | 53mm | |
| Width | 38.4mm | |
| Length | 19.9mm | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | No | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat6a | ||
Mount Type Cable | ||
Number of Ports 1 | ||
Number of Ways 8 | ||
Connector Gender Male | ||
Connector Type RJ45 | ||
Shield Type Unshielded | ||
Orientation Straight | ||
IP Rating IP67 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Series CUC | ||
Depth 53mm | ||
Width 38.4mm | ||
Length 19.9mm | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification No | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
- Pays d'origine :
- DE
The Phoenix Contact RJ45 connector is designed to deliver high-speed connectivity with exceptional durability, making it an ideal choice for Ethernet and PROFINET applications. Featuring a robust construction, it ensures reliable performance even in demanding environments, thanks to its IP67 protection rating. The connector supports transmission speeds of up to 10 Gbps and is compatible with CAT6 standards, ensuring optimal data flow.
Effective for both high speed data transmission and robust performance
Environmentally compliant fulfilling EU RoHS and REACH substance requirements
Compact dimensions allow for seamless integration into tight spaces
