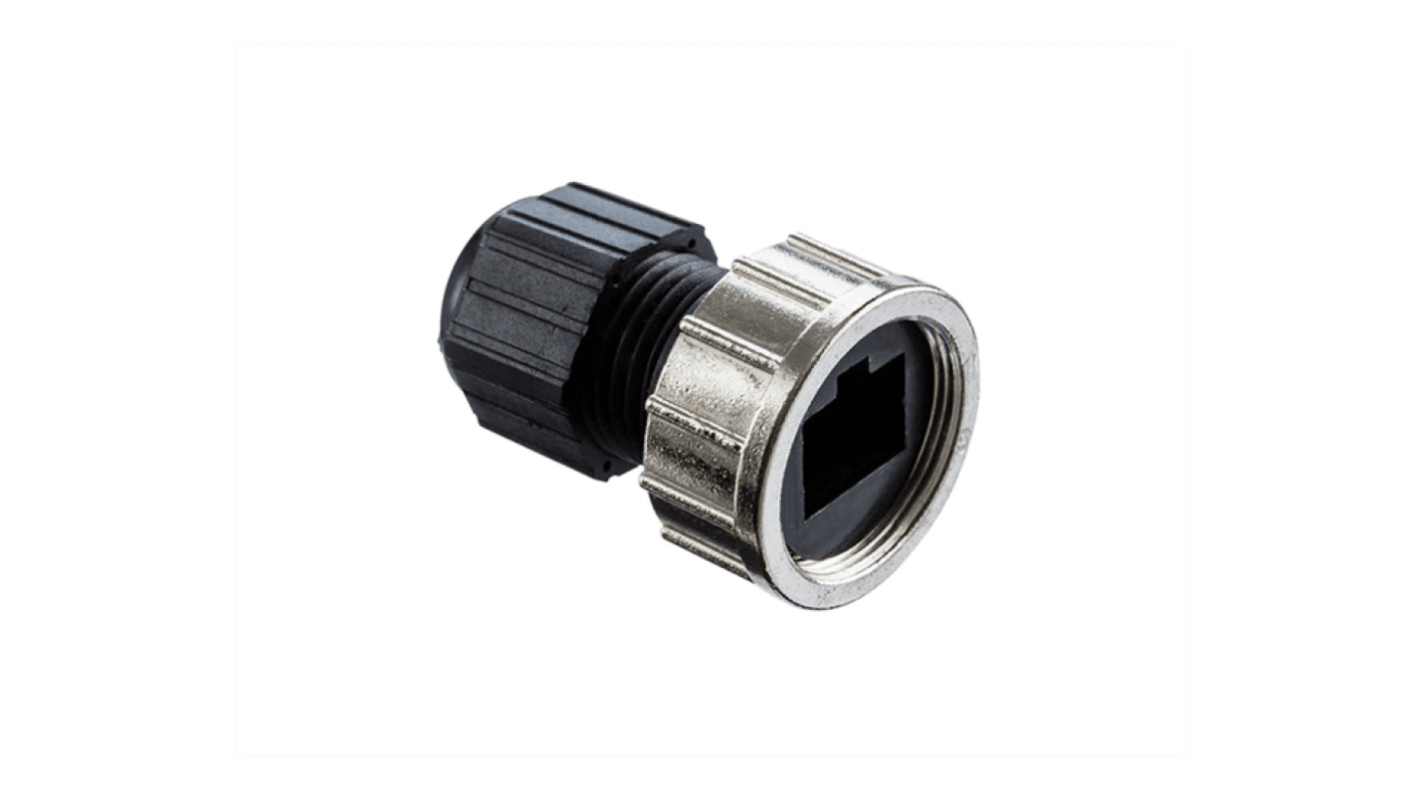

Amphenol Industrial RCM Series RJ45 Connector Female, Threaded Mount Unshielded Straight 1 Port 1 Way
- N° de stock RS:
- 193-091
- Numéro d'article Distrelec:
- 304-11-020
- Référence fabricant:
- RCM-00BMMA-SLM7001
- Fabricant:
- Amphenol Industrial
Actuellement indisponible
Désolés, nous ne savons pas quand ce produit sera réapprovisionné.
- N° de stock RS:
- 193-091
- Numéro d'article Distrelec:
- 304-11-020
- Référence fabricant:
- RCM-00BMMA-SLM7001
- Fabricant:
- Amphenol Industrial
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Amphenol Industrial | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| Mount Type | Threaded Mount | |
| Number of Ports | 1 | |
| Number of Ways | 1 | |
| Connector Type | RJ45 | |
| Connector Gender | Female | |
| Shield Type | Unshielded | |
| Magnetic | No | |
| Orientation | Straight | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Wire | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Width | 18.5mm | |
| Length | 28.1mm | |
| Series | RCM | |
| Depth | 28.1mm | |
| Hazardous Area Certification | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Amphenol Industrial | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
Mount Type Threaded Mount | ||
Number of Ports 1 | ||
Number of Ways 1 | ||
Connector Type RJ45 | ||
Connector Gender Female | ||
Shield Type Unshielded | ||
Magnetic No | ||
Orientation Straight | ||
IP Rating IP67 | ||
Minimum Operating Temperature -40°C | ||
Termination Type Wire | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Width 18.5mm | ||
Length 28.1mm | ||
Series RCM | ||
Depth 28.1mm | ||
Hazardous Area Certification No | ||
- Pays d'origine :
- CN
The Amphenol RJ Middle Size Metal Connector is designed for high performance connectivity in industrial and commercial applications. Rated for 1.5A, it features a straight configuration with a thermoplastic mated housing in black, ensuring durability and impact resistance. The rubber gasket and seal provide excellent sealing performance, while the zinc alloy screw nut is nickel plated for enhanced corrosion resistance. The sealing nut is made of black thermoplastic for additional durability.
IP67 waterproof rated
