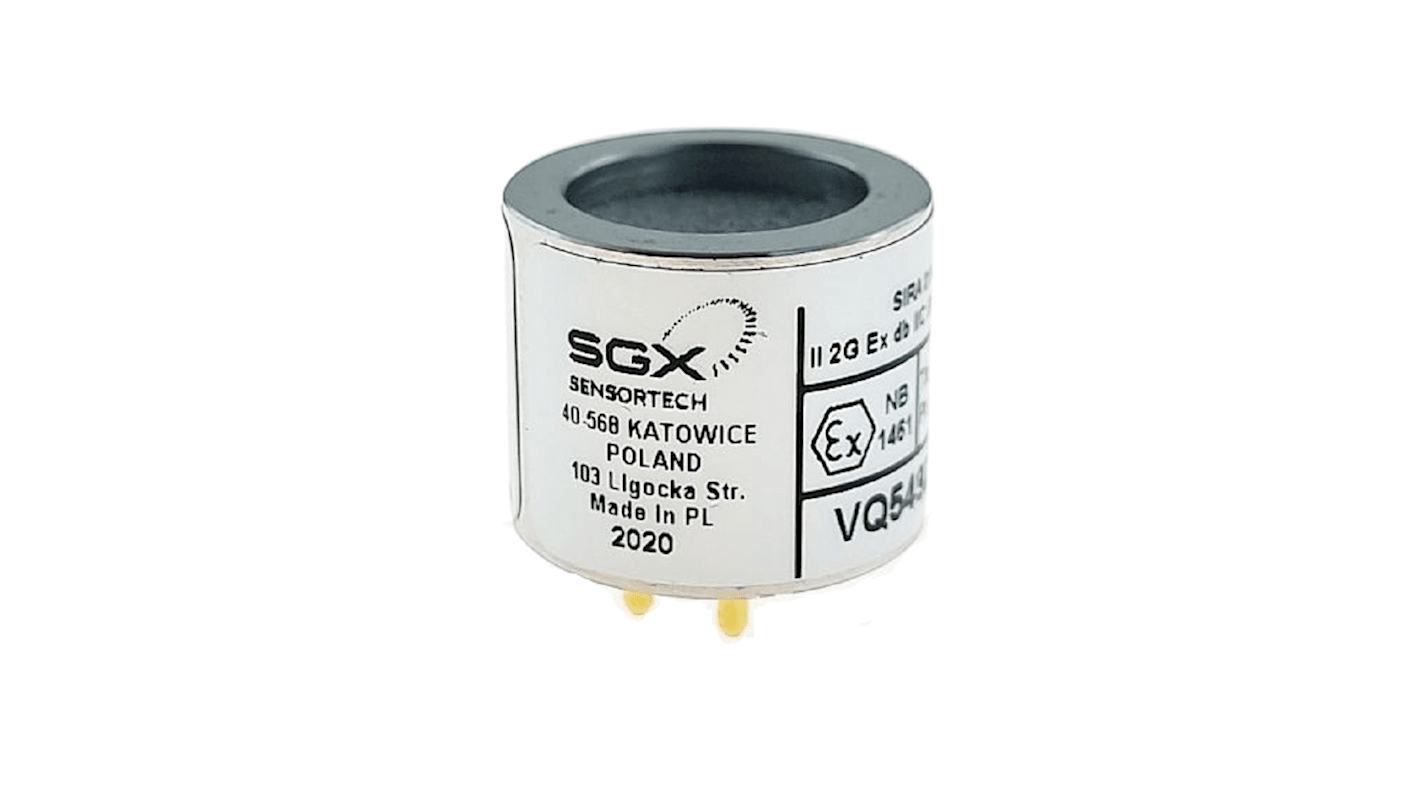

Name: SGX Sensors Methane Gas Sensor for Portable Gas Detectors
Brand: SGX Sensors
SKU: 254-1623
Price: 94.89 EUR
Availability: InStock

Unité

sélectionner ou taper la quantité

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	SGX Sensors
	Gases Detected	Methane
	Product Type	Gas Sensor
	Response Time	20s
	Application	Portable Gas Detectors
	Mount Type	PCB
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	55°C
	Standards/Approvals	RoHS
	Series	VQ546
	Automotive Standard	No

	Sélectionner tout
	Marque SGX Sensors
	Gases Detected Methane
	Product Type Gas Sensor
	Response Time 20s
	Application Portable Gas Detectors
	Mount Type PCB
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 55°C
	Standards/Approvals RoHS
	Series VQ546
	Automotive Standard No

The SGX Sensors VQ500 Series is a complete range of miniature, fully certified, flameproof sensor heads containing a high quality, low power pellistor pair optimised for the detection of combustible gases or % volume gases in thermal conductivity mode. They have an outline identical to modern miniature electrochemical cells and are ideally suited for use in portable instruments. Within the VQ500 Series there are specific sensors that are able to detect most combustible gases and vapours and ammonia at LEL levels. The thermal conductivity version will detect most gases at % volume concentrations which have thermal conductivities different from that of air.

Optimised for combustible gases and vapours

Thermal conductivity versions available

Certified explosion proof component

Integral pellistors

Low power

Standard miniature body size

Poison resistant – silicones and hydrogen sulfide

Shock resistant, ATEX certified, IECEx certified, CSA certified

UL recognised

Temperature rated between -40°C and +55°C

SGX Sensors Methane Gas Sensor for Portable Gas Detectors
