Sensirion Particle Matter/Dust Air Quality Sensor for Air Quality Monitors
- N° de stock RS:
- 240-9019
- Référence fabricant:
- SEN50-SDN-T
- Fabricant:
- Sensirion
Offre groupée disponible
Sous-total (1 plateau de 45 unités)*
718,92 €
(TVA exclue)
869,895 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- Plus 225 unité(s) expédiée(s) à partir du 23 mars 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le plateau* |
|---|---|---|
| 45 - 45 | 15,976 € | 718,92 € |
| 90 - 180 | 15,556 € | 700,02 € |
| 225 - 405 | 15,157 € | 682,07 € |
| 450 + | 14,778 € | 665,01 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 240-9019
- Référence fabricant:
- SEN50-SDN-T
- Fabricant:
- Sensirion
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Sensirion | |
| Product Type | Air Quality Sensor | |
| Gases Detected | Particle Matter/Dust | |
| Accuracy | ±0.45°C | |
| Response Time | 30μs | |
| Application | Air Quality Monitors | |
| Minimum Supply Voltage | 4.5V | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Sensirion | ||
Product Type Air Quality Sensor | ||
Gases Detected Particle Matter/Dust | ||
Accuracy ±0.45°C | ||
Response Time 30μs | ||
Application Air Quality Monitors | ||
Minimum Supply Voltage 4.5V | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- Pays d'origine :
- CN

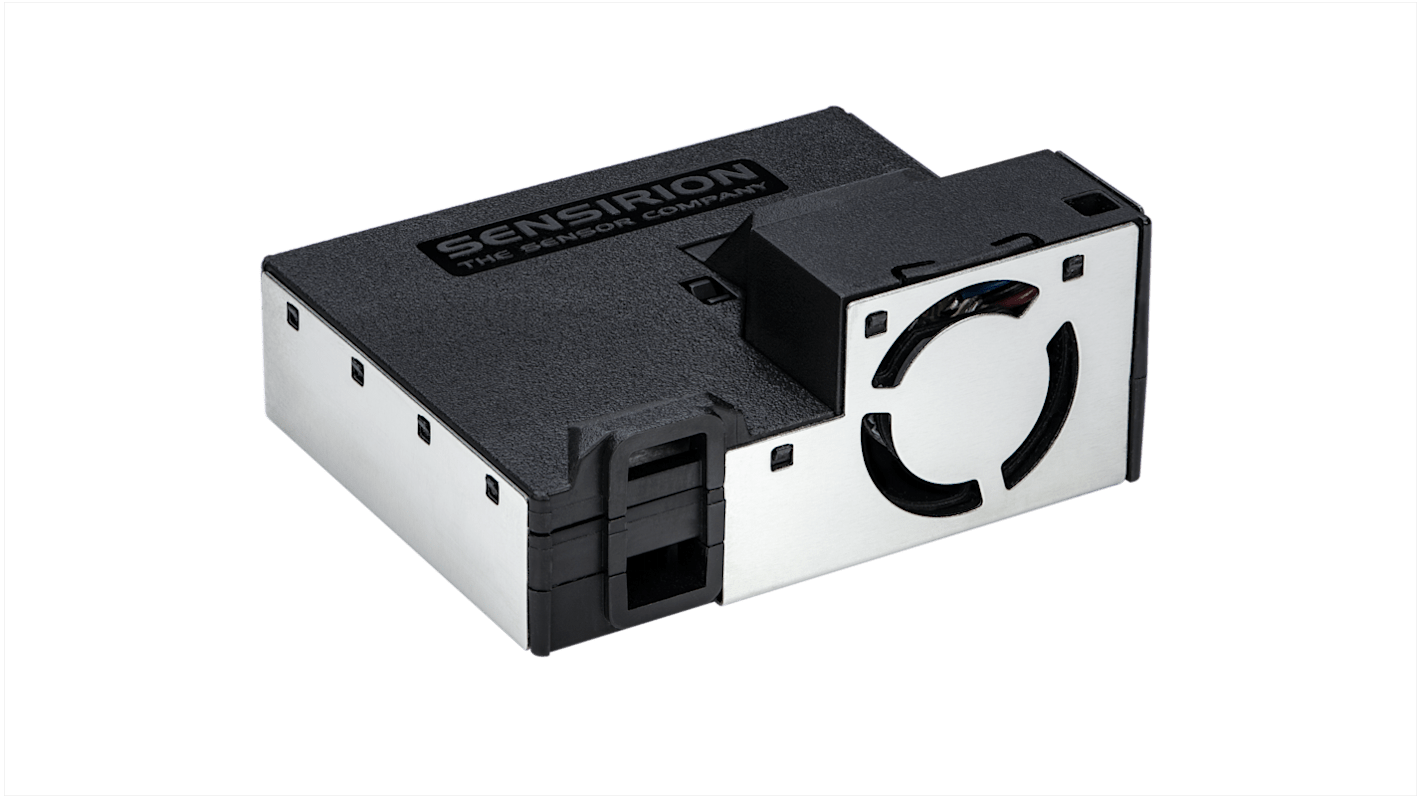

The Sensirion SEN50 environmental sensor node for HVAC and air quality applications is part of the SEN5x family. The environmental air sensor is designed for the accurate measurement of particulate matter. This compact SEN50 sensor node provides a long lifetime, fully calibrated outputs with a digital interface and high-performance sensing parameters. The SEN50 is easy to integrate into various applications including air purifiers and air quality monitoring giving you a one sensor solution platform.
The SEK-SEN5x Evaluation kit, is also available see RS 238-9410 which includes 1 x SEN55 Sensor module, 1 x UART to USB adapter cable, 1 x 4-pin jumper wire cable.
Sensor bridge is available separately see 195-0680
