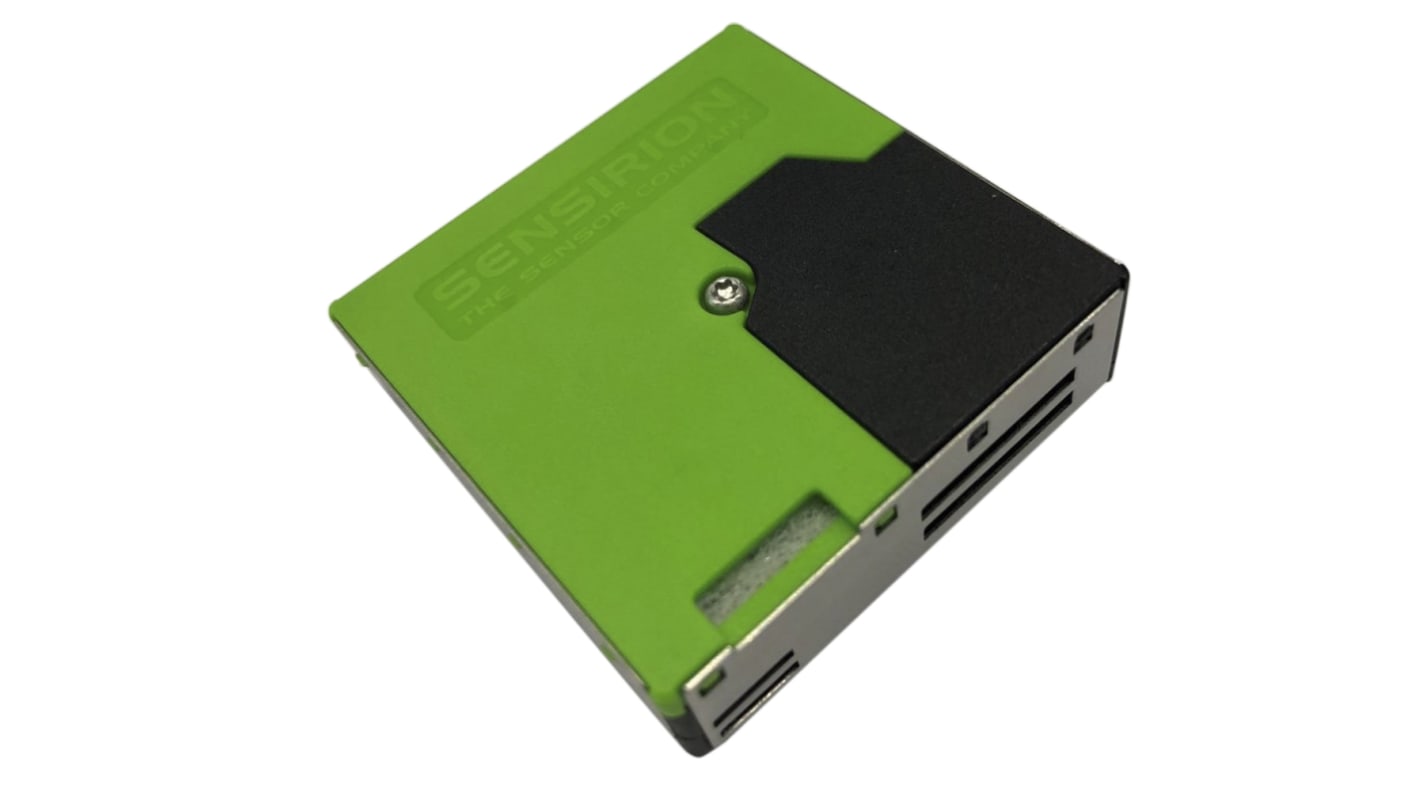

Sensirion Particulate Matter Sensor for Air Quality Monitors
- N° de stock RS:
- 186-2540
- Référence fabricant:
- SPS30
- Fabricant:
- Sensirion
Offre groupée disponible
Sous-total (1 unité)*
32,30 €
(TVA exclue)
39,08 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 12 unité(s) prête(s) à être expédiée(s)
- Plus 22 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 32,30 € |
| 10 - 19 | 28,26 € |
| 20 + | 24,62 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 186-2540
- Référence fabricant:
- SPS30
- Fabricant:
- Sensirion
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Sensirion | |
| Product Type | Particulate Matter Sensor | |
| Accuracy | ±10 % | |
| Response Time | 1s | |
| Application | Air Quality Monitors | |
| Sub Type | Air Quality Sensor | |
| Minimum Supply Voltage | 4.5V | |
| Power Source | External Power Supply 5 Vdc | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -10°C | |
| Pin Count | 5 | |
| Maximum Operating Temperature | 60°C | |
| Length | 41mm | |
| Standards/Approvals | DIN EN 60825-1 Class 1 | |
| Width | 12 mm | |
| Height | 41mm | |
| Series | SPS30 | |
| Weight | 26g | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Sensirion | ||
Product Type Particulate Matter Sensor | ||
Accuracy ±10 % | ||
Response Time 1s | ||
Application Air Quality Monitors | ||
Sub Type Air Quality Sensor | ||
Minimum Supply Voltage 4.5V | ||
Power Source External Power Supply 5 Vdc | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -10°C | ||
Pin Count 5 | ||
Maximum Operating Temperature 60°C | ||
Length 41mm | ||
Standards/Approvals DIN EN 60825-1 Class 1 | ||
Width 12 mm | ||
Height 41mm | ||
Series SPS30 | ||
Weight 26g | ||
Automotive Standard No | ||
- Pays d'origine :
- CN
Sensirion SPS30 particulate matter PM2.5 sensor for HVAC and air quality applications has a laser scattering principle, giving you an advanced particle size binning. Providing you with precise measurements for different types of particles. The Sensirion PM sensor also offers a good life expectancy due to the innovative contamination resistance technology. The particulate matter sensor is compact making it easy to integrate, besides this it is fast and easy to use.
The applications for Sensirion’s SPS30 sensor include HVAC equipment, air conditioners, smart home and IoT devices. In addition to this air purifiers, demand-controlled ventilation systems as well as air quality and environmental monitors.
The Evaluation kit is also available to buy see RS 186-2299 SEK-SPS30 which includes the SPS30 Particulate matter sensor with 1 x UART to USB adapter cable (2 m length). You can just connect the evaluation kit by connecting the USB to your device and connecting the sensor then you can see in real-time the exact measurement on the screen.
Mass concentration range 0 to 1,000 μg/m3: accuracy ±10%
Supply voltage 4.5 V to 5.5 Vdc
SPS30 offers two interfaces: I2C, UART
Dimensions 41 x 41 x 12 mm
Lower limit of detection 0.3μm
REACH and RoHS compliant
