Sélectionner tout	Attribut	Valeur
	Marque	Nexperia
	Mounting Type	Surface Mount
	Package Type	TSSOP
	Pin Count	16
	Dimensions	5.1 x 4.5 x 0.95mm
	Maximum Operating Supply Voltage	6 V
	Maximum Operating Temperature	+125 °C
	Minimum Operating Supply Voltage	1 V
	Minimum Operating Temperature	-40 °C

	Sélectionner tout
	Marque Nexperia
	Mounting Type Surface Mount
	Package Type TSSOP
	Pin Count 16
	Dimensions 5.1 x 4.5 x 0.95mm
	Maximum Operating Supply Voltage 6 V
	Maximum Operating Temperature +125 °C
	Minimum Operating Supply Voltage 1 V
	Minimum Operating Temperature -40 °C

Pays d'origine :: CN

The 74LV4051 is an 8-channel analog multiplexer/demultiplexer with three digital select inputs (S0 to S2), an active-LOW enable input (E), eight independent inputs/outputs (Y0 to Y7) and a common input/output (Z). It is a low-voltage Si-gate CMOS device that is pin and function compatible with 74HC4051 and 74HCT4051. With E LOW, one of the eight switches is selected (low impedance ON-state) by S0 to S2. With E HIGH, all switches are in the high-impedance OFF-state, independent of S0 to S2. VCC and GND are the supply voltage pins for the digital control inputs (S0 to S2, and E). The VCC to GND ranges are 1.0 V to 6.0 V.

Optimized for low-voltage applications
Low ON resistance
Logic level translation
Typical ’break before make’ built in
ESD protection

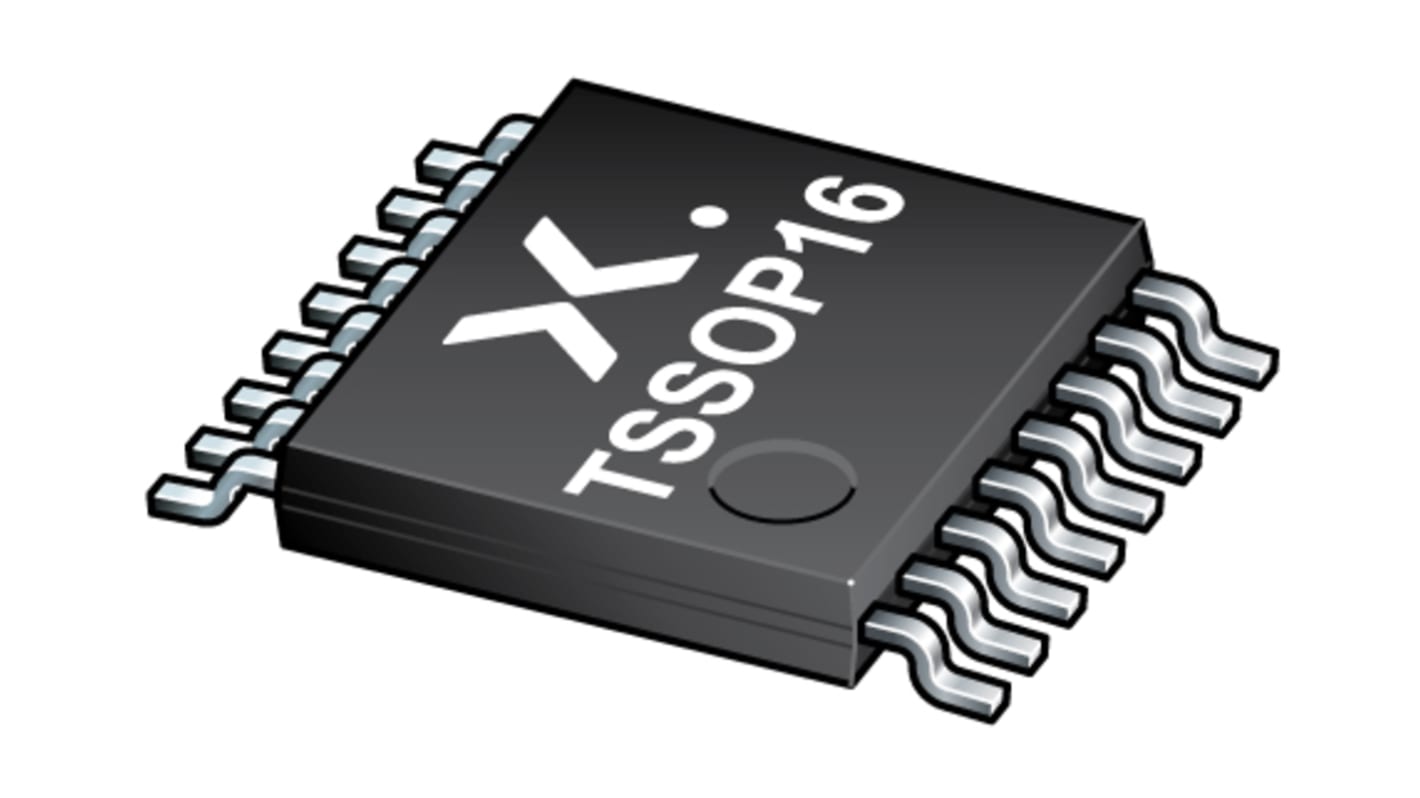

Nexperia 74LV4051PW,118, Decoder, 16-Pin TSSOP
