Phoenix Contact CBM CBM Electronic Circuit Breaker 10A 24V, 4 channels, DIN Rail Type E
- N° de stock RS:
- 890-3796
- Numéro d'article Distrelec:
- 300-86-123
- Référence fabricant:
- 2905743
- Fabricant:
- Phoenix Contact
Sous-total (1 unité)*
277,36 €
(TVA exclue)
335,61 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 5 unité(s) prête(s) à être expédiée(s)
- Plus 13 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 277,36 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 890-3796
- Numéro d'article Distrelec:
- 300-86-123
- Référence fabricant:
- 2905743
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Range | CBM | |
| Product Type | Electronic Circuit Breaker | |
| Series | CBM | |
| Number of Channels | 4 | |
| Current Rating | 10A | |
| Breaking Capacity | 300A | |
| Voltage | 24V | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Type E | |
| Length | 130mm | |
| Terminal Type | Screw | |
| Width | 41mm | |
| Depth | 121mm | |
| Standards/Approvals | cUL, cULus, EN 61000-6-3, RoHS, UL | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Range CBM | ||
Product Type Electronic Circuit Breaker | ||
Series CBM | ||
Number of Channels 4 | ||
Current Rating 10A | ||
Breaking Capacity 300A | ||
Voltage 24V | ||
Mount Type DIN Rail | ||
Tripping Characteristics Type E | ||
Length 130mm | ||
Terminal Type Screw | ||
Width 41mm | ||
Depth 121mm | ||
Standards/Approvals cUL, cULus, EN 61000-6-3, RoHS, UL | ||
- Pays d'origine :
- DE

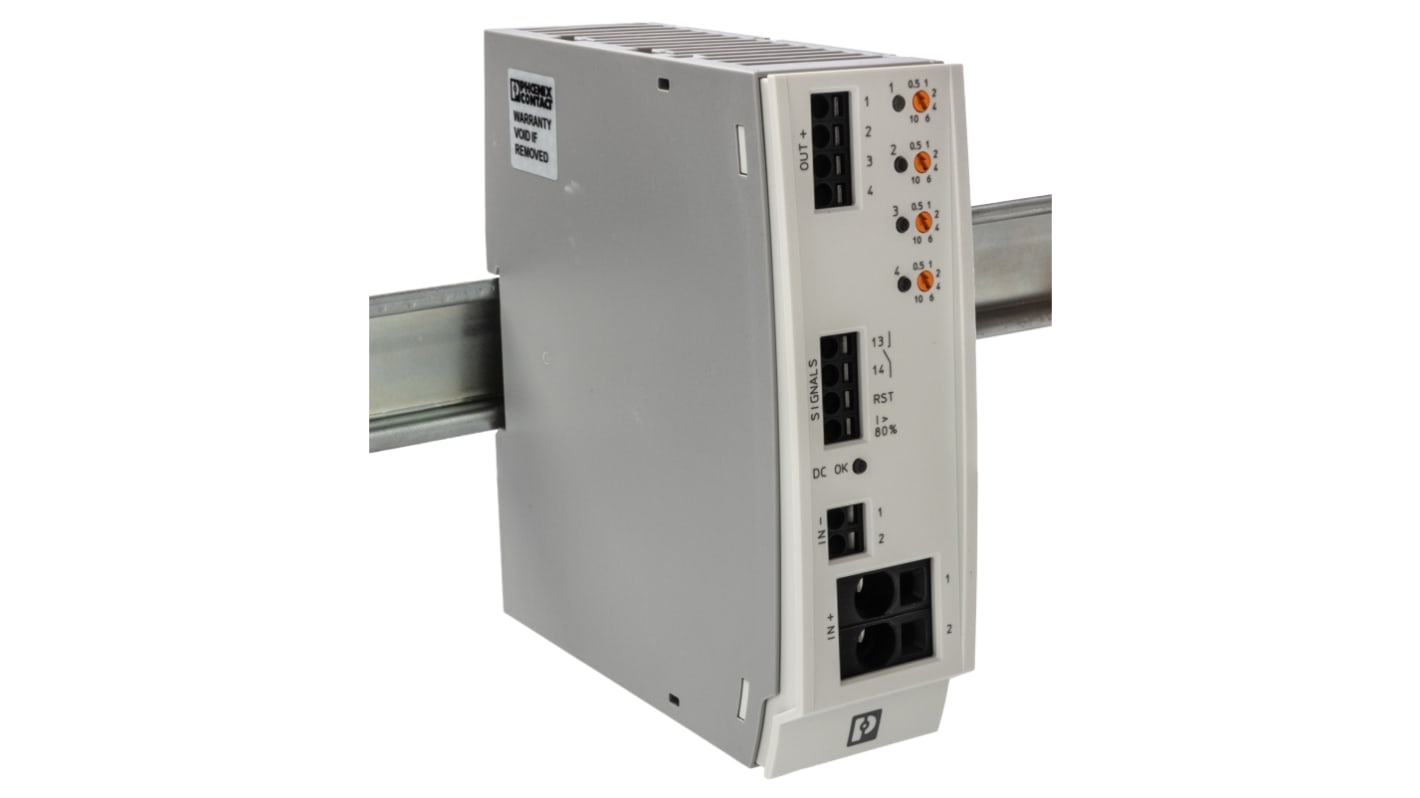

Phoenix Contact Electronic Circuit Breaker, 4 Channels, IP20 Rating - CBM E4 24DC/0.5-10A NO-R - 2905743
Wire up this Phoenix Contact electronic circuit breaker to protect your kit from overloads and short circuits. If the current exceeds 10A, the unit cuts the energy to prevent electrical damage and keep switch-mode power supplies and other equipment running smoothly. Its four channels mean it can protect four loads at 24V DC, so it's suitable for protecting complex applications.
As the breaker withstands humidity levels up to 95% RH at +40°C for up to 240 hours, you can be sure damp settings won't trip up its performance. It can also cope with a wide temperature range between -40°C and +80°C. Weighing in at just 234.6g, this ECB's lightweight and puts minimal strain on your setup.
Features & Benefits
• Current is adjustable between 0.5, 1, 2, 4, 6 and 10A DC per channel to give you greater flexibility
• Broad conductor cross-section range between 0.75 and 16mm², so it's versatile
• Slim size of 41 (W) x 130 (H) x 121mm (D) for installation in busy setups
• IP20 rating means it's touch-proof and shielded from tools larger than 12mm, for safe handling
• DIN rail-mounted for swift and simple installation
