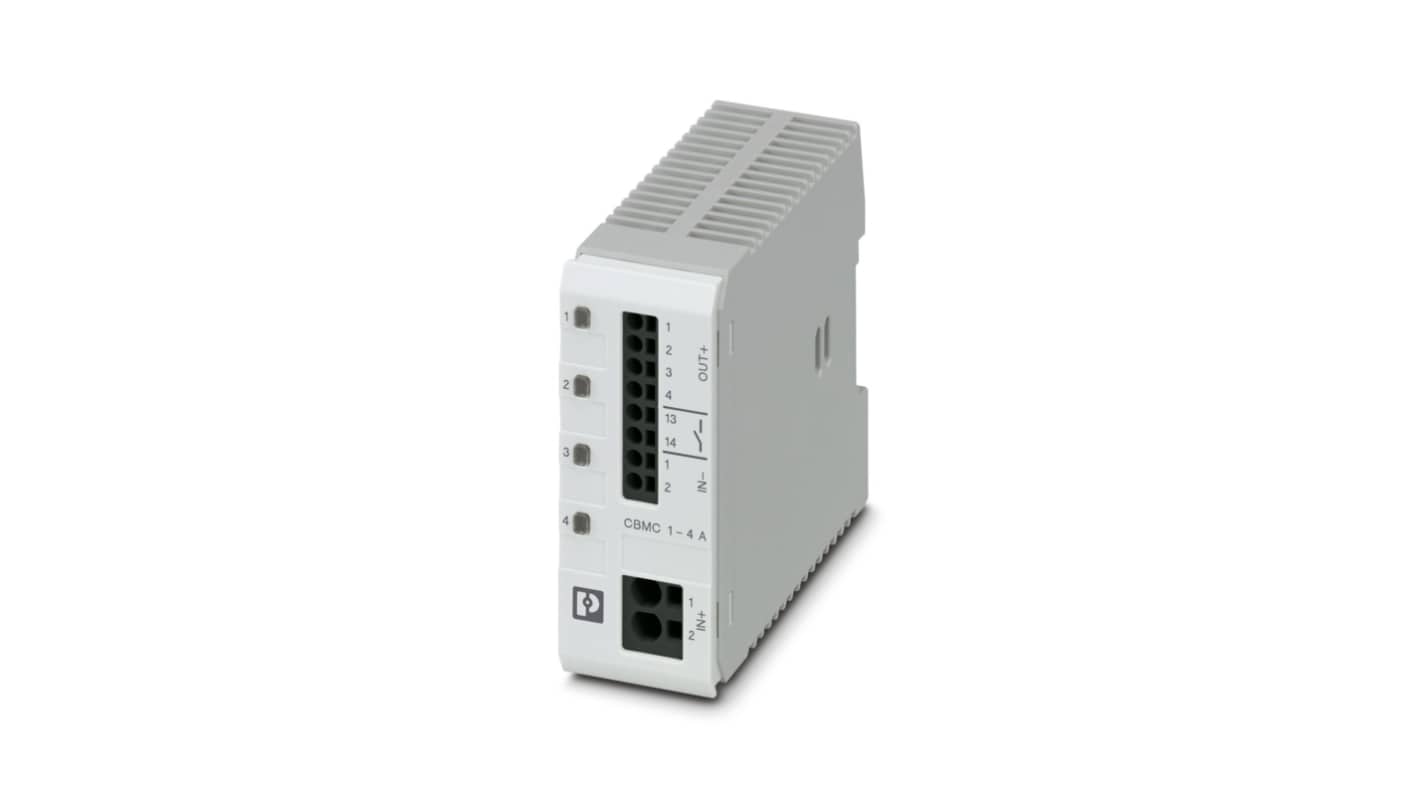

Phoenix Contact CBMC Electronic Circuit Breaker 4 A 24 V, 1 channels, DIN Rail Type E
- N° de stock RS:
- 207-2718
- Numéro d'article Distrelec:
- 302-22-023
- Référence fabricant:
- 2906031
- Fabricant:
- Phoenix Contact
Sous-total (1 unité)*
102,74 €
(TVA exclue)
124,32 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 11 unité(s) prête(s) à être expédiée(s)
- Plus 17 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 102,74 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 207-2718
- Numéro d'article Distrelec:
- 302-22-023
- Référence fabricant:
- 2906031
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | Electronic Circuit Breaker | |
| Series | CBMC | |
| Number of Channels | 1 | |
| Current Rating | 4 A | |
| Voltage | 24 V | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Type E | |
| Length | 90mm | |
| Terminal Type | Screw | |
| Width | 36 mm | |
| Depth | 98mm | |
| Standards/Approvals | UL, RoHS, EN 61000-6-3, cULus, cUL | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type Electronic Circuit Breaker | ||
Series CBMC | ||
Number of Channels 1 | ||
Current Rating 4 A | ||
Voltage 24 V | ||
Mount Type DIN Rail | ||
Tripping Characteristics Type E | ||
Length 90mm | ||
Terminal Type Screw | ||
Width 36 mm | ||
Depth 98mm | ||
Standards/Approvals UL, RoHS, EN 61000-6-3, cULus, cUL | ||
- Pays d'origine :
- DE
Phoenix Contact Electronic Circuit Breaker, 24 to 12AWG, 119.7g Weight - CBMC E4 24DC/1-4A NO - 2906031
Choose this electronic circuit breaker from Phoenix Contact to stop voltage surges from tripping up your productivity. It takes care of four poles, so it's useful for safeguarding complex setups. Thanks to a voltage rating of 24V DC, it's ideal for use with low-power systems. When the load is exceeded, a short-circuit event is triggered, and the inbuilt lights flash red and alert you to the issue.
You can easily initiate programming mode to tailor a channel's current to your system by simply pressing an LED and holding it for two seconds. To boost safety, this product is made from flame-retardant materials that self-extinguish in 10 seconds during a fire. An IP20 rating indicates it's touch-proof and resists objects greater than 12mm, like small tools and wires.
Features & Benefits
• DIN rail mounting for fast and easy set-up
• Mean time between failures of over 11.7 million hours means you get a long service life
• LEDs show the operating status in the traffic-light colour scheme, for intuitive monitoring
• Compact dimensions of 90 (H) x 36 (W) x 98mm (D) make it space-efficient
• Reliable performance in temperatures between -25°C and +60°C
