Eaton NZM NZM Electronic Circuit Breaker 70 A 690V, 4 channels, DIN Rail
- N° de stock RS:
- 121-915
- Référence fabricant:
- 153387 NZMN2-4-AF70-BT-NA
- Fabricant:
- Eaton
Sous-total (1 unité)*
1 324,00 €
(TVA exclue)
1 602,04 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 07 avril 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 1 324,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 121-915
- Référence fabricant:
- 153387 NZMN2-4-AF70-BT-NA
- Fabricant:
- Eaton
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Eaton | |
| Range | NZM | |
| Product Type | Electronic Circuit Breaker | |
| Series | NZM | |
| Number of Channels | 4 | |
| Current Rating | 70 A | |
| Breaking Capacity | 5kA | |
| Voltage | 690V | |
| Mount Type | DIN Rail | |
| Length | 149mm | |
| Terminal Type | Box | |
| Width | 140 mm | |
| Depth | 206mm | |
| Standards/Approvals | UL 489CE UL (File . E159)UL CSAC. . 509ULCSAUL IECEN 60947IECIEC 60947, RoHS | |
| Sélectionner tout | ||
|---|---|---|
Marque Eaton | ||
Range NZM | ||
Product Type Electronic Circuit Breaker | ||
Series NZM | ||
Number of Channels 4 | ||
Current Rating 70 A | ||
Breaking Capacity 5kA | ||
Voltage 690V | ||
Mount Type DIN Rail | ||
Length 149mm | ||
Terminal Type Box | ||
Width 140 mm | ||
Depth 206mm | ||
Standards/Approvals UL 489CE UL (File . E159)UL CSAC. . 509ULCSAUL IECEN 60947IECIEC 60947, RoHS | ||
- Pays d'origine :
- RO

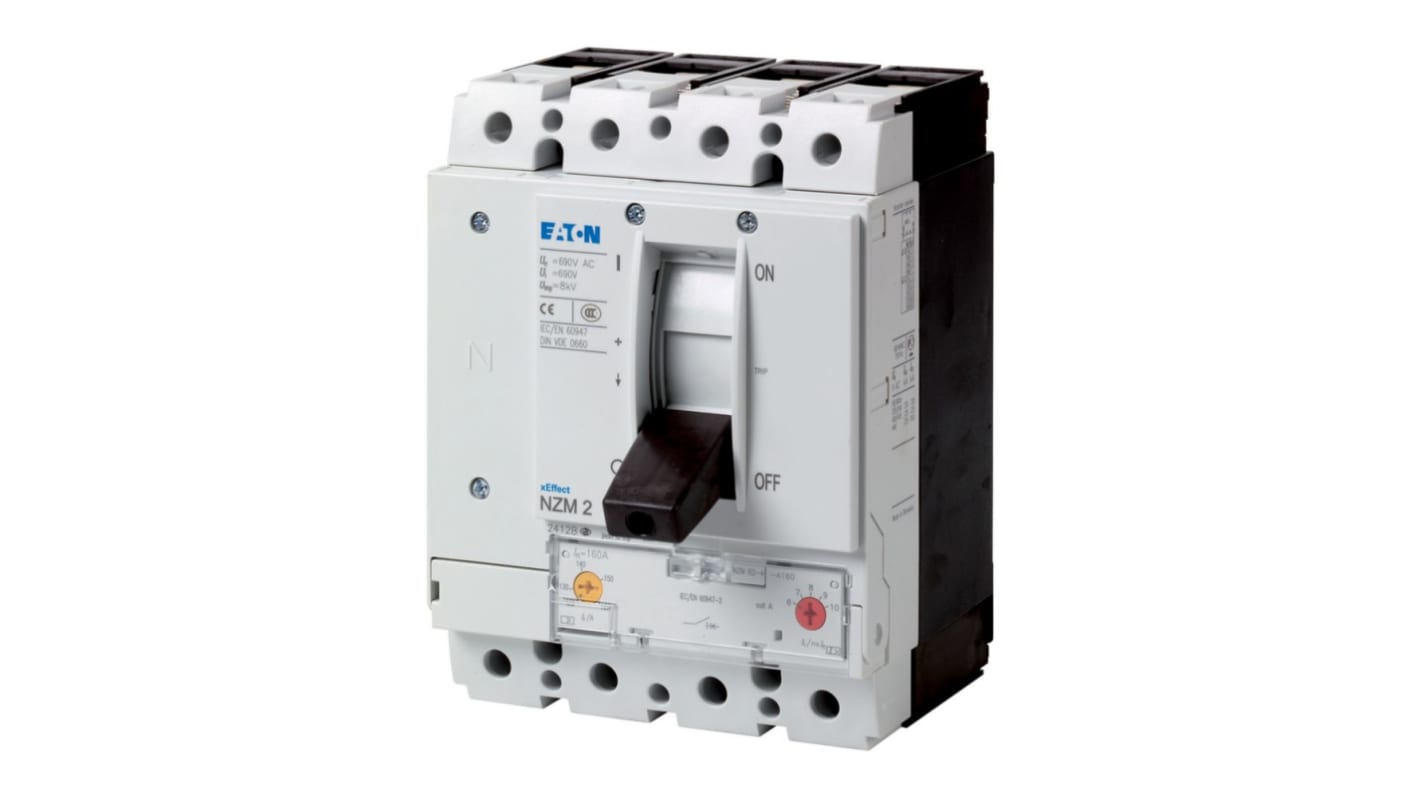

The Eaton Moeller series NZM molded case circuit breaker is a reliable solution for use in unearthed supply systems at 690V. With a four-pole design and a current rating of 70A, this circuit breaker offers thermomagnetic release for efficient protection. The product features a compact size with dimensions of 149mm x 206mm x 140mm and a weight of 3.755kg, making it ideal for branch circuits and feeder circuits. UL listed and RoHS conform, this circuit breaker is designed to meet high industry standards and regulations.
Multiple channels for versatile installation options
Built-in device with fixed built-in technique
Suitable for NZM series applications
Designed specifically for circuit-breaker applications
Efficient power distribution with a 70A rating
Reliable operatio
