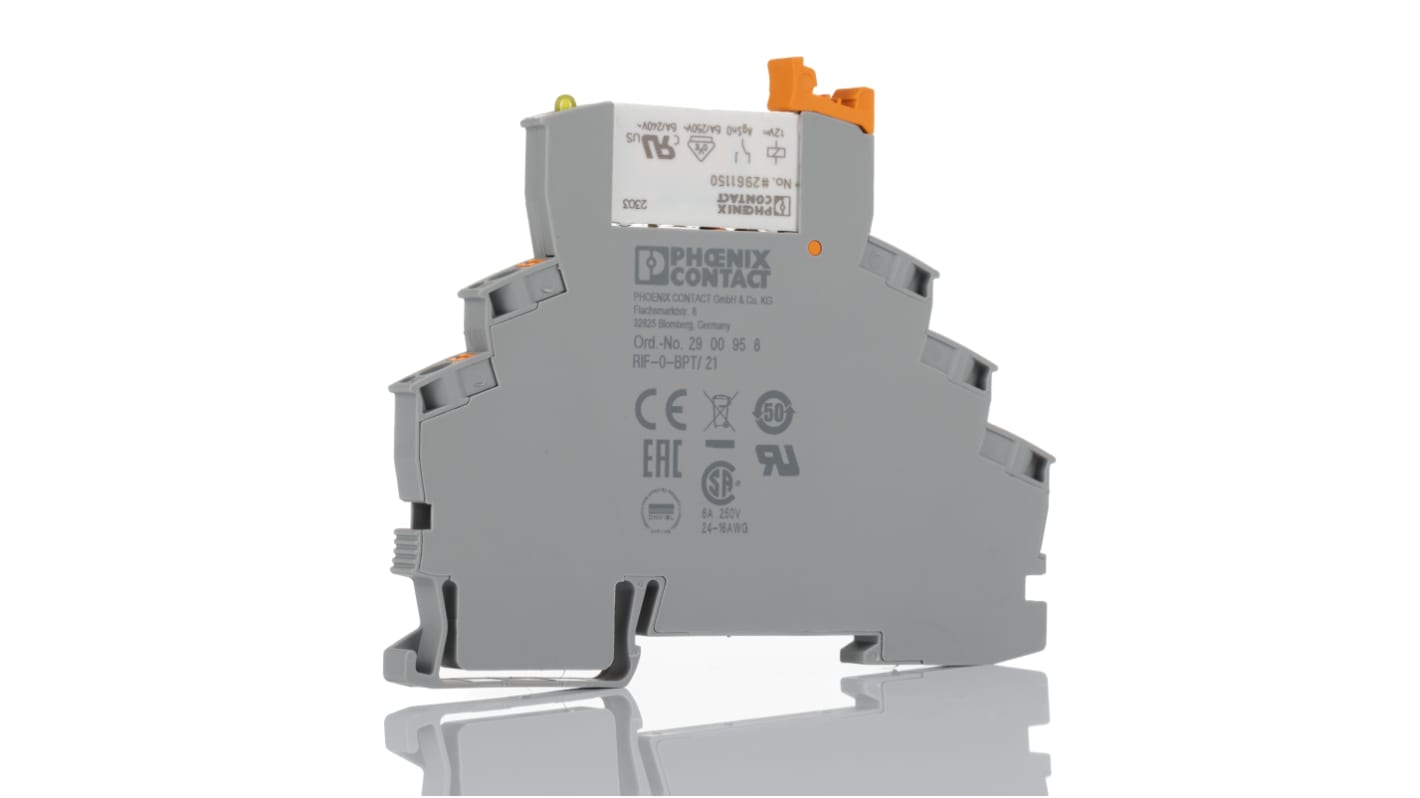

Phoenix Contact RIF-0-RPT-12DC/21 Series Interface Relay, DIN Rail Mount, 12V dc Coil, SPDT, 1-Pole

Voir la catégorie
Offre groupée disponible

Sous-total (1 unité)*

11,47 €

(TVA exclue)

13,88 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 332 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
  • Plus 126 unité(s) expédiée(s) à partir du 10 mars 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 - 411,47 €
5 - 911,12 €
10 +10,77 €

*Prix donné à titre indicatif

N° de stock RS:
794-3780
Numéro d'article Distrelec:
304-02-034
Référence fabricant:
2903371
Fabricant:
Phoenix Contact
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Phoenix Contact

Coil Voltage

12V dc

Contact Configuration

SPDT

Mounting Type

DIN Rail

Number of Poles

1

Series

RIF-0-RPT-12DC/21

Maximum Input Voltage

18V dc

Minimum Input Voltage

9.6V

Terminal Type

Plug In

Switching Voltage

230V

Depth

78mm

Height

93mm

Length

6.2mm

Contact Material

Silver Alloy

Input Current

16mA

Life

20000000 (Mechanical) cycles

Dimensions

15 x 27.3 x 19mm

Operating Temperature Range

-20 → +85°C

Input Voltage Range

9.6 → 18V dc

Maximum Operating Temperature

+60°C

Minimum Operating Temperature

-40°C

Relay Type

Interface Relay

Accessory Type

Interface Relay

Pays d'origine :
CZ

Phoenix Contact Interface Relay, Silver Alloy Contacts, 6kV Rated Surge Voltage - RIF-0-RPT-12DC/21 - 2903371


Need to switch from high-voltage power to low-voltage control in your circuit? Trust this interface relay from Phoenix Contact to do the job. You can also use it to isolate sensitive components from electrical noise. Unlike a standard relay, this unit has comprehensive galvanic isolation, meaning the connected circuits can't interact. This improves safety in hazardous environments and prevents one piece of failing equipment from damaging another.
Compact dimensions of 78 (D) x 93 (H) x 6.2mm (L) mean this is a space-saving option. DIN rail mounting makes installation a piece of cake, so you can put it to work in a snap. You can use the relay to control industrial automation machinery and starter motors on production lines or to connect process valves in chemical plants.

Features & Benefits


• Maximum switching voltage of 250V AC/DC for high-voltage use
• Lifespan of 20 million mechanical cycles, so it's a long-lasting solution
• Operates safely in a temperature range between -40°C and +60°C
• Silver alloy contacts provide high conductivity and durability
• 5ms typical response time for fast circuit switching
