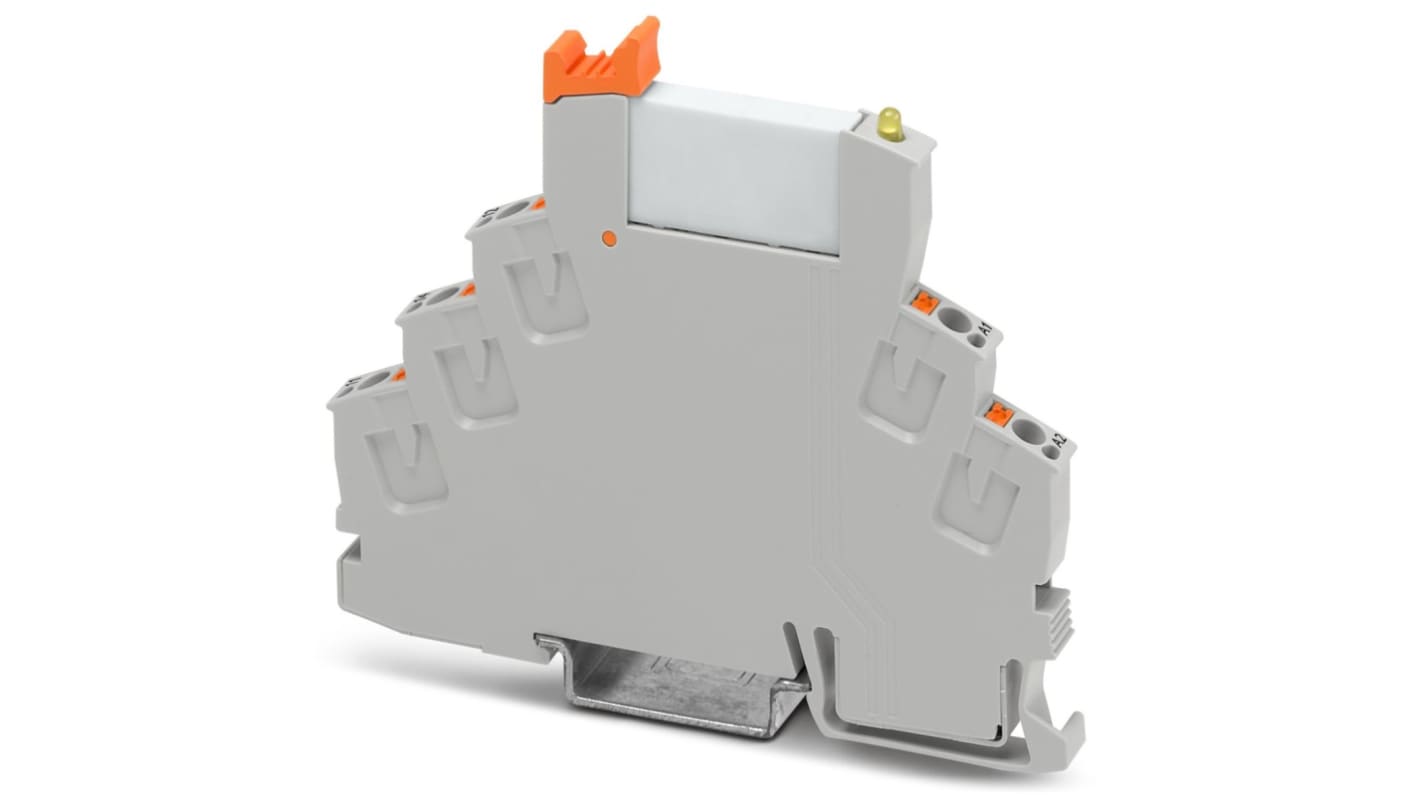

Phoenix Contact RIF-0-RPT-24DC/21AU Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole

Voir la catégorie
Offre groupée disponible

Sous-total (1 unité)*

10,05 €

(TVA exclue)

12,16 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 217 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
  • Plus 255 unité(s) expédiée(s) à partir du 10 mars 2026
  • Plus 110 unité(s) expédiée(s) à partir du 13 mars 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 - 410,05 €
5 - 99,78 €
10 +9,42 €

*Prix donné à titre indicatif

N° de stock RS:
794-3774
Numéro d'article Distrelec:
304-10-456
Référence fabricant:
2903368
Fabricant:
Phoenix Contact
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Phoenix Contact

Coil Voltage

24V dc

Contact Configuration

SPDT

Mounting Type

DIN Rail

Series

RIF-0-RPT-24DC/21AU

Number of Poles

1

Terminal Type

Plug In

Depth

78mm

Height

93mm

Length

6.2mm

Contact Material

Silver Alloy

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+60°C

Life

20000000 (Mechanical) cycles

Pays d'origine :
CN

Phoenix Contact RIF-0 Power Relay Modules


The professional range of RIFLINE complete power relays consist of a relay base with ejector and multi-layer gold contact or power contact relay.
The innovative, general purpose ice-cube relays are an excellent choice if you want to isolate, amplify or multiply signals. The universal plug-in design allows fast, easy and error free handling.

Features and Benefits


• Easy wiring due to push in connection technology
• Easy handling and extension of range
• Plug in display/suppressor module
• 1 and 2 contact options
• 5ms typical response time
• Damping diode protective circuit
• SPNO and SPDT available
• Din rail mounting
• Silver alloy contact material
• -40°C to +60°C operating temperature

Typical Applications


The Phoenix Contact RIFLINE range can offer you a solution to practically every switching application.

Phoenix Contact Non-Latching Relay Module, SPDT - RIF-0-RPT-24DC/21AU - 2903368


Make your automation needs simpler with this Phoenix Contact non-latching relay module. It comes pre-assembled with a relay base and a miniature power relay. The pluggable unit uses an SPDT (single pole, double throw) configuration, which is useful for varied switching and coupling operations.
The relay base in this unit comes with an ejector and push-in connections, so it's quick and easy to install. An integrated freewheeling diode lets you choose between connecting an input circuit or an interference suppression circuit to meet your needs. Holders for test plugs make quality checks faster and simpler.
Hard, gold-plated contacts offer reliable resistance to rust and corrosion. A universal design ensures efficient and error-free handling, making this unit ideal for your modular systems.

• Coil power of 170 mW
• Coil resistance of 3.388 kΩ
• Coil voltage of 24 V DC
• Mechanical service life of 20,000,000 cycles
• Maximum switching power of 1.5 kVA
• Maximum switching power of 1.2 W
• Maximum switching voltage of 30 V AC
• Maximum switching voltage of 36 V DC
• Operating temperature range of -40°C to +60°C
• Dimensions of 78 (depth) x 93 (height) x 6.2mm (width)
• DIN rail mounting type
