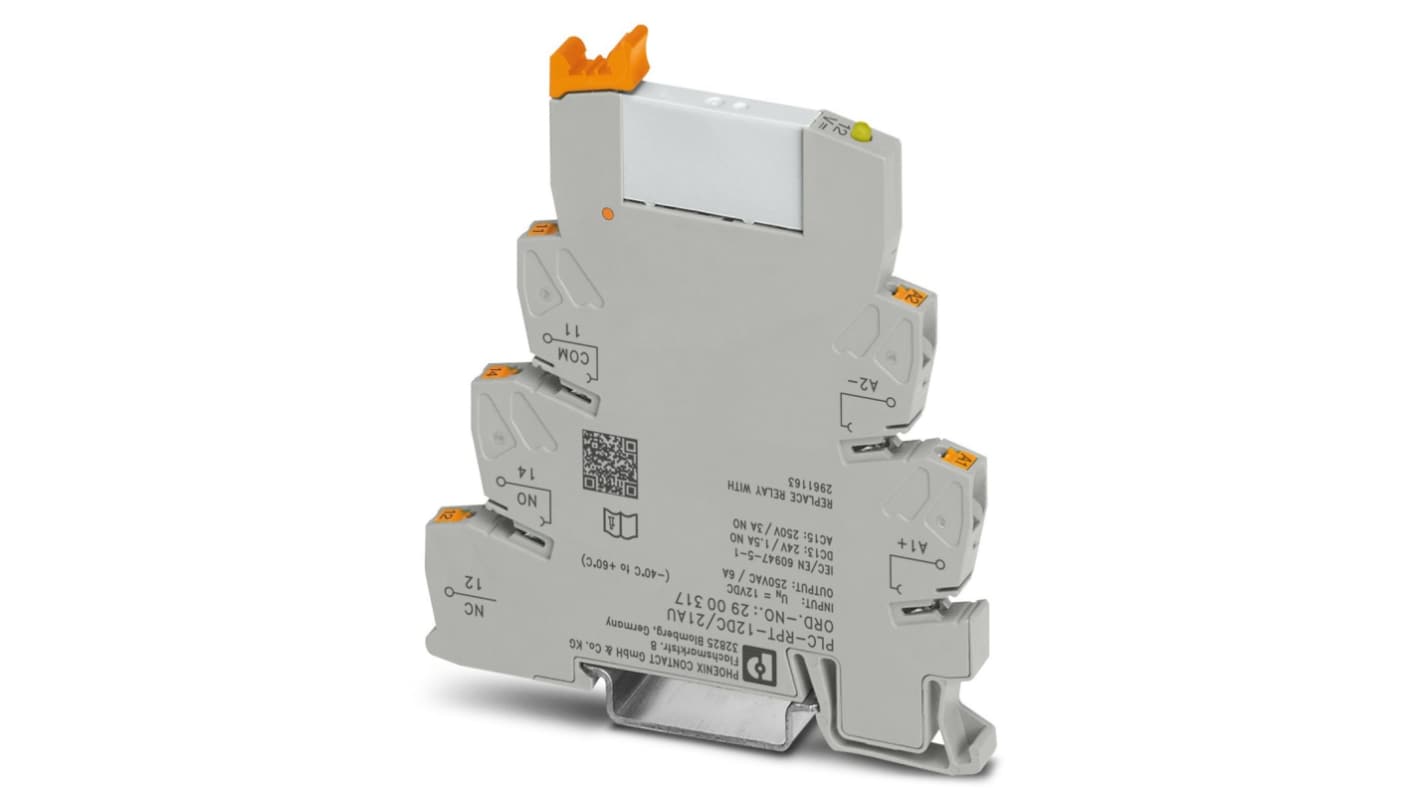

Phoenix Contact PLC-RPT- 12DC/21AU Series Relay Module, DIN Rail, 12V dc Coil, SPDT, 15.3mA
- N° de stock RS:
- 711-2686
- Référence fabricant:
- 2900317
- Fabricant:
- Phoenix Contact
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
13,58 €
(TVA exclue)
16,43 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 6 unité(s) expédiée(s) à partir du 17 août 2026
- Plus 132 unité(s) expédiée(s) à partir du 17 août 2026
- Plus 7 unité(s) expédiée(s) à partir du 24 août 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 13,58 € |
| 5 - 9 | 13,15 € |
| 10 + | 12,74 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 711-2686
- Référence fabricant:
- 2900317
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Coil Voltage | 12V dc | |
| Product Type | Relay Module | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Series | PLC-RPT- 12DC/21AU | |
| Terminal Type | Surface Mount | |
| Switching Current | 2A | |
| Switching DC Voltage | 24V dc | |
| Coil Current | 15.3mA | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | 60°C | |
| Width | 94mm | |
| Standards/Approvals | DIN, IEC | |
| Height | 80mm | |
| Length | 94mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Coil Voltage 12V dc | ||
Product Type Relay Module | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Series PLC-RPT- 12DC/21AU | ||
Terminal Type Surface Mount | ||
Switching Current 2A | ||
Switching DC Voltage 24V dc | ||
Coil Current 15.3mA | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature 60°C | ||
Width 94mm | ||
Standards/Approvals DIN, IEC | ||
Height 80mm | ||
Length 94mm | ||
- Pays d'origine :
- DE
Phoenix Contact PLC-RPT- 12DC/21AU Series Relay Module, SPDT Contact Configuration, 12V DC Coil Voltage - 2900317
This relay module is designed for automation solutions that require effective switching operations. It operates at a nominal input voltage of 12V DC and is intended for DIN rail mounting, with dimensions of 94mm in length and 80mm in height. The module has a single pole double throw (SPDT) contact configuration, making it suitable for a variety of applications.
Features & Benefits
• Slim design for space-efficient installations
• Safe isolation between the coil and contact side
• Integrated input and interference suppression circuits
• Fast switching times of 5ms for on and 8ms for off
• Wide input voltage range of 9.7 to 16.8V DC
• High maximum operating temperature of +60°C
Applications
• Used in industrial control systems for automation
• Suitable for interfacing with sensors and actuators
• Ideal for electrical and mechanical machinery
• Employed in building automation systems
Can it operate in extreme temperatures?
Yes, it functions between -40°C and +60°C.
Is it suitable for outdoor installations?
No, it is designed for indoor use only.
Will it show an input voltage status?
Yes, an LED indicates the operating voltage.
Can it handle surge protection?
Yes, it has a built-in protective circuit.
Is the relay module easy to install?
Yes, it fits standard DIN rails for quick installation.
