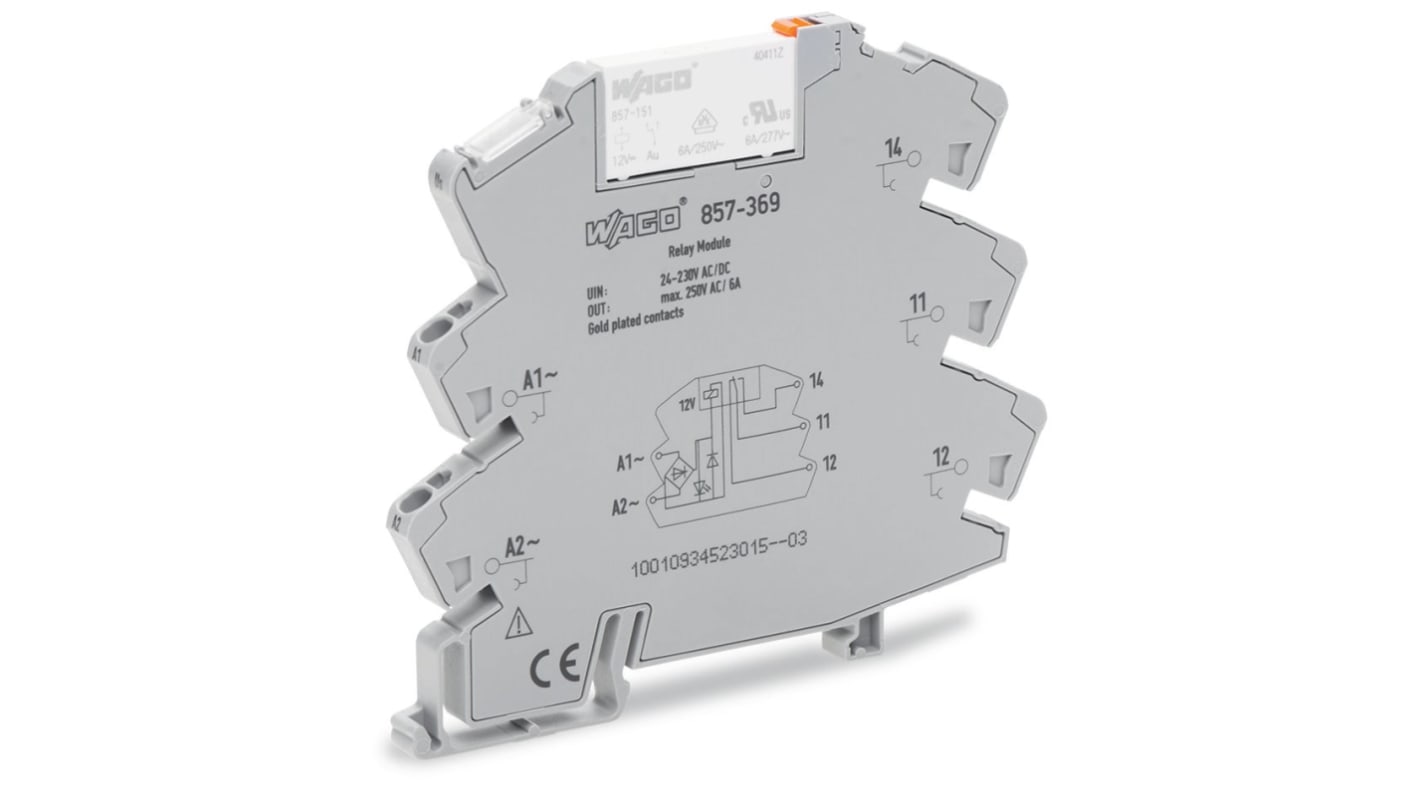

WAGO 857 Series Relay Module, DIN Rail, 230V ac/dc, 24 V ac/dc Coil, SPDT, 20mA, 4 mA
- N° de stock RS:
- 279-2522
- Référence fabricant:
- 857-369
- Fabricant:
- WAGO
Actuellement indisponible
Désolés, nous ne savons pas quand ce produit sera réapprovisionné.
- N° de stock RS:
- 279-2522
- Référence fabricant:
- 857-369
- Fabricant:
- WAGO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | WAGO | |
| Product Type | Relay Module | |
| Coil Voltage | 230, 24V ac/dc | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Series | 857 | |
| Terminal Type | Push-in Cage Clamp | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 230, 24V dc | |
| Coil Current | 20, 4mA | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Gold Plated Silver Nickel | |
| Maximum Operating Temperature | 70°C | |
| Width | 6mm | |
| Standards/Approvals | EN 61373, EN 61810-1, EN 61010-2-201, UL 508 | |
| Length | 81mm | |
| Height | 94mm | |
| Sélectionner tout | ||
|---|---|---|
Marque WAGO | ||
Product Type Relay Module | ||
Coil Voltage 230, 24V ac/dc | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Series 857 | ||
Terminal Type Push-in Cage Clamp | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 230, 24V dc | ||
Coil Current 20, 4mA | ||
Minimum Operating Temperature -40°C | ||
Contact Material Gold Plated Silver Nickel | ||
Maximum Operating Temperature 70°C | ||
Width 6mm | ||
Standards/Approvals EN 61373, EN 61810-1, EN 61010-2-201, UL 508 | ||
Length 81mm | ||
Height 94mm | ||
The WAGO relay module features cage clamp connection technology and its contacts made from silver alloy.
Mounting type DIN-35 rail
RoHS compliant
