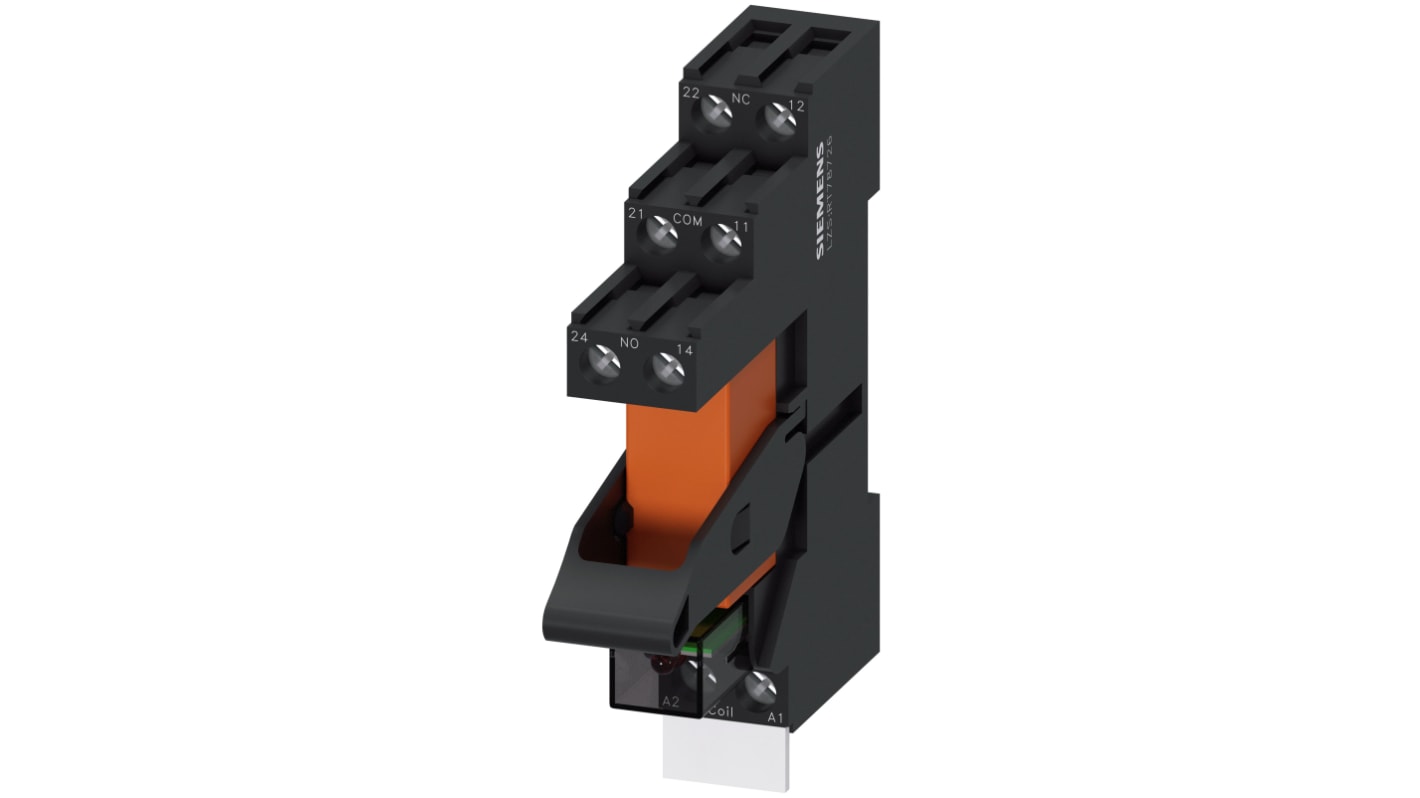

Siemens LZS Series Coupling Relay, Plug-in, 24V ac Coil, SPDT
- N° de stock RS:
- 255-0890
- Référence fabricant:
- LZS:RT3B4R24
- Fabricant:
- Siemens
Sous-total (1 paquet de 5 unités)*
146,96 €
(TVA exclue)
177,82 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 12 mai 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 5 + | 29,392 € | 146,96 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 255-0890
- Référence fabricant:
- LZS:RT3B4R24
- Fabricant:
- Siemens
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Siemens | |
| Product Type | Coupling Relay | |
| Coil Voltage | 24V ac | |
| Contact Configuration | SPDT | |
| Mount Type | Plug-in | |
| Series | LZS | |
| Terminal Type | Screw | |
| Switching Current | 1A | |
| Switching AC Voltage | 240V ac | |
| Minimum Operating Temperature | -40°C | |
| Coil Type | Non-Latching | |
| Switching DC Voltage | 60V dc | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Length | 50mm | |
| Height | 15mm | |
| Width | 10mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Siemens | ||
Product Type Coupling Relay | ||
Coil Voltage 24V ac | ||
Contact Configuration SPDT | ||
Mount Type Plug-in | ||
Series LZS | ||
Terminal Type Screw | ||
Switching Current 1A | ||
Switching AC Voltage 240V ac | ||
Minimum Operating Temperature -40°C | ||
Coil Type Non-Latching | ||
Switching DC Voltage 60V dc | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Length 50mm | ||
Height 15mm | ||
Width 10mm | ||
- Pays d'origine :
- DE
The Siemens Plug-in relay complete unit module red Socket with logic isolation Spring-type terminal. It has 3 changeover contacts. The coupling relays with semiconductor output have low power consumption and are therefore particularly well-suited to solid-state systems. In the versions equipped with LEDs, these indicate the switching state. Coupling relays have a test button. This can be used to force the relays into the switching state and to lock it without electrical control. This is indicated by a raised petrol-colored lever.
Screw-type terminals
Snap-on mounting
