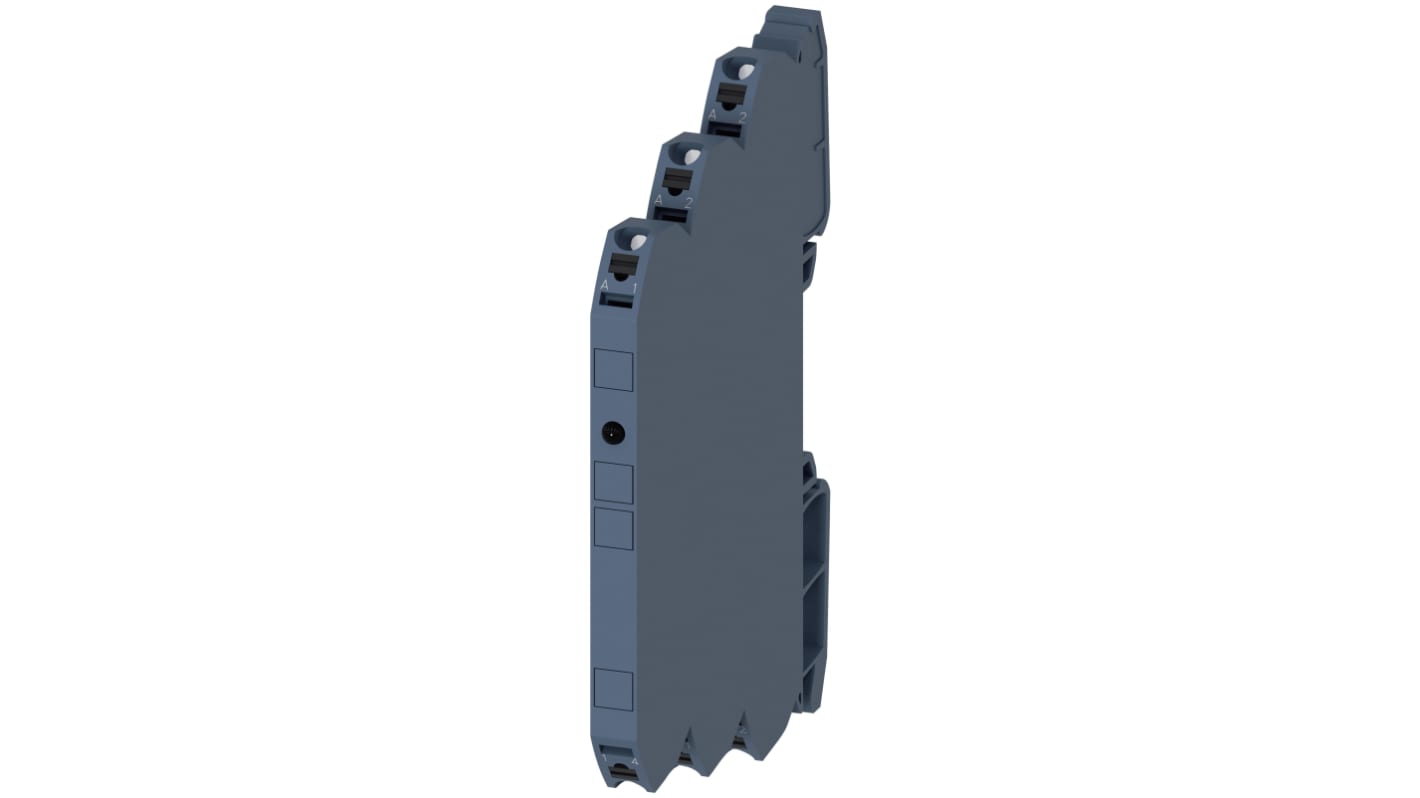

Siemens SIRIUS 3RQ3 Output Coupler Series Relay, Snap-On Rail Mount, 24V ac/dc Coil

Voir la catégorie

Sous-total (1 unité)*

43,23 €

(TVA exclue)

52,31 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En voie de retrait du marché
  • 53 restante(s), prêt à être expédié
  • Plus 9 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
  • 15 unité(s) finale(s) expédiée(s) à partir du 22 décembre 2025
Unité
Prix par unité
1 +43,23 €

*Prix donné à titre indicatif

N° de stock RS:
175-2302
Numéro d'article Distrelec:
303-97-066
Référence fabricant:
3RQ3018-2AB00
Fabricant:
Siemens
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Siemens

Coil Voltage

24V ac/dc

Mounting Type

Snap-On Rail Mount

Series

SIRIUS 3RQ3 Output Coupler

Terminal Type

Cage Clamp

Depth

72.5mm

Height

93mm

Length

93mm

Contact Material

Silver Alloy

Input Current

6A

Operating Temperature Range

-25 → +60°C

Minimum Operating Temperature

-25°C

Relay Type

Plug-In Module

Relay Switching Classification

Plug-In Relay

Standards Met

CE

Accessory Type

Relay Coupler

Maximum Operating Temperature

+60°C

Dimensions

6.2 x 93 x 72.5mm

Pays d'origine :
TN

Siemens Relay, 24V AC/DC Coil Voltage, 6A Input Current - 3RQ3018-2AB00


This relay is an important component in automation and electrical systems. As a plug-in relay, it operates at a coil voltage of 24V AC/DC. Its compact design measures 93mm in height and 72.5mm in depth, making it ideal for snap-on rail mounting. With an input current of 6A and an operating temperature range from -25 to +60°C, it provides consistent performance across various industrial applications.

Features & Benefits


• AgSnO2 contact material for durability and longevity
• Operating frequency of up to 72,000 1/h supports high-speed applications
• IP20 protection class prevents dust ingress
• Monostable switching behaviour for operational stability
• Shock resistance of 15g/11ms enhances resilience to vibrations
• Spring-type terminals ensure quick and easy connections

Applications


• Coupling and controlling electrical circuits
• Suitable for relay output in machinery
• Applicable in environments requiring robust electrical performance

Can it operate in extreme temperatures?


Yes, it operates between -25°C and +60°C.

Will it provide reliable switching in industrial settings?


Yes, it meets CE standards for operation.

Is there a limit on the frequency of switching?


The relay operates at a maximum frequency of 72,000 1/h.

Can it support auxiliary circuits?


Yes, it features changeover contacts for auxiliary circuits.
