Phoenix Contact PLC-RSC-230UC/ 1AU/MS/SEN Series Interface Relay, DIN Rail Mount, 230V ac/dc Coil, SPST, 1-Pole
- N° de stock RS:
- 134-8717
- Référence fabricant:
- 2909665
- Fabricant:
- Phoenix Contact
Indisponible
RS n'aura plus ce produit en stock.
Produit de remplacement
Ce produit n'est pas disponible actuellement. Voici notre produit de remplacement:
la pièce
24,56 €
(TVA exclue)
29,72 €
(TVA incluse)
- N° de stock RS:
- 134-8717
- Référence fabricant:
- 2909665
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Coil Voltage | 230V ac/dc | |
| Contact Configuration | SPST | |
| Mounting Type | DIN Rail | |
| Number of Poles | 1 | |
| Series | PLC-RSC-230UC/ 1AU/MS/SEN | |
| Maximum Input Voltage | 220 V dc, 230V ac | |
| Minimum Input Voltage | 230V ac/dc | |
| Terminal Type | Screw | |
| Depth | 6.2mm | |
| Height | 80mm | |
| Length | 94mm | |
| Contact Material | Gold Plated | |
| Input Current | 15.3mA | |
| Dimensions | 94 x 80 x 6.2mm | |
| Operating Temperature Range | -40 → +60°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +60°C | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Coil Voltage 230V ac/dc | ||
Contact Configuration SPST | ||
Mounting Type DIN Rail | ||
Number of Poles 1 | ||
Series PLC-RSC-230UC/ 1AU/MS/SEN | ||
Maximum Input Voltage 220 V dc, 230V ac | ||
Minimum Input Voltage 230V ac/dc | ||
Terminal Type Screw | ||
Depth 6.2mm | ||
Height 80mm | ||
Length 94mm | ||
Contact Material Gold Plated | ||
Input Current 15.3mA | ||
Dimensions 94 x 80 x 6.2mm | ||
Operating Temperature Range -40 → +60°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +60°C | ||
- Pays d'origine :
- DE

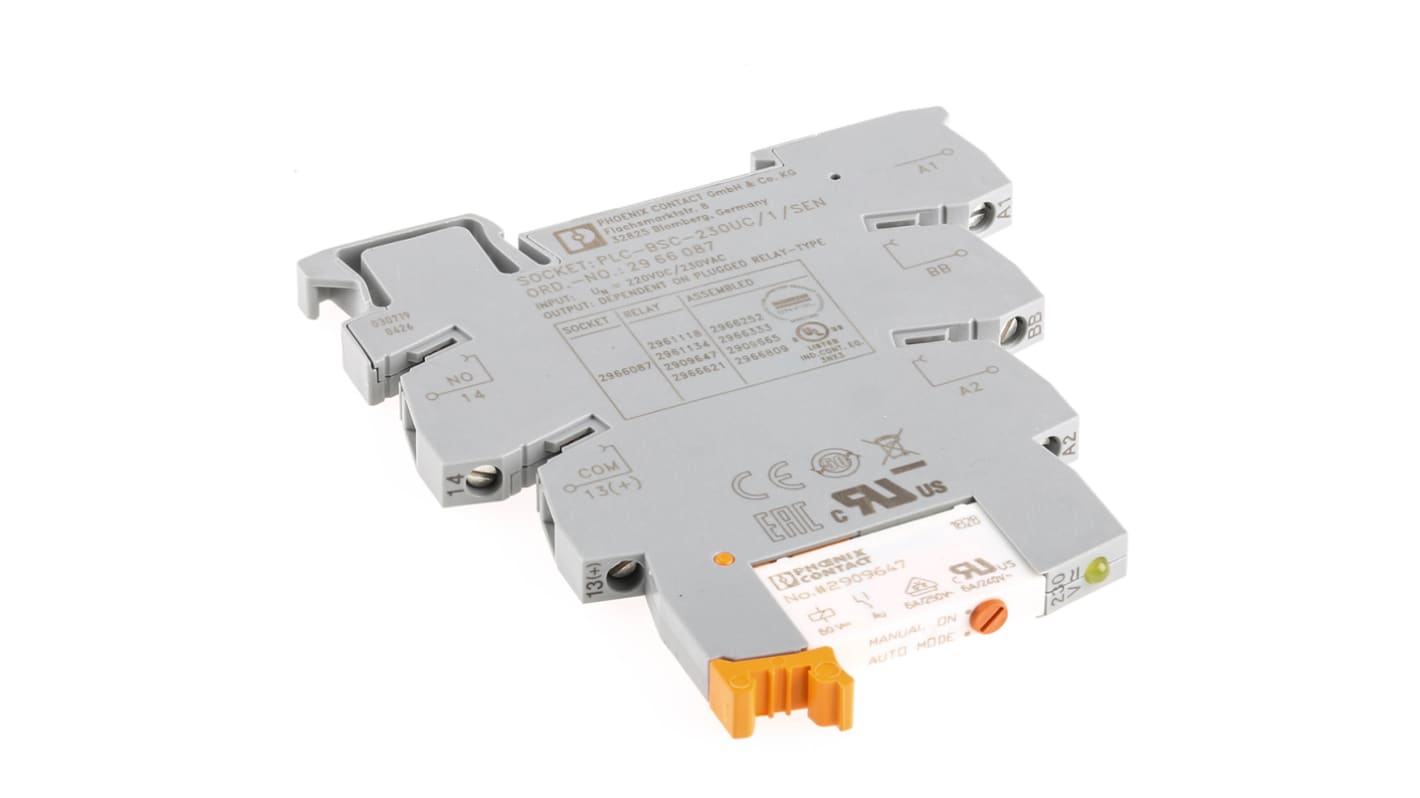

A 6.2 mm PLC interface relay module designed to be mountable on DIN rail NS 35/7.5. Featuring a basic terminal block with screw connection and a plug-in miniature power relay.
Phoenix Contact PLC-RCS Relays Series
This range of compact PLC relays from Phoenix Contact gives you a great choice of easy connection technology. The electromechanical relays act as the interface between your automation equipment and system peripherals.
Features and Benefits:
• Saves space on the DIN rail
• Cost-effective
• Use the same electromechanical relay module design for both AC and DC switching voltage
• DIN rail mounting
• SPNO and SPDT models available
• Yellow LED operating voltage display
• Free-wheeling diode Damping diode
• Dimensions 94 x 80 x 6.2 mm
• Cost-effective
• Use the same electromechanical relay module design for both AC and DC switching voltage
• DIN rail mounting
• SPNO and SPDT models available
• Yellow LED operating voltage display
• Free-wheeling diode Damping diode
• Dimensions 94 x 80 x 6.2 mm
Typical Applications:
The PLC relays are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.
