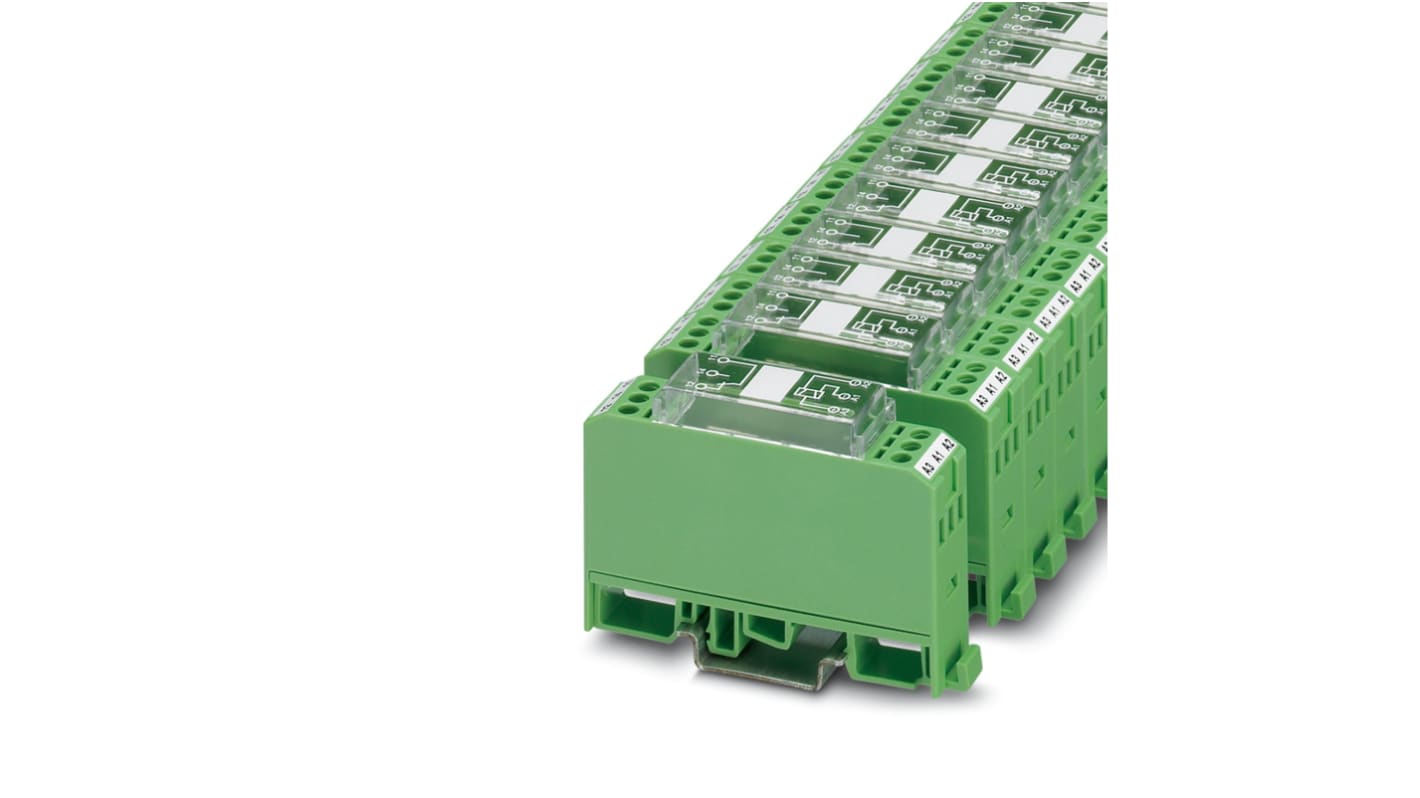

Phoenix Contact EMG Series Relay Module, DIN Rail, 48V Coil, SPDT, 8.5mA
- N° de stock RS:
- 135-687
- Référence fabricant:
- 2946654
- Fabricant:
- Phoenix Contact
Sous-total (1 paquet de 10 unités)*
465,35 €
(TVA exclue)
563,07 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 13 janvier 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Paquet(s) | le paquet | Prix par unité* |
|---|---|---|
| 1 + | 465,35 € | 46,535 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 135-687
- Référence fabricant:
- 2946654
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | Relay Module | |
| Coil Voltage | 48V | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Series | EMG | |
| Terminal Type | Screw | |
| Switching Current | 8A | |
| Switching AC Voltage | 250V ac | |
| Coil Current | 8.5mA | |
| Coil Type | Bistable | |
| Switching DC Voltage | 250V dc | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 50°C | |
| Contact Material | Silver Tin Oxide | |
| Length | 62.5mm | |
| Standards/Approvals | DIN EN 50178 | |
| Width | 17.5mm | |
| Height | 75mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type Relay Module | ||
Coil Voltage 48V | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Series EMG | ||
Terminal Type Screw | ||
Switching Current 8A | ||
Switching AC Voltage 250V ac | ||
Coil Current 8.5mA | ||
Coil Type Bistable | ||
Switching DC Voltage 250V dc | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 50°C | ||
Contact Material Silver Tin Oxide | ||
Length 62.5mm | ||
Standards/Approvals DIN EN 50178 | ||
Width 17.5mm | ||
Height 75mm | ||
- Pays d'origine :
- DE
The Phoenix Contact relay module is a versatile and reliable solution for various applications. With a compact design and high-quality materials, it offers safe isolation and reinforced insulation for enhanced performance. The product features a 1 changeover contact, input voltage of 48 V DC, and a mechanical service life of approximately 107 cycles.
Flexible modular protective plug for various applications
Reliable 1.5A rated current performance
Total discharge currents of 10 kA and 2.5 kA
Black color finish with compact dimensions
Meets DIN VDE and IEC safety standards
Versatile protection with modular design
