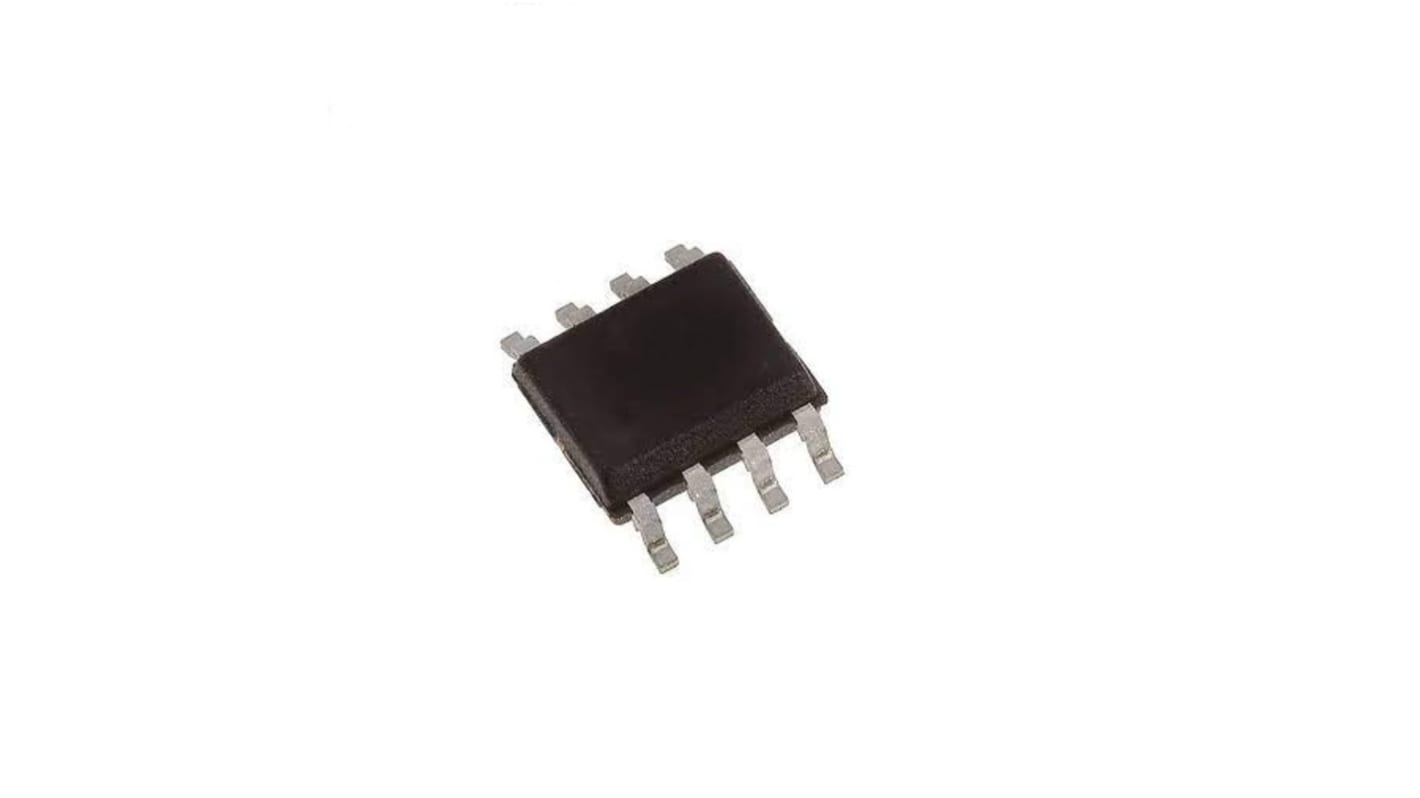

Microchip 25LC160-I/SN, 16 kB EEPROM, 230 ns 8-Pin SOIC-8 SPI
- N° de stock RS:
- 236-8794
- Référence fabricant:
- 25LC160-I/SN
- Fabricant:
- Microchip
Offre groupée disponible
Sous-total (1 unité)*
1,00 €
(TVA exclue)
1,21 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 286 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 1,00 € |
| 10 - 24 | 0,97 € |
| 25 - 49 | 0,95 € |
| 50 - 74 | 0,94 € |
| 75 + | 0,92 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 236-8794
- Référence fabricant:
- 25LC160-I/SN
- Fabricant:
- Microchip
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Microchip | |
| Product Type | EEPROM | |
| Memory Size | 16kB | |
| Interface Type | SPI | |
| Package Type | SOIC-8 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Clock Frequency | 3MHz | |
| Organisation | 2K x 8 bit | |
| Minimum Supply Voltage | 2.5V | |
| Maximum Supply Voltage | 5.5V | |
| Number of Bits per Word | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 3.9 mm | |
| Standards/Approvals | RoHS | |
| Length | 4.9mm | |
| Height | 1.5mm | |
| Number of Words | 2k | |
| Automotive Standard | No | |
| Maximum Random Access Time | 230ns | |
| Data Retention | 200year | |
| Sélectionner tout | ||
|---|---|---|
Marque Microchip | ||
Product Type EEPROM | ||
Memory Size 16kB | ||
Interface Type SPI | ||
Package Type SOIC-8 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Clock Frequency 3MHz | ||
Organisation 2K x 8 bit | ||
Minimum Supply Voltage 2.5V | ||
Maximum Supply Voltage 5.5V | ||
Number of Bits per Word 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 3.9 mm | ||
Standards/Approvals RoHS | ||
Length 4.9mm | ||
Height 1.5mm | ||
Number of Words 2k | ||
Automotive Standard No | ||
Maximum Random Access Time 230ns | ||
Data Retention 200year | ||
The Microchip 16 K bit serial electrically erasable PROM memory is accessed via a simple serial peripheral interface SPI compatible serial bus. The bus signals required are a clock input SCK plus separate data in SI and data out SO lines. Access to the device is controlled through a chip select CS input. Communication to the device can be paused via the hold pin HOLD. While the device is paused, transitions on its inputs will be ignored, with the exception of chip select, allowing the host to service higher priority interrupts.
Low power CMOS technology
Write current 3 mA maximum
Read current 500 micro A typical
Standby current 500 nA typical
2048 x 8 bit organization
16 byte page
Write cycle time 5 ms maximum
Self-timed erase and write cycles
