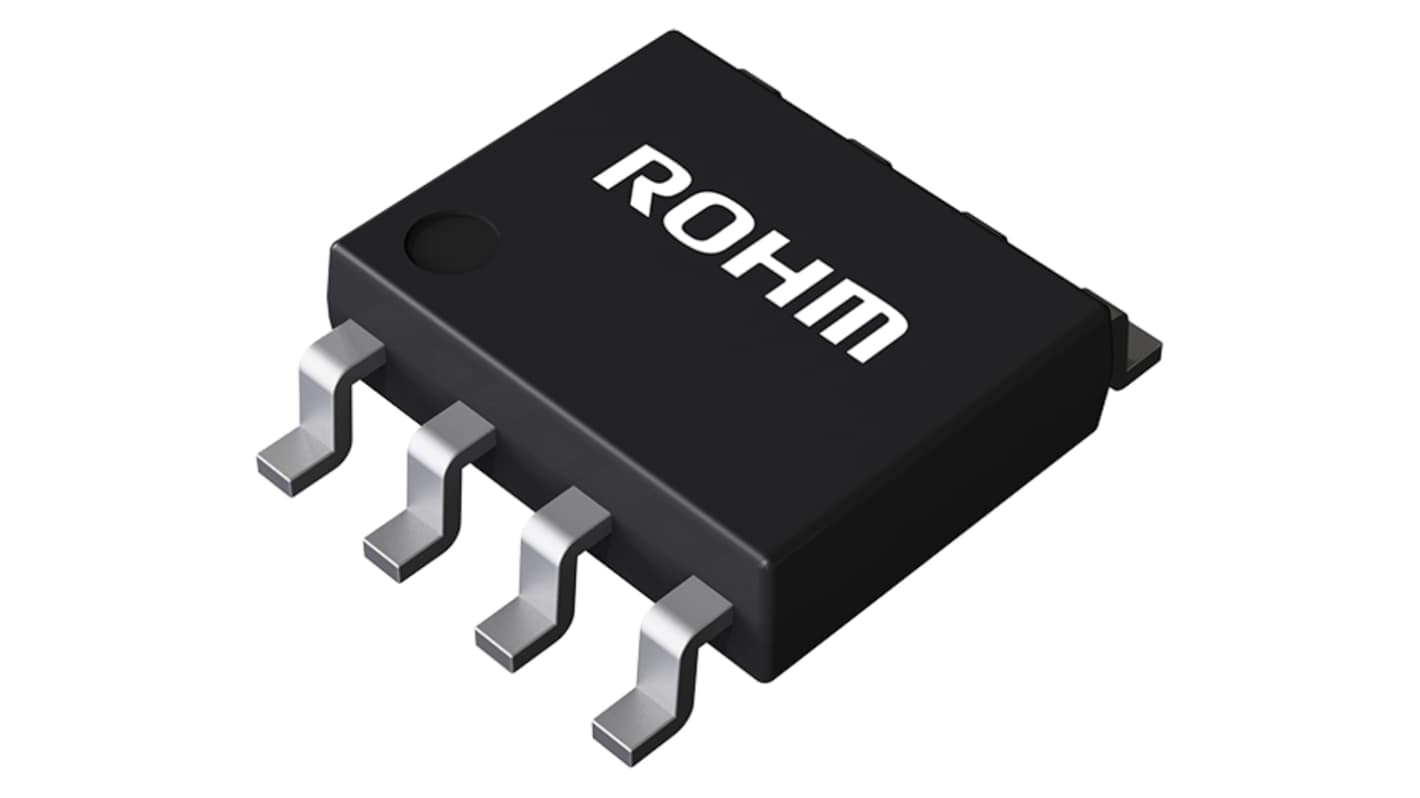

ROHM BR24G08FJ-5E2, 8 kB EEPROM 8-Pin SOP-J8 I2C
- N° de stock RS:
- 331-716
- Référence fabricant:
- BR24G08FJ-5E2
- Fabricant:
- ROHM
Offre groupée disponible
Sous-total (1 ruban de 20 unités)*
5,96 €
(TVA exclue)
7,22 €
(TVA incluse)
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité | Prix par unité | le ruban* |
|---|---|---|
| 20 - 180 | 0,298 € | 5,96 € |
| 200 - 480 | 0,283 € | 5,66 € |
| 500 - 980 | 0,262 € | 5,24 € |
| 1000 - 1980 | 0,241 € | 4,82 € |
| 2000 + | 0,232 € | 4,64 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 331-716
- Référence fabricant:
- BR24G08FJ-5E2
- Fabricant:
- ROHM
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | ROHM | |
| Memory Size | 8kB | |
| Product Type | EEPROM | |
| Interface Type | I2C | |
| Package Type | SOP-J8 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Clock Frequency | 1MHz | |
| Organisation | 1K x 8 bit | |
| Minimum Supply Voltage | 1.6V | |
| Number of Bits per Word | 8 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS Compliant | |
| Length | 6mm | |
| Height | 1.65mm | |
| Series | BR24G08xxx-5 | |
| Width | 4.9 mm | |
| Supply Current | 1mA | |
| Automotive Standard | No | |
| Data Retention | 200year | |
| Number of Words | 1024 | |
| Sélectionner tout | ||
|---|---|---|
Marque ROHM | ||
Memory Size 8kB | ||
Product Type EEPROM | ||
Interface Type I2C | ||
Package Type SOP-J8 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Clock Frequency 1MHz | ||
Organisation 1K x 8 bit | ||
Minimum Supply Voltage 1.6V | ||
Number of Bits per Word 8 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS Compliant | ||
Length 6mm | ||
Height 1.65mm | ||
Series BR24G08xxx-5 | ||
Width 4.9 mm | ||
Supply Current 1mA | ||
Automotive Standard No | ||
Data Retention 200year | ||
Number of Words 1024 | ||
The ROHM I2C Bus EEPROM is operates with a wide voltage range of 1.6V to 5.5V and supports high speed operation up to 1 MHz. It features a 1 K x 8 bit format. It offers prevention of miswriting WP Function added and prevention of miswriting at low voltage.
Low current consumption
Page write mode 16 byte
Initial delivery state FFh
