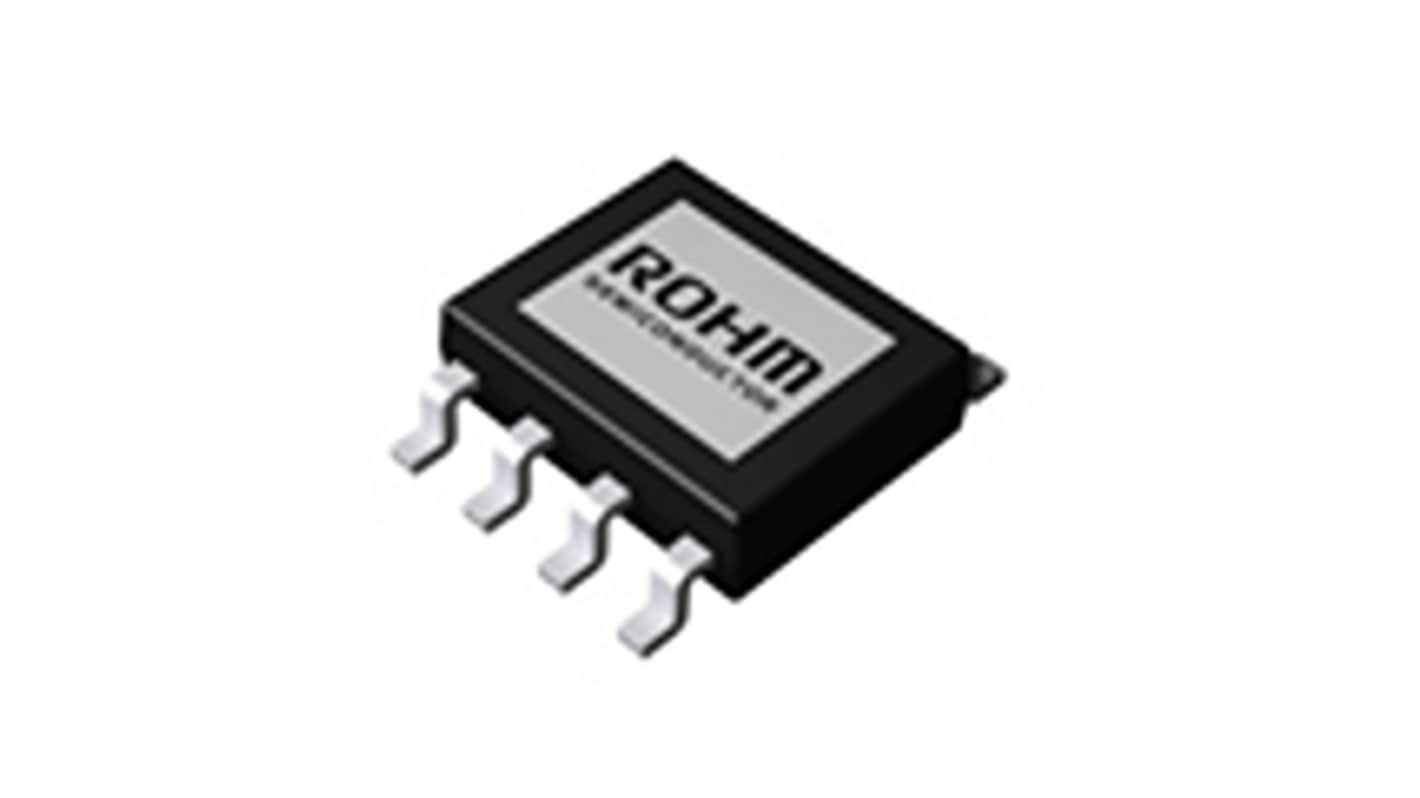

ROHM BR25H160FJ-5ACE2, 16 kB EEPROM 8-Pin SOP-J8 SPI
- N° de stock RS:
- 265-275
- Référence fabricant:
- BR25H160FJ-5ACE2
- Fabricant:
- ROHM
Offre groupée disponible
Sous-total (1 ruban de 10 unités)*
5,45 €
(TVA exclue)
6,59 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 100 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le ruban* |
|---|---|---|
| 10 - 90 | 0,545 € | 5,45 € |
| 100 - 240 | 0,518 € | 5,18 € |
| 250 - 490 | 0,48 € | 4,80 € |
| 500 - 990 | 0,442 € | 4,42 € |
| 1000 + | 0,425 € | 4,25 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 265-275
- Référence fabricant:
- BR25H160FJ-5ACE2
- Fabricant:
- ROHM
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | ROHM | |
| Product Type | EEPROM | |
| Memory Size | 16kB | |
| Interface Type | SPI | |
| Package Type | SOP-J8 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Clock Frequency | 20MHz | |
| Organisation | 2048 x 8 bit | |
| Minimum Supply Voltage | 1.7V | |
| Maximum Supply Voltage | 5.5V | |
| Number of Bits per Word | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Series | BR25H160xxx-5AC | |
| Standards/Approvals | AEC-Q100 | |
| Data Retention | 100year | |
| Number of Words | 2048 | |
| Automotive Standard | AEC-Q100 | |
| Sélectionner tout | ||
|---|---|---|
Marque ROHM | ||
Product Type EEPROM | ||
Memory Size 16kB | ||
Interface Type SPI | ||
Package Type SOP-J8 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Clock Frequency 20MHz | ||
Organisation 2048 x 8 bit | ||
Minimum Supply Voltage 1.7V | ||
Maximum Supply Voltage 5.5V | ||
Number of Bits per Word 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Series BR25H160xxx-5AC | ||
Standards/Approvals AEC-Q100 | ||
Data Retention 100year | ||
Number of Words 2048 | ||
Automotive Standard AEC-Q100 | ||
The ROHM 16 Kbit Serial EEPROM with SPI BUS interface is tailored for automotive applications and supports functional safety. It operates in SPI BUS mode with configurable clock polarity. This EEPROM features a page size of 32 bytes, organized in a bit format of 2048 x 8 bits. It also includes a 32 byte write lockable identification page and an address auto increment function during read operations, ensuring efficient data handling in automotive systems.
Auto erase and auto end function at data rewrite
Write protect block setting by software
HOLD function by the HOLDB pin
Prevention of write mistake
Prevention of write mistake at low voltage
