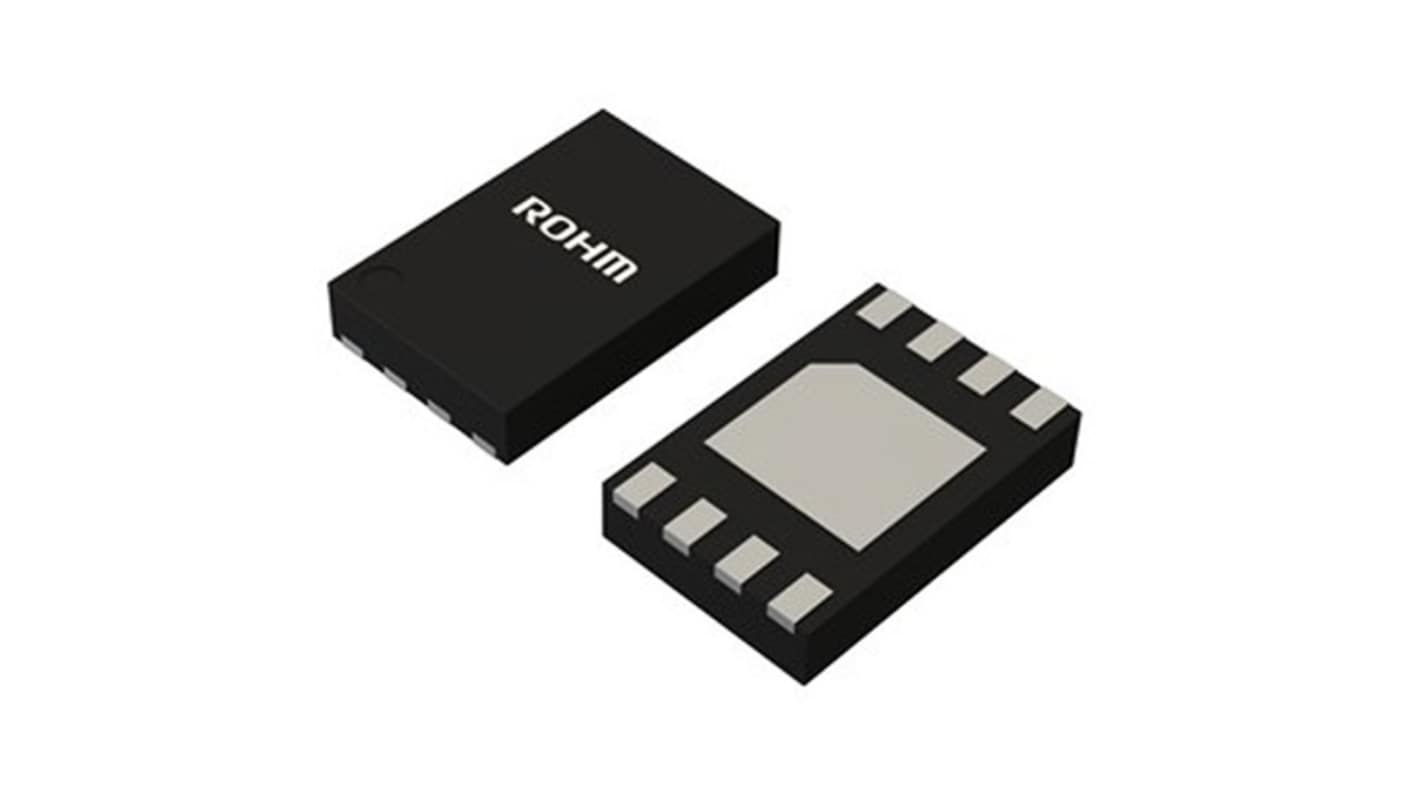

ROHM BR24H08ANUX-5ACTR, 8 kB EEPROM 8-Pin VSON08AX2030 I2C
- N° de stock RS:
- 264-770
- Référence fabricant:
- BR24H08ANUX-5ACTR
- Fabricant:
- ROHM
Offre groupée disponible
Sous-total (1 ruban de 10 unités)*
5,80 €
(TVA exclue)
7,00 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 100 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le ruban* |
|---|---|---|
| 10 - 90 | 0,58 € | 5,80 € |
| 100 - 240 | 0,551 € | 5,51 € |
| 250 - 490 | 0,51 € | 5,10 € |
| 500 - 990 | 0,469 € | 4,69 € |
| 1000 + | 0,452 € | 4,52 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 264-770
- Référence fabricant:
- BR24H08ANUX-5ACTR
- Fabricant:
- ROHM
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | ROHM | |
| Product Type | EEPROM | |
| Memory Size | 8kB | |
| Interface Type | I2C | |
| Package Type | VSON08AX2030 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Clock Frequency | 1MHz | |
| Organisation | 1K x 8 bit | |
| Minimum Supply Voltage | 1.7V | |
| Maximum Supply Voltage | 5.5V | |
| Number of Bits per Word | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | AEC-Q100 | |
| Series | BR24H08xxx-5AC | |
| Height | 1.71mm | |
| Width | 5 mm | |
| Length | 6.4mm | |
| Supply Current | 1.7mA | |
| Data Retention | 100year | |
| Automotive Standard | AEC-Q100 | |
| Number of Words | 1024 | |
| Sélectionner tout | ||
|---|---|---|
Marque ROHM | ||
Product Type EEPROM | ||
Memory Size 8kB | ||
Interface Type I2C | ||
Package Type VSON08AX2030 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Clock Frequency 1MHz | ||
Organisation 1K x 8 bit | ||
Minimum Supply Voltage 1.7V | ||
Maximum Supply Voltage 5.5V | ||
Number of Bits per Word 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals AEC-Q100 | ||
Series BR24H08xxx-5AC | ||
Height 1.71mm | ||
Width 5 mm | ||
Length 6.4mm | ||
Supply Current 1.7mA | ||
Data Retention 100year | ||
Automotive Standard AEC-Q100 | ||
Number of Words 1024 | ||
The ROHM EEPROM for automotive applications features an I²C bus with a high-speed write cycle and high endurance. It operates at temperatures up to 125°C and is AEC-Q100 qualified grade 1. All controls are accessible through two ports: serial clock SCL and serial data SDA. It supports a wide operating voltage range from 1.7V to 5.5V and enables 1 MHz operation. The page write mode allows 16-byte data storage with a bit format of 1K x 8-bit.
Low Current Consumption
Prevention of Miswriting
WP (Write Protect) Function Added
Prevention of Miswriting at Low Voltage
Noise Filter Built into SCL or SDA Pin
Initial Delivery State FFh
