Piccolo Polycarbonate Enclosures

Piccolo polycarbonate enclosure boxes are versatile and suitable for mounting in upright positions. The enclosures are designed for use with push-buttons, junction boxes, pilot lamps, terminal blocks, motor starters and various other electronic devices. Excellent for mounting and protecting process control sensors and switches. The enclosure boxes are light grey RAL 7035 with an IP rating IP67.

Features and Benefits:

Shock resistant
Base with screws to attach the mounting plate or DIN rail inside the box
Lid with PUR gasket and polyamide lid screws
External Height dimension includes lid thickness

Installation Position:

Upright – on a wall, pole or frame

Ratings:

Ingress protection EN 60529 IP66 / IP67

Impact resistance EN 62262 IK08

Totally electrically insulated

Halogen free DIN / VDE 0472, Part 815 – 1

UV resistance UL 508

Flammability rating UL 746C 5V

Glow wire test (IEC 695-2-1) °C – 960

NEMA 1, 4X, 6, 12, 13

Material:

Polycarbonate enclosure box

Polyamide screws

Polyurethane gasket

Temperature Ranges:

Short term -40°C to 120°C

Continuous -40°C to 80°C

Transparent lids are available for the following stock numbers: 1195531, 1195553, 1195575, 1195604, 1882241, 1882263, 1882285

Note

* Depending on orientation of box

Sélectionner tout	Attribut	Valeur
	Marque	Fibox
	Compatibility	Top Hat
	Length	140mm
	Width	35mm
	Height	8mm
	DIN Rail Type	Unperforated
	Material	Steel

	Sélectionner tout
	Marque Fibox
	Compatibility Top Hat
	Length 140mm
	Width 35mm
	Height 8mm
	DIN Rail Type Unperforated
	Material Steel

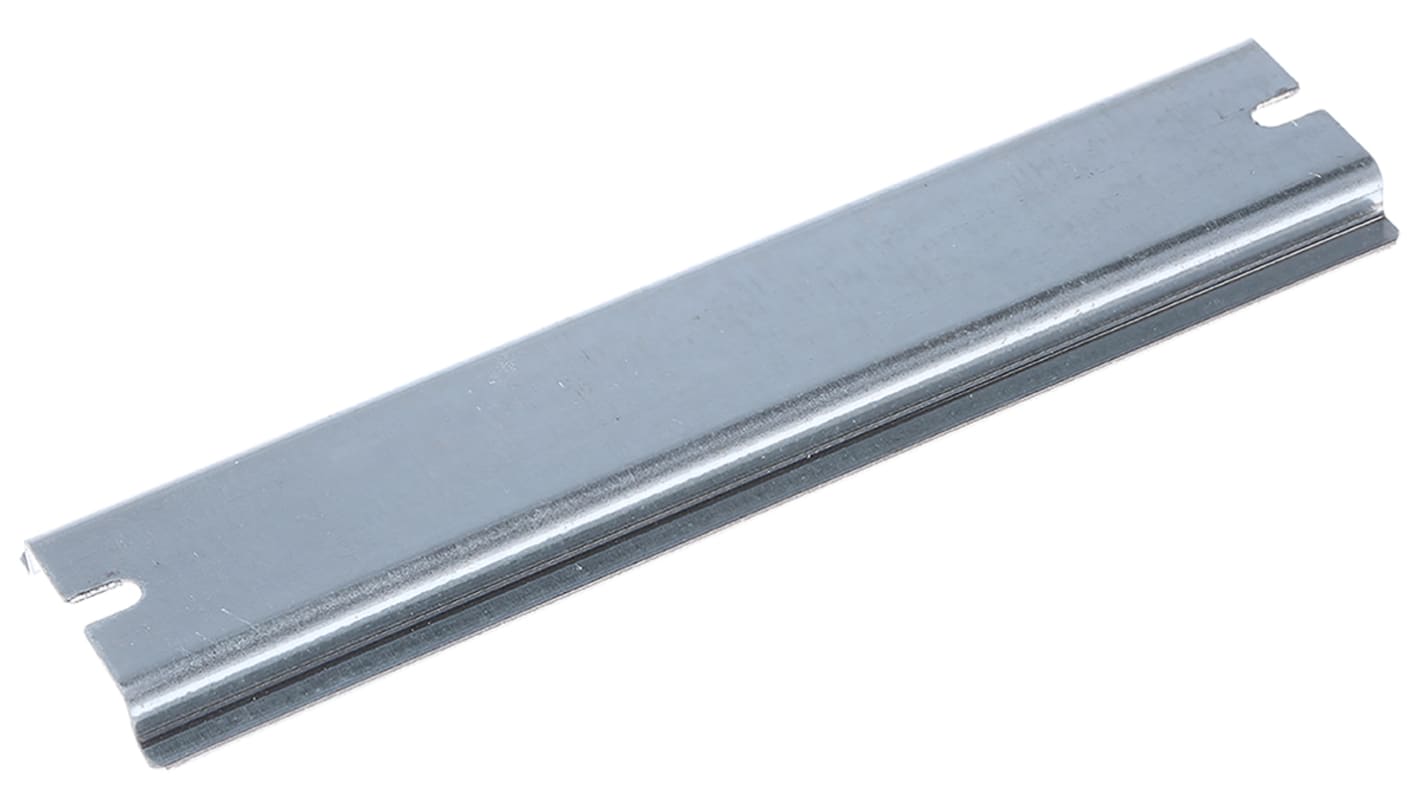

Fibox Steel Unperforated DIN Rail, Top Hat Compatible, 140mm x 35mm x 8mm
