Références fabricant

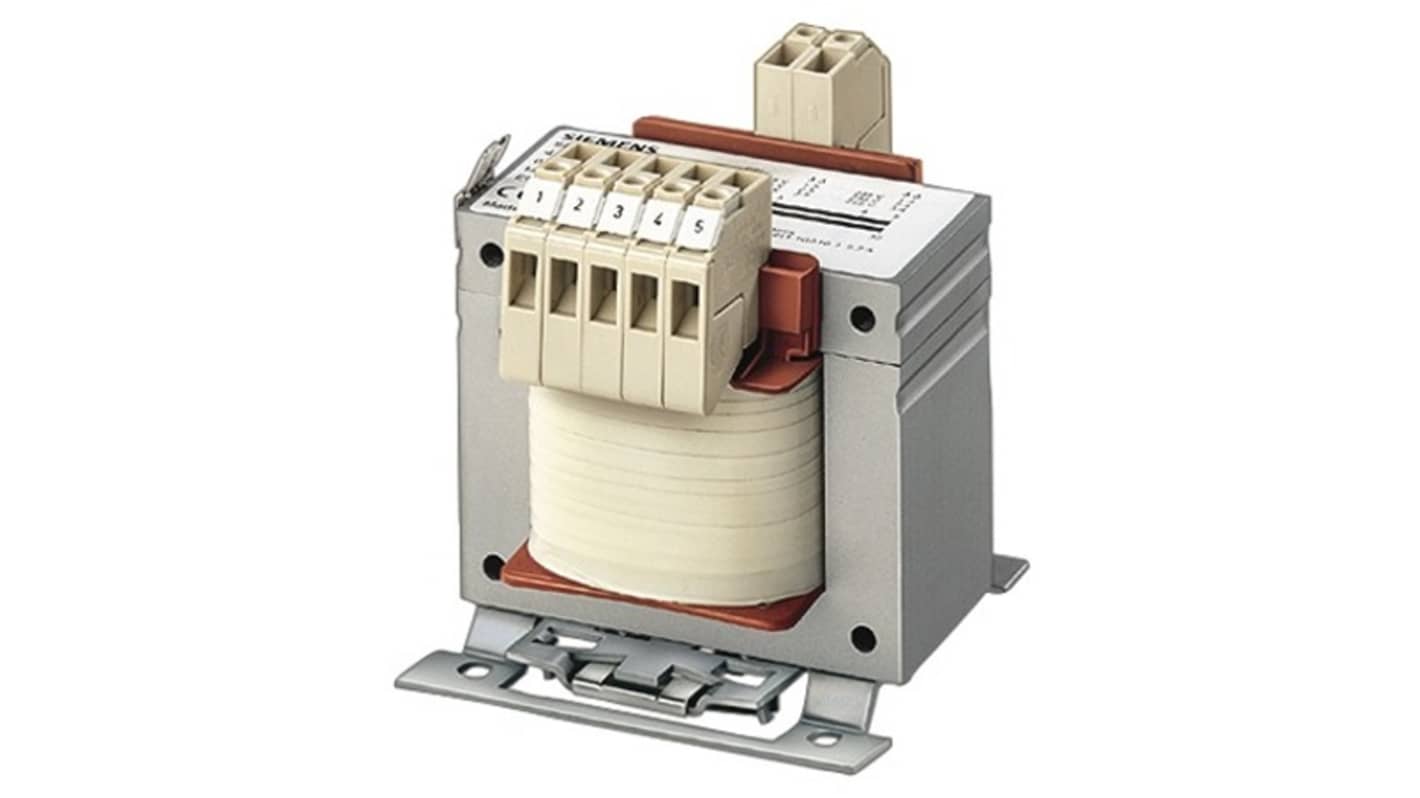

Siemens 63 VA DIN Rail Transformer, 400 V Primary, 230 V Secondary, CE

N° de stock RS:: 218-867
Numéro d'article Distrelec:: 156-01-082
Référence fabricant:: 4AM3242-5AT10-0FA0
Fabricant:: Siemens

Siemens 63 VA DIN Rail Transformer, 400 V Primary, 230 V Secondary, CE

Sous-total (1 unité)*

93,67 €

(TVA exclue)

113,34 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

En stock

3 unité(s) prête(s) à être expédiée(s)

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	93,67 €

*Prix donné à titre indicatif

N° de stock RS:: 218-867
Numéro d'article Distrelec:: 156-01-082
Référence fabricant:: 4AM3242-5AT10-0FA0
Fabricant:: Siemens

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Siemens
	Primary Voltage	400 V
	Product Type	DIN Rail Transformer
	Secondary Voltage	230 V
	Mount Type	Screw
	Number of Outputs	1
	Length	98mm
	Width	86mm
	Power	63VA
	Depth	90mm
	Minimum Operating Frequency	50Hz
	Maximum Operating Frequency	60Hz
	Weight	1645kg
	Series	sITAS
	Standards/Approvals	CE
	Maximum Operating Temperature	40°C

	Sélectionner tout
	Marque Siemens
	Primary Voltage 400 V
	Product Type DIN Rail Transformer
	Secondary Voltage 230 V
	Mount Type Screw
	Number of Outputs 1
	Length 98mm
	Width 86mm
	Power 63VA
	Depth 90mm
	Minimum Operating Frequency 50Hz
	Maximum Operating Frequency 60Hz
	Weight 1645kg
	Series sITAS
	Standards/Approvals CE
	Maximum Operating Temperature 40°C

Datasheet - 4AM3242-5AT10-0FA0

Pays d'origine :: CZ

Siemens sITAS Series DIN Rail Transformer, 63VA Power, 400V Primary Voltage - 4AM3242-5AT10-0FA0

This DIN rail transformer converts three-phase 400V supply to a single-phase 230V output for control and auxiliary circuits in industrial installations. It is designed for mounting on standard DIN rail systems and terminated using screw and tab connections, making it suitable for Compact control panels and equipment racks.

Features and Benefits:

• 63 VA rating provides adequate power for control circuits and small loads
• Single output delivers a stable 230V secondary for downstream devices
• Operates across 50 Hz-60 Hz frequencies for flexible deployment
• Screw termination and tab options simplify wiring and maintenance
• CE approval meets common regulatory expectations for equipment integration
• Mounts with screw fixing for secure installation on rail assemblies

Applications

• Suitable for automation control panels requiring 230V auxiliary supply
• Ideal for powering sensors and relays in electrical cabinets
• Used for small motor control circuits in mechanical systems
• Can be used for retrofit of existing switchgear with Compact space
• Used with PLCs and Interface modules that need isolated 230 V

What ambient temperature range can it handle during operation?

It is specified for operation up to a maximum ambient temperature of 40 °C.

How is the unit physically accommodated within a cabinet?

The Compact enclosure measures width 0.086 m by length 0.098 m and depth 0.09 m for space-efficient mounting.

What electrical safety or conformity mark does it carry?

It is marked with CE to indicate conformity with applicable directives.

What connection methods are provided for primary and secondary circuits?

Both screw terminals and tab connectors are provided to suit different wiring practices.

How heavy is the device for considerations of panel loading?

The unit has a mass of 1645 g, which should be accounted for in rail and enclosure load calculations.
