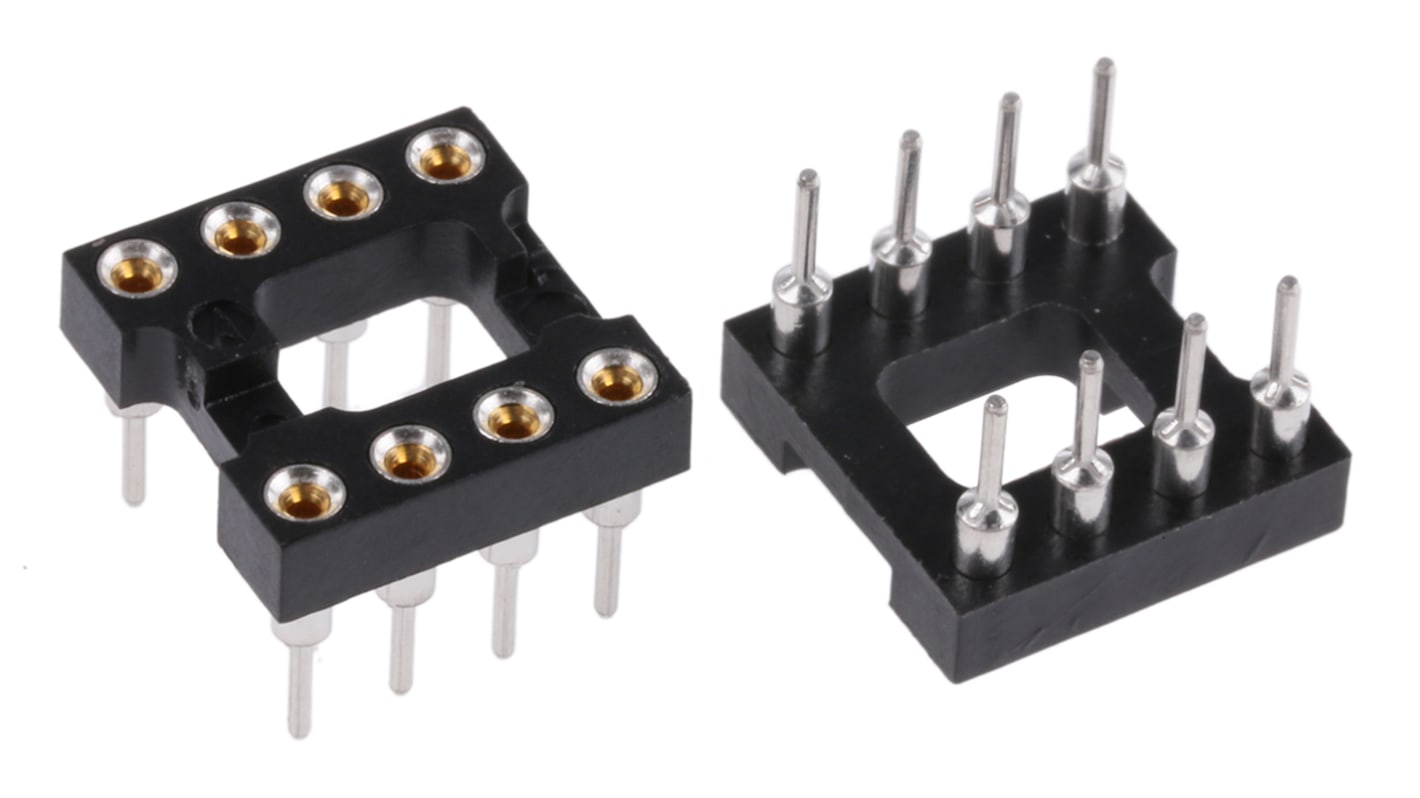

TE Connectivity, DIPLOMATE 800 2.54 mm Pitch Vertical 8 Way, Through Hole Turned Pin Open Frame DIL Socket, 3A
- N° de stock RS:
- 680-1534
- Référence fabricant:
- 2-1571586-2
- Fabricant:
- TE Connectivity
Sous-total (1 paquet de 5 unités)*
10,34 €
(TVA exclue)
12,51 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- Plus 125 unité(s) expédiée(s) à partir du 16 mars 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 5 + | 2,068 € | 10,34 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 680-1534
- Référence fabricant:
- 2-1571586-2
- Fabricant:
- TE Connectivity
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | TE Connectivity | |
| Product Type | DIL Socket | |
| Number of Contacts | 8 | |
| Mount Type | Through Hole | |
| Pin Type | Turned | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Row Width | 7.62mm | |
| Frame Type | Open Frame | |
| Contact Plating | Tin, Gold | |
| Orientation | Vertical | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Length | 10.16mm | |
| Standards/Approvals | No | |
| Width | 4.57 mm | |
| Depth | 10.16mm | |
| Housing Material | Polycyclohexylenedimethylene Terephthalate | |
| Contact Material | Beryllium Copper Alloy | |
| Series | DIPLOMATE 800 | |
| Sélectionner tout | ||
|---|---|---|
Marque TE Connectivity | ||
Product Type DIL Socket | ||
Number of Contacts 8 | ||
Mount Type Through Hole | ||
Pin Type Turned | ||
Current 3A | ||
Pitch 2.54mm | ||
Row Width 7.62mm | ||
Frame Type Open Frame | ||
Contact Plating Tin, Gold | ||
Orientation Vertical | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Length 10.16mm | ||
Standards/Approvals No | ||
Width 4.57 mm | ||
Depth 10.16mm | ||
Housing Material Polycyclohexylenedimethylene Terephthalate | ||
Contact Material Beryllium Copper Alloy | ||
Series DIPLOMATE 800 | ||
TE Connectivity DIPLOMATE 800 Series Open Frame DIP Socket Connectors
DIPLOMATE 800 Series DIP socket connectors with a standard profile,ladder style open frame and 2.54mm centreline. These 800 series PCB through hole mount DIP sockets have gold plated screw machined contacts, UL 94V-0 housings and a 2.67mm height above the PCB.
