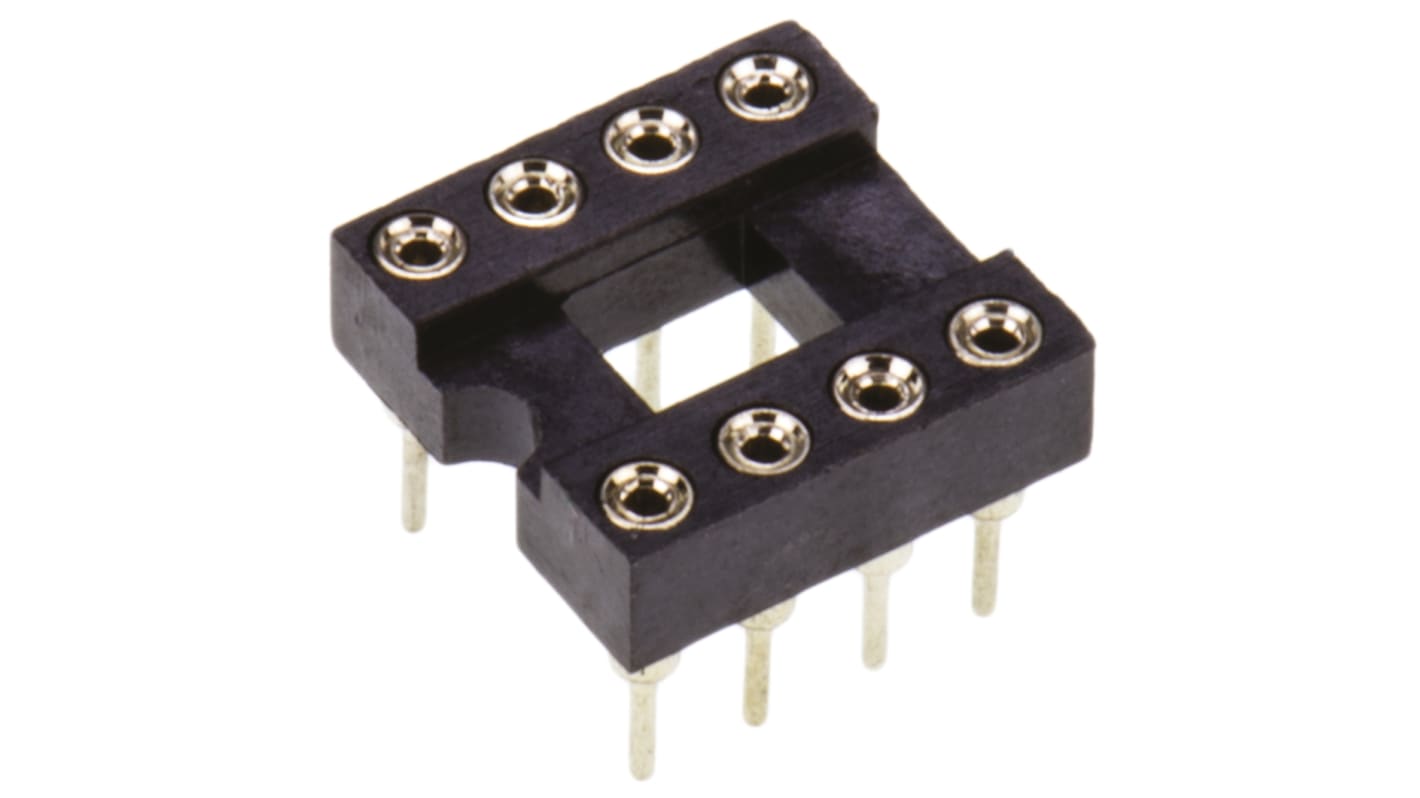

Winslow 2.54mm Pitch Vertical 8 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 5A
- N° de stock RS:
- 197-2647
- Référence fabricant:
- W30508TTRC
- Fabricant:
- Winslow
1150 En stock, livraison sous 1 jour(s) (stock Europe)
9150 En stock, livraison sous 3 à 5 jours (stock Europe)
Ajouté
Prix L'unité (dans un tube de 50)
0,227 €
(TVA exclue)
0,275 €
(TVA incluse)
| Unité | Prix par unité | le tube* |
| 50 - 1200 | 0,227 € | 11,35 € |
| 1250 - 3700 | 0,205 € | 10,25 € |
| 3750 - 9950 | 0,181 € | 9,05 € |
| 10000 - 19950 | 0,159 € | 7,95 € |
| 20000 + | 0,147 € | 7,35 € |
| *prix conseillé | ||
- N° de stock RS:
- 197-2647
- Référence fabricant:
- W30508TTRC
- Fabricant:
- Winslow
Documentation technique
Législations et de normes
Détails du produit
Low Profile, Turned Pin
Low profile high-quality machined contact d.i.l. sockets comprising a four-finger (3 to 5 microns) tin over nickel-plated beryllium-copper inner contact, with a tin-plated brass outer shell.
Temperature Range: -55°C to +150 °C
Temperature Range: -55°C to +150 °C
Spécifications
Attribut | Valeur |
|---|---|
| Number of Contacts | 8 |
| Mounting Type | Through Hole |
| Pin Type | Turned |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Open Frame |
| Termination Method | Solder |
| Contact Plating | Tin |
| Current Rating | 5A |
| Orientation | Vertical |
| Length | 10.08mm |
| Width | 4.6mm |
| Depth | 10.14mm |
| Dimensions | 10.08 x 4.6 x 10.14mm |
| Minimum Operating Temperature | -65°C |
| Housing Material | PBT |
| Contact Material | Beryllium Copper |
| Maximum Operating Temperature | +150°C |
