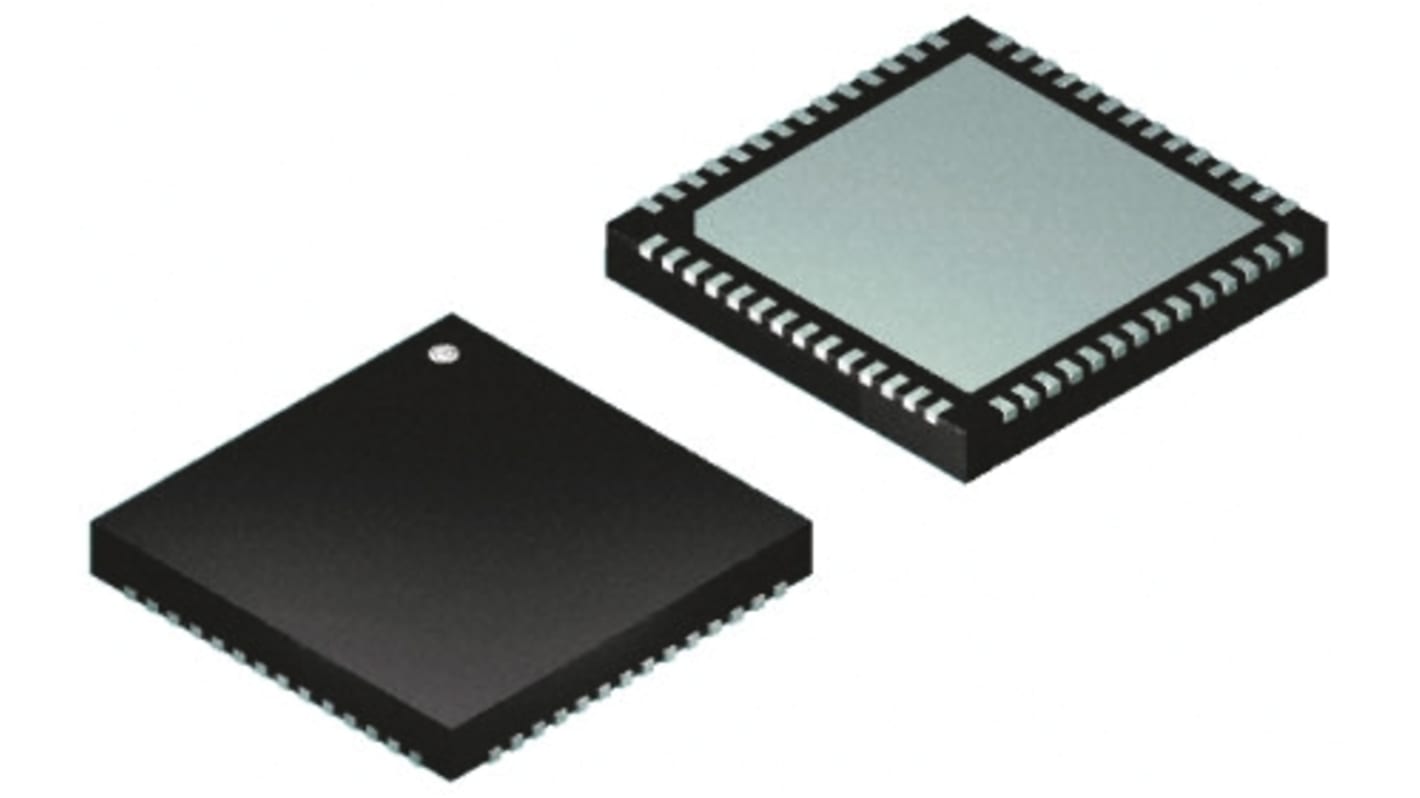

DSPIC33FJ128MC804-E/ML Microchip, 16bit Digital Signal Processor 40MHz 128 kB Flash 44-Pin QFN

Voir la catégorie
Indisponible
RS n'aura plus ce produit en stock.
Options de conditionnement :
N° de stock RS:
823-7847
Référence fabricant:
DSPIC33FJ128MC804-E/ML
Fabricant:
Microchip
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Microchip

Maximum Frequency

40MHz

Data Bus Width

16bit

RAM Size

16 kB

Instruction Set Architecture

Harvard

Program Memory Size

128 kB

Program Memory Type

Flash

Mounting Type

Surface Mount

Package Type

QFN

Pin Count

44

Typical Operating Supply Voltage

3 to 3.6 V

Number of UART Channels

2

Number of Timers

5

Number of I2C Channels

1

Number of PCI Channels

0

PWM Channels

8

Width

8mm

Height

0.95mm

Number of USART Channels

0

Number of Ethernet Channels

0

USB Channels

0

Number of SPI Channels

2

Pulse Width Modulation

4 (8 x 16 bit)

Number of LIN Channels

0

Timers

5 x 16 bit

Dimensions

8 x 8 x 0.95mm

Number of PWM Units

4

Length

8mm

ADC Resolution

10 bit, 12bit

ADC Channels

9

ADCs

1(9 x 10/12 bit)

Timer Resolution

16bit

Number of CAN Channels

1

PWM Resolution

16bit

Maximum Operating Temperature

+125 °C

Minimum Operating Temperature

-40 °C

Number of ADC Units

1

Pays d'origine :
TH

dsPIC33F Digital Signal Controllers


The dsPIC33F Digital Signal Controllers offer the performance of a DSP with the simplicity of an MCU. The 40MIPS dsPIC33F core is designed to execute digital filter algorithms, high-speed precision digital control loops and digital audio and speech processing.
dsPIC33F DSCs with Motor Control peripherals enable the design of high-performance, precision motor control systems. The dsPIC33F SMPS DSCs provide on-chip peripherals specifically designed for high-performance, digital power supplies. SMPS peripherals include high speed and high resolution PWM, fast ADC and analogue comparators.
