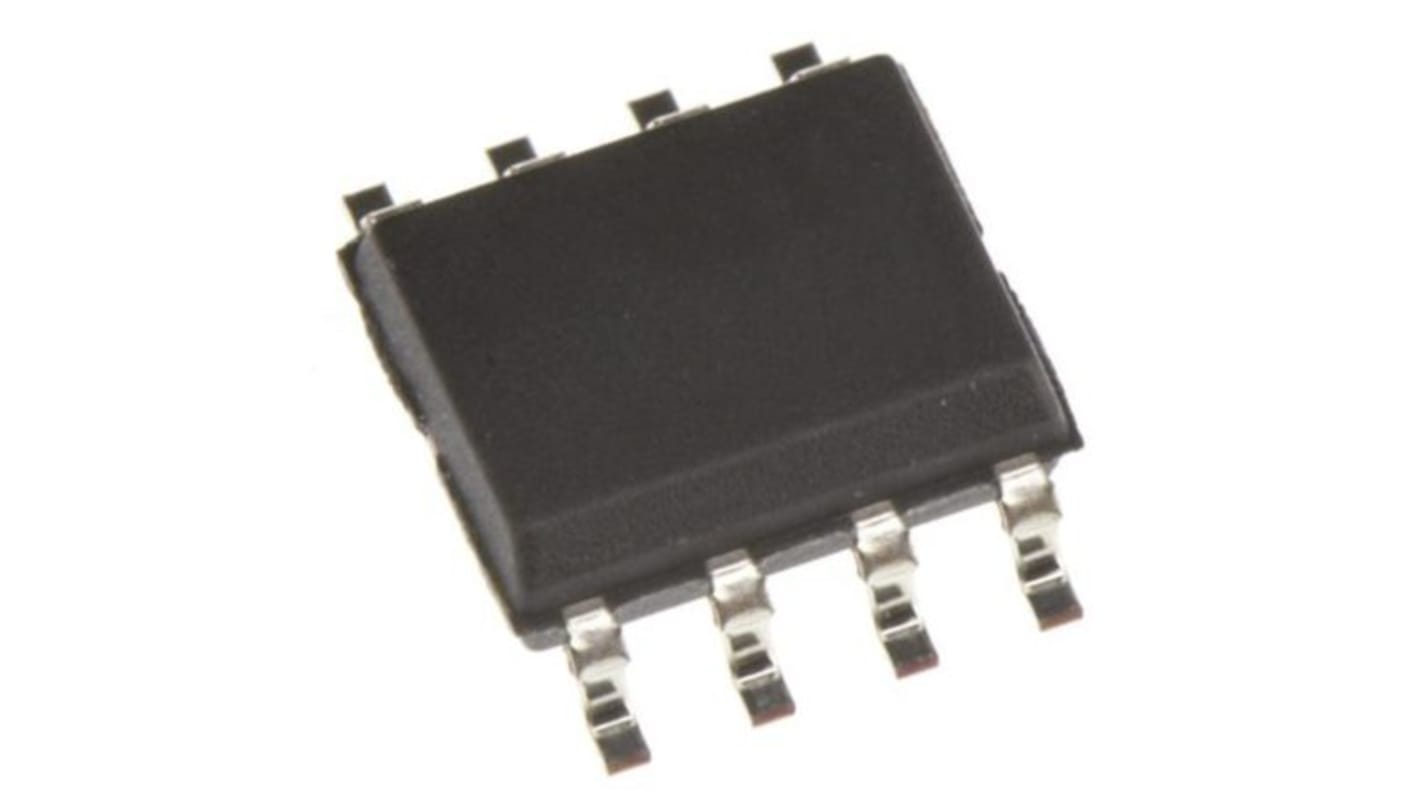

Renesas Electronics Zero Delay Buffer Clock Conditioner 8-Pin SOIC

N° de stock RS:: 217-7862
Référence fabricant:: 570BLF
Fabricant:: Renesas Electronics

Renesas Electronics Zero Delay Buffer Clock Conditioner 8-Pin SOIC

Offre groupée disponible

Sous-total (1 paquet de 5 unités)*

13,26 €

(TVA exclue)

16,045 €

(TVA incluse)

Ajouter 35 unités pour bénéficier d'une livraison gratuite

Commandes ci-dessous 75,00 € coût (TVA exclue) 5,95 €.

Dernier stock RS

45 dernière(s) unité(s), prête(s) à l'envoi d'un autre centre de distribution

Unité	Prix par unité	le paquet*
5 - 5	2,652 €	13,26 €
10 - 20	2,256 €	11,28 €
25 - 45	2,212 €	11,06 €
50 - 95	2,164 €	10,82 €
100 +	1,918 €	9,59 €

*Prix donné à titre indicatif

N° de stock RS:: 217-7862
Référence fabricant:: 570BLF
Fabricant:: Renesas Electronics

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Renesas Electronics
	Product Type	Clock Conditioner
	Sub Type	Zero Delay Buffer
	Mount Type	Surface
	Package Type	SOIC
	Minimum Supply Voltage	3.15V
	Pin Count	8
	Maximum Supply Voltage	3.45V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	No
	Height	1.75mm
	Series	ICS570
	Length	5mm
	Width	4 mm
	Automotive Standard	No

	Sélectionner tout
	Marque Renesas Electronics
	Product Type Clock Conditioner
	Sub Type Zero Delay Buffer
	Mount Type Surface
	Package Type SOIC
	Minimum Supply Voltage 3.15V
	Pin Count 8
	Maximum Supply Voltage 3.45V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Standards/Approvals No
	Height 1.75mm
	Series ICS570
	Length 5mm
	Width 4 mm
	Automotive Standard No

Datasheet - 570BLF

The Renesas Electronics IDT570 is a high-performance Zero Delay Buffer (ZDB) which integrates IDT's proprietary analog/digital Phase Locked Loop (PLL) techniques. The A version is recommended for 5 V designs and the B version for 3.3 V designs. The chip is part of IDT's ClockBlocks™ family, and was designed as a performance upgrade to meet today's higher speed and lower voltage requirements. The zero delay feature means that the rising edge of the input clock aligns with the rising edges of both output clocks, giving the appearance of no delay through the device. There are two outputs on the chip, one being a low-skew divide by two of the other output.

Functional equivalent to AV9170 (not a pin-for-pin replacement).

Low input to output skew of 300 ps max (>60 MHz outputs)

Low skew (100ps) outputs. One is ÷ 2 of other

Ability to choose between 14 different multipliers from 0.5X to 32X

Output clock frequency up to 168 MHz at 3.3 V

Can recover degraded input clock duty cycle
