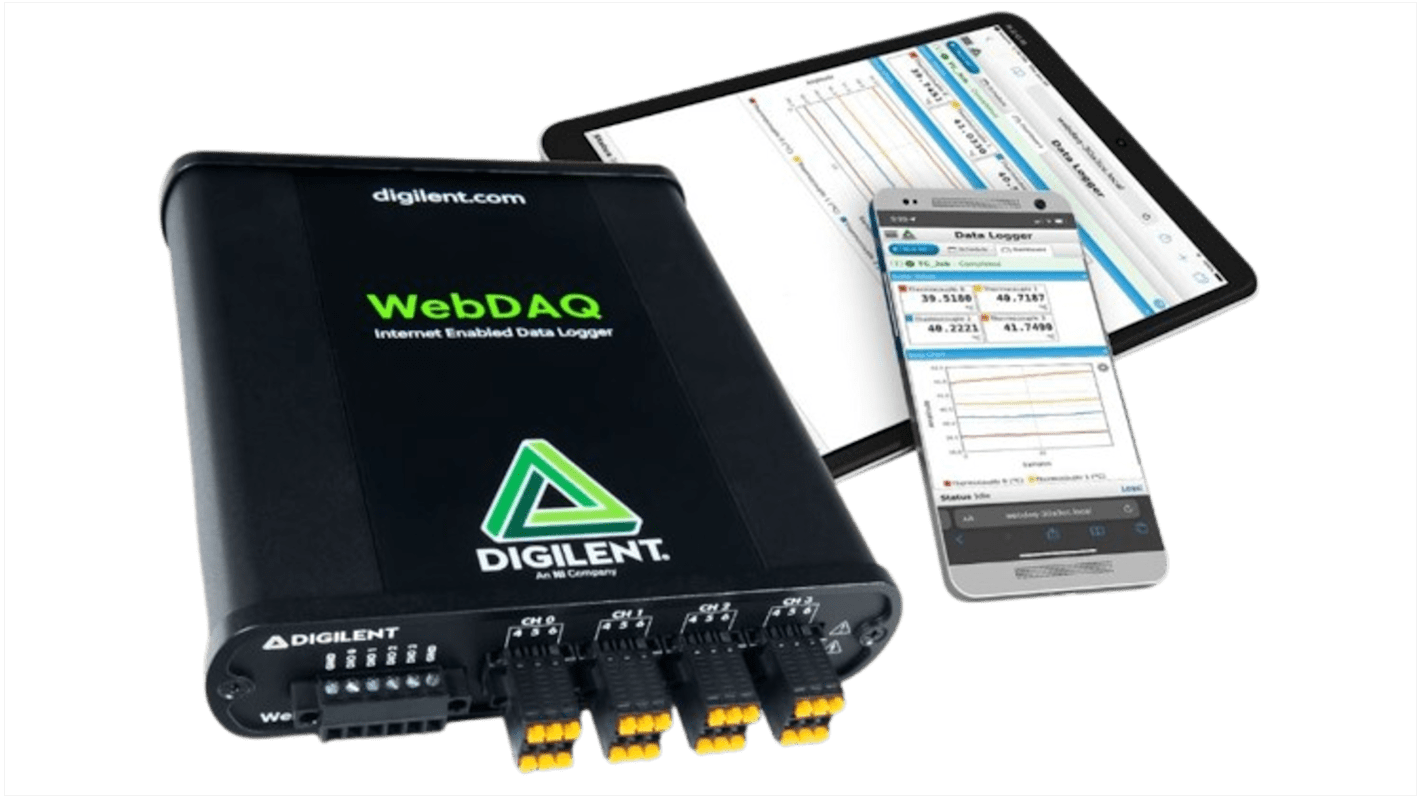

Digilent WebDAQ 904 I/O Sensor Data Logger, 4 Channel

Voir l’ensemble des Data Loggers
Temporairement en rupture de stock
N° de stock RS:
219-250
Numéro d'article Distrelec:
304-26-267
Référence fabricant:
6069-410-007-1
Fabricant:
Digilent
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Digilent

Product Type

Data Logger

Model Number

WebDAQ 904

Measurement Parameters

Input

Number of Channels

4

Data Logger Type

I/O Sensor

Power Source

External power supply

IP Rating

IP30

Minimum Operating Temperature

0°C

Maximum Operating Temperature

50°C

Hazardous Area Certification

No

Length

158.8mm

Height

38.1mm

Standards/Approvals

NIST

Width

146.1mm

Resolution

24 bit

Alarm

Yes

Number of Readings per Channel

100

The Digilent stand-alone universal input logger designed for remote monitoring and control. All the intelligence is built into the WebDAQ, eliminating the need for

a PC or additional software. By using the embedded WebDAQ web server, users can easily configure simple or sophisticated applications, log sensor data, update digital outputs and/or send notifications based on alarm conditions, and view real-time data from any location and any device with a web browser.

No driver software to install

Built-in web server

Remote monitoring and control

WiFi support

100 S/s/ch sample rate

24-bit resolution

A/D per channel

4 DIO for triggers and alarms
