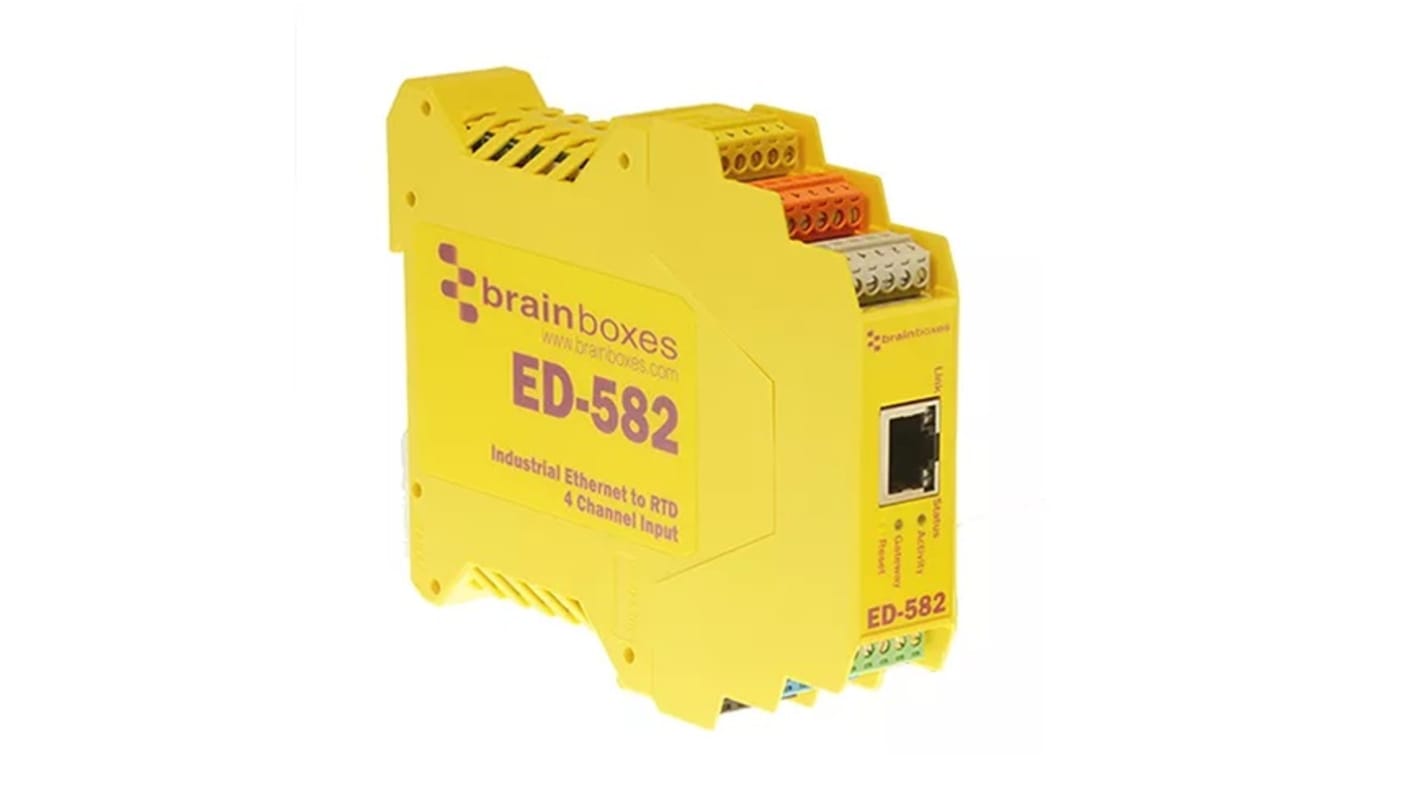

Brainboxes ED 582 Data Acquisition 4-Channel, Ethernet, 16 bit

Voir la catégorie

Sous-total (1 unité)*

465,76 €

(TVA exclue)

563,57 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité
Prix par unité
1 +465,76 €

*Prix donné à titre indicatif

N° de stock RS:
220-7278
Numéro d'article Distrelec:
302-48-324
Référence fabricant:
ED-582
Fabricant:
Brainboxes
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Brainboxes

Product Type

Data Acquisition

Resolution

16 bit

Number of Channels

4

Connectivity

Ethernet

Power Source

5 V, 30 V

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

80°C

Width

23 mm

Length

129mm

Height

102mm

Standards/Approvals

IEC/EN 60751, JIS C16041987, Ni120, RTD1000 375, US Industrial, International

Weight

0.225kg

Model Number

ED 582

Pays d'origine :
GB
The Brainboxes Ethernet to RTD has 4 high precision RTD inputs. This device can be controlled over simple ASCII TCP protocol or ASCII over virtual COM port. Its integral DIN mount and slim design takes up minimal cabinet space. It has powerful ARM 120MHz, 32 bit CPU. The digital output port line are implemented as protected output circuits, providing current overload and short circuit protection, voltage surge, overload and open circuit protection and over temperature protection to allow the widest possible usage and range of devices. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C sharp, C++, Java, JavaScript, PHP and more.

IP20 rated

Operating temperature range -30°C to +80°C

Supports simple ASCII 1 Ethernet port

Integral DIN rail clip with earth
