Belimo Modulating Damper Actuator, 10 Nm, 24 V ac/dc
- N° de stock RS:
- 504-1270
- Référence fabricant:
- NM24A-SR
- Fabricant:
- Belimo
Sous-total (1 unité)*
312,00 €
(TVA exclue)
377,52 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 13 unité(s) prête(s) à être expédiée(s)
- Plus 20 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 312,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 504-1270
- Référence fabricant:
- NM24A-SR
- Fabricant:
- Belimo
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Belimo | |
| Product Type | Damper Actuator | |
| Maximum Damper Area | 2m² | |
| Switch Included | Yes | |
| Power Consumption | 2W | |
| Control Type | Modulating | |
| Supply Voltage | 24 V ac/dc | |
| Motor Torque | 10Nm | |
| IP Rating | IP54 | |
| Noise Level | 35dBA | |
| Maximum Damper Spindle Size | 26.7mm | |
| Running Time | 150s | |
| Angle of Rotation | 95° | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 50°C | |
| Minimum Damper Spindle Size | 8mm | |
| Standards/Approvals | EN, RoHS, CE | |
| Sélectionner tout | ||
|---|---|---|
Marque Belimo | ||
Product Type Damper Actuator | ||
Maximum Damper Area 2m² | ||
Switch Included Yes | ||
Power Consumption 2W | ||
Control Type Modulating | ||
Supply Voltage 24 V ac/dc | ||
Motor Torque 10Nm | ||
IP Rating IP54 | ||
Noise Level 35dBA | ||
Maximum Damper Spindle Size 26.7mm | ||
Running Time 150s | ||
Angle of Rotation 95° | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 50°C | ||
Minimum Damper Spindle Size 8mm | ||
Standards/Approvals EN, RoHS, CE | ||
- Pays d'origine :
- CH

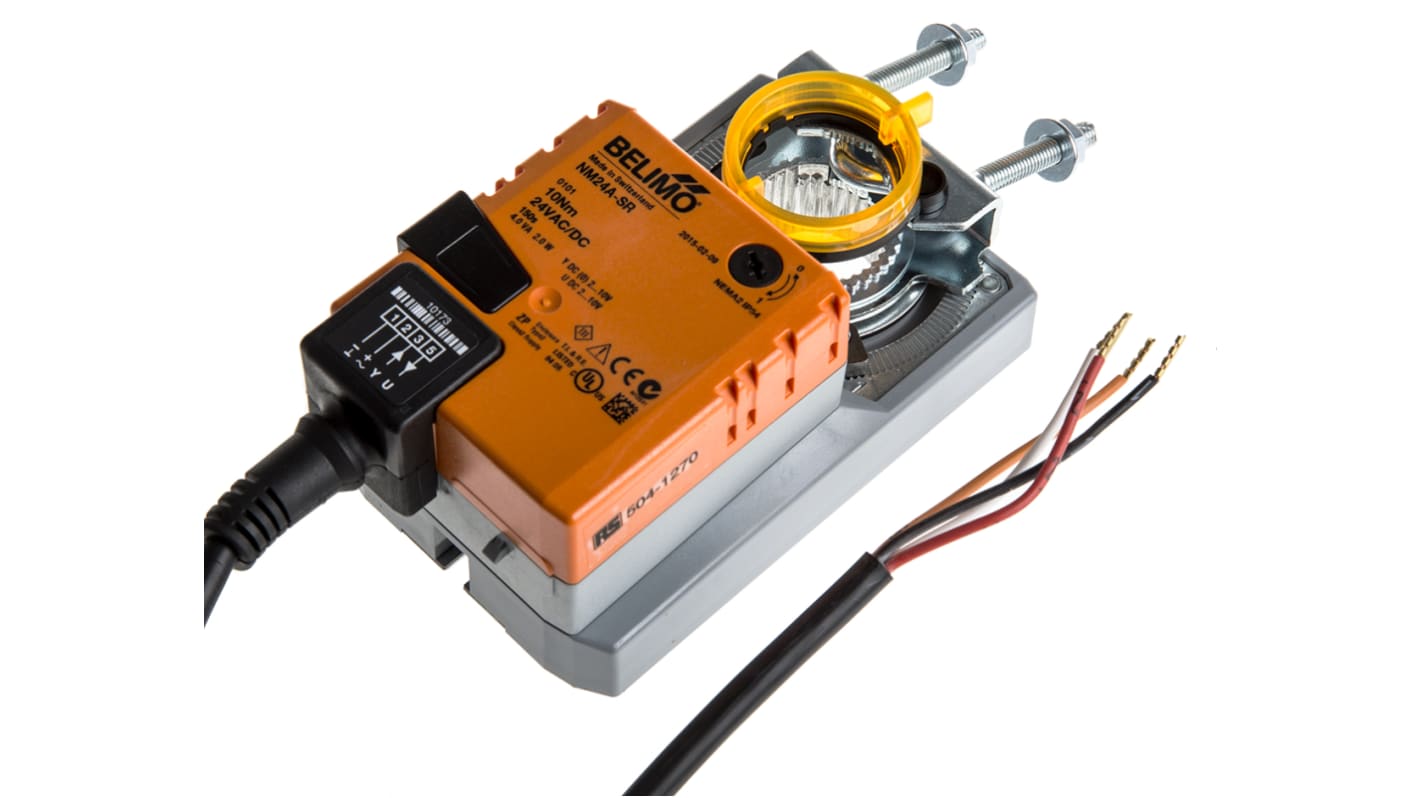

Belimo Damper Actuator
The Belimo damper actuator has a modulating control type. This actuator has an adjustable U-clamp, which accepts round or square shafts. It is a rotary/louver actuator. It is compatible with all the leading makes of HVAC controls. The damper actuator is used for adjusting air dampers in ventilation and air-conditioning systems installed in buildings. This actuator operates on stall torque technology, which does not require end switches. The damper actuator has no limit switches and is overload proof. It requires 24VAC/VDC supply voltage.
Optional auxiliary switch (stock no. 504-1545) suitable for use with LM, NM, SM, and GM damper actuators, features 2xSPDT switches rated at 3 (0.5)A 250Vac and supplied with 1m of cable.
Features and Benefits
Operation life is minimum 60000
Pushbutton manual override
Direction change switch
Cable length is 1m
Ambient temperature ranges between -30°C and 50°C
Maintenance free
Low power consumption up to 2W
Maximum damper area is 2m²
Damper spindle compatibility ranges between 8mm and 26.7mm
Motor torque is 10Nm
Noise level is 35dB
Certifications
IP54 rated
CE according to 89/336/EEC
92/31/EEC
UL Enclosure Type 2
IEC/EN 60730-1
IEC/EN 60730-2-14
