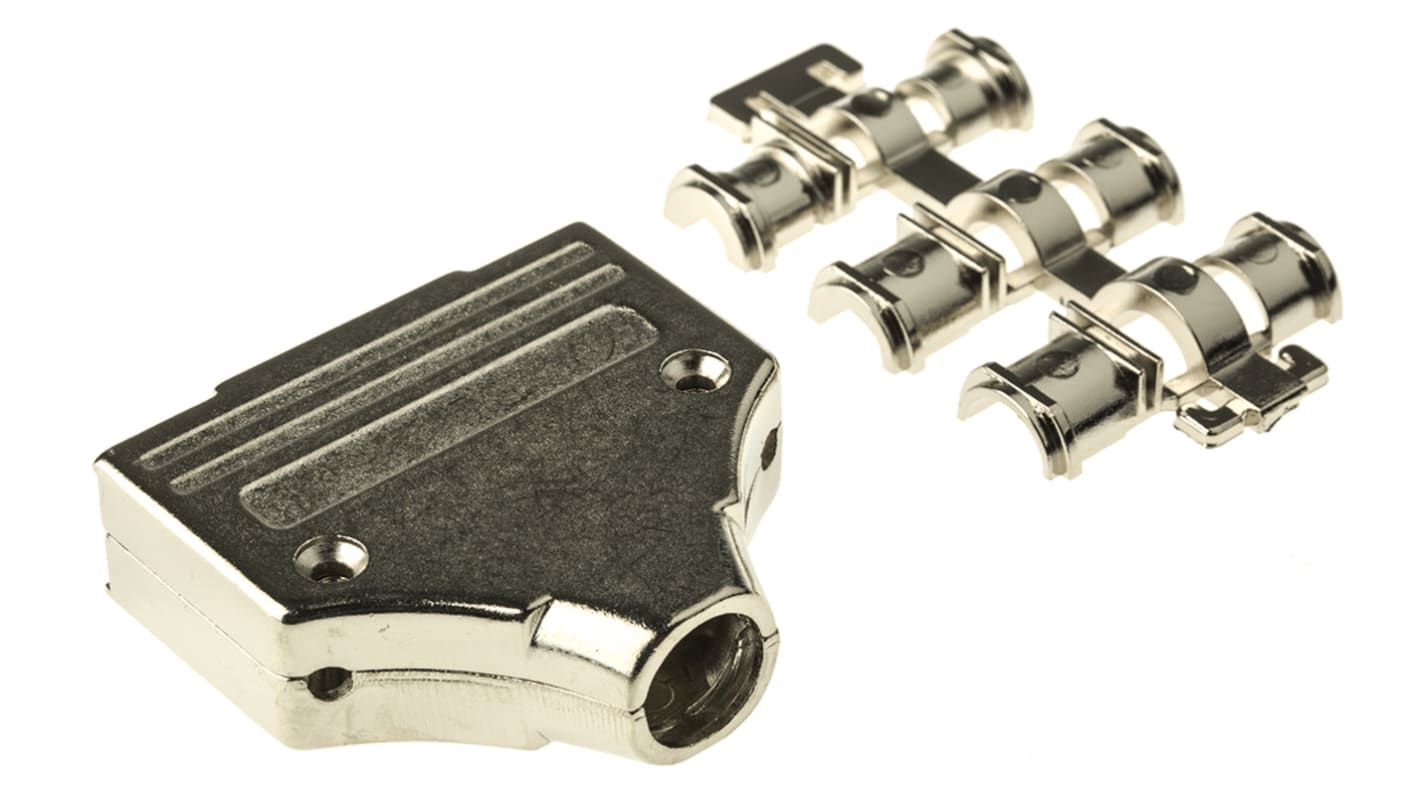

MH Connectors MHDM Series Zinc D Sub Backshell, 25 Way, Strain Relief
- N° de stock RS:
- 447-7369
- Numéro d'article Distrelec:
- 110-65-503
- Référence fabricant:
- MHDM25-K
- Fabricant:
- MH Connectors
Offre groupée disponible
Sous-total (1 unité)*
4,44 €
(TVA exclue)
5,37 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- Plus 200 unité(s) expédiée(s) à partir du 15 décembre 2025
- Plus 4 013 unité(s) expédiée(s) à partir du 15 décembre 2025
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 24 | 4,44 € |
| 25 - 74 | 3,77 € |
| 75 - 199 | 3,01 € |
| 200 - 399 | 2,62 € |
| 400 + | 2,46 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 447-7369
- Numéro d'article Distrelec:
- 110-65-503
- Référence fabricant:
- MHDM25-K
- Fabricant:
- MH Connectors
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | MH Connectors | |
| Number of Contacts | 25 | |
| D-Sub Shell Size | B | |
| Housing Material | Zinc | |
| Body Orientation | Straight | |
| Colour | Silver | |
| Strain Relief | Yes | |
| Series | MHDM | |
| Sélectionner tout | ||
|---|---|---|
Marque MH Connectors | ||
Number of Contacts 25 | ||
D-Sub Shell Size B | ||
Housing Material Zinc | ||
Body Orientation Straight | ||
Colour Silver | ||
Strain Relief Yes | ||
Series MHDM | ||
- Pays d'origine :
- CN
MH Connectors MHDM Series
The MHDM range of Die-Cast Zinc Hoods from the MH MHulti Hood series feature a two piece zinc body with two body retaining screws. The MHulti series hood systems are designed with the assembler in mind, the internal cable retainer holds the cable in place while the rest of the hood is assembled providing quick and easy use. The MHDM series is supplied with a metallised grommet kit and clamp.
• 2-piece die-cast hoods
• Exceptional RFI/EMI shielding
• Designed for quick and easy assembly of cable to hood
• Cable is held in place whilst the rest of the assembly is completed
• Metallised plastic bushing insert provides maximum 360° shielding at the critical cable entry point
• Simple removal of the inserts allow for rework or maintenance
• Exceptional RFI/EMI shielding
• Designed for quick and easy assembly of cable to hood
• Cable is held in place whilst the rest of the assembly is completed
• Metallised plastic bushing insert provides maximum 360° shielding at the critical cable entry point
• Simple removal of the inserts allow for rework or maintenance
