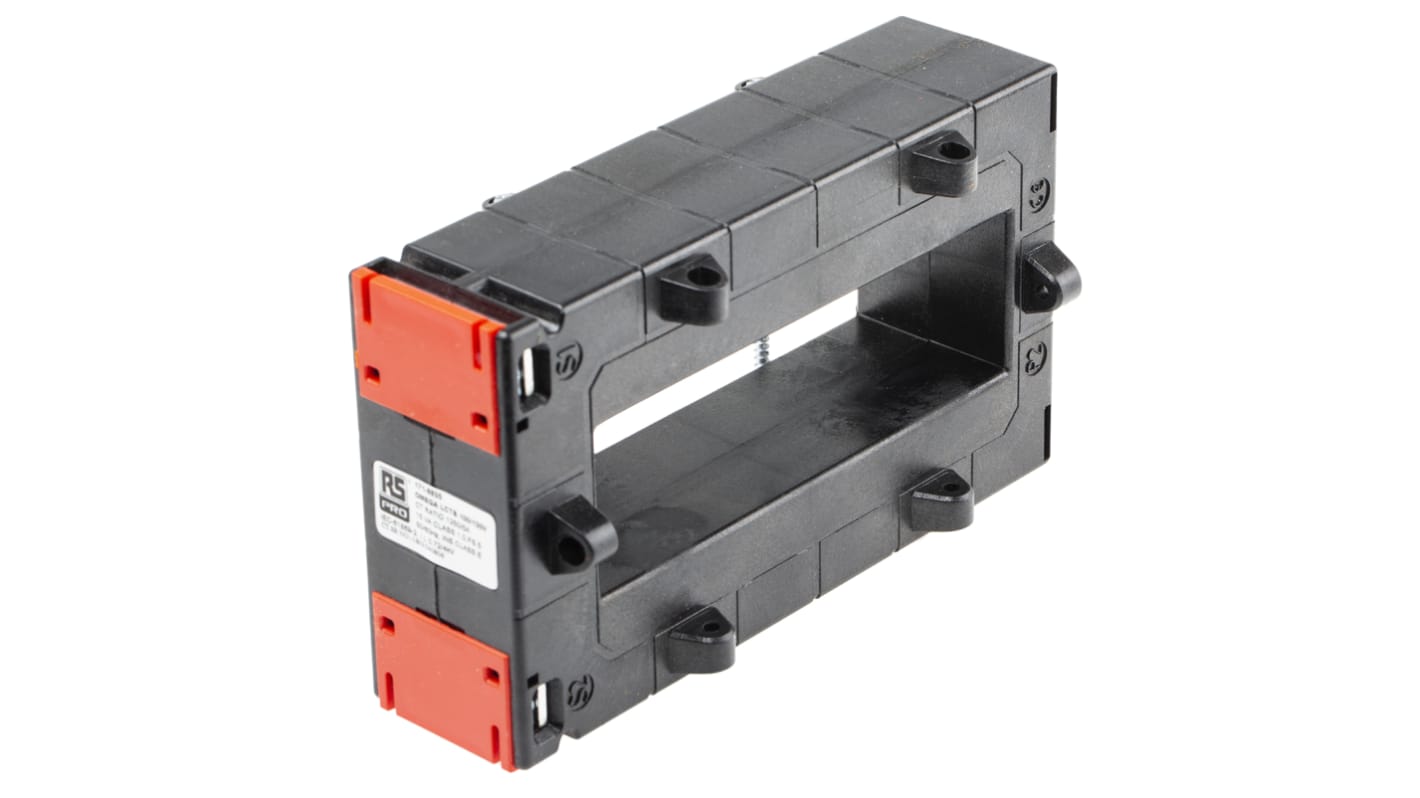

RS PRO RS PRO Series Current Transformer 1250 A 21 mm Bore
- N° de stock RS:
- 171-8835
- Fabricant:
- RS PRO
Offre groupée disponible
Sous-total (1 unité)*
69,29 €
(TVA exclue)
83,84 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 20 juillet 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 69,29 € |
| 5 - 9 | 66,51 € |
| 10 - 24 | 63,74 € |
| 25 - 49 | 60,96 € |
| 50 + | 58,20 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 171-8835
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Product Type | Current Transformer | |
| Series | RS PRO | |
| Secondary Current | 5A | |
| Terminal Type | Wire | |
| Primary Current | 1250A | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 55°C | |
| Depth | 45mm | |
| Standards/Approvals | UL94V-0, IEC 61869-1, IEC 60044-1, IEC 61010-2 | |
| Width | 99mm | |
| Maximum Operating Frequency | 60Hz | |
| Mount Type | Busbar, Cable, Wall | |
| Minimum Operating Frequency | 50Hz | |
| Bore Size | 21mm | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Product Type Current Transformer | ||
Series RS PRO | ||
Secondary Current 5A | ||
Terminal Type Wire | ||
Primary Current 1250A | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 55°C | ||
Depth 45mm | ||
Standards/Approvals UL94V-0, IEC 61869-1, IEC 60044-1, IEC 61010-2 | ||
Width 99mm | ||
Maximum Operating Frequency 60Hz | ||
Mount Type Busbar, Cable, Wall | ||
Minimum Operating Frequency 50Hz | ||
Bore Size 21mm | ||
- Pays d'origine :
- IN
CT’s are square type and encapsulated with polycarbonate. These metering CT’s feature sealable terminal covers and a wide range of primary current ratings. Available in various, Bus bar sizes, case widths, and mounting options.
Comprehensive class accuracy
Cost effective moulded case current transformer
Various mounting options including wall mounting, cable mounting, bus bar mounting and DIN rail mounting
Available in 0.2 & 0.2s accuracy class
Wire sealable terminal covers
