Phoenix Contact PACT MCR-V2 Series Current Transformer 1250 A 15 VA 42 mm Bore
- N° de stock RS:
- 131-869
- Référence fabricant:
- 2277200
- Fabricant:
- Phoenix Contact
Sous-total (1 unité)*
38,83 €
(TVA exclue)
46,98 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 04 juin 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 38,83 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 131-869
- Référence fabricant:
- 2277200
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | Current Transformer | |
| Series | PACT MCR-V2 | |
| Power Rating | 15VA | |
| Secondary Current | 5 A | |
| Minimum Operating Temperature | -25°C | |
| Primary Current | 1250A | |
| Maximum Operating Temperature | 40°C | |
| Weight | 420g | |
| Standards/Approvals | UKCA, EU RoHS, EN61869, EAC, cULus, CHINA RoHS, CE | |
| Width | 31 mm | |
| Length | 110mm | |
| Depth | 85mm | |
| Mount Type | Wall, DIN Rail | |
| Maximum Operating Frequency | 60Hz | |
| Minimum Operating Frequency | 50Hz | |
| Bore Size | 42 mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type Current Transformer | ||
Series PACT MCR-V2 | ||
Power Rating 15VA | ||
Secondary Current 5 A | ||
Minimum Operating Temperature -25°C | ||
Primary Current 1250A | ||
Maximum Operating Temperature 40°C | ||
Weight 420g | ||
Standards/Approvals UKCA, EU RoHS, EN61869, EAC, cULus, CHINA RoHS, CE | ||
Width 31 mm | ||
Length 110mm | ||
Depth 85mm | ||
Mount Type Wall, DIN Rail | ||
Maximum Operating Frequency 60Hz | ||
Minimum Operating Frequency 50Hz | ||
Bore Size 42 mm | ||
- Pays d'origine :
- DE

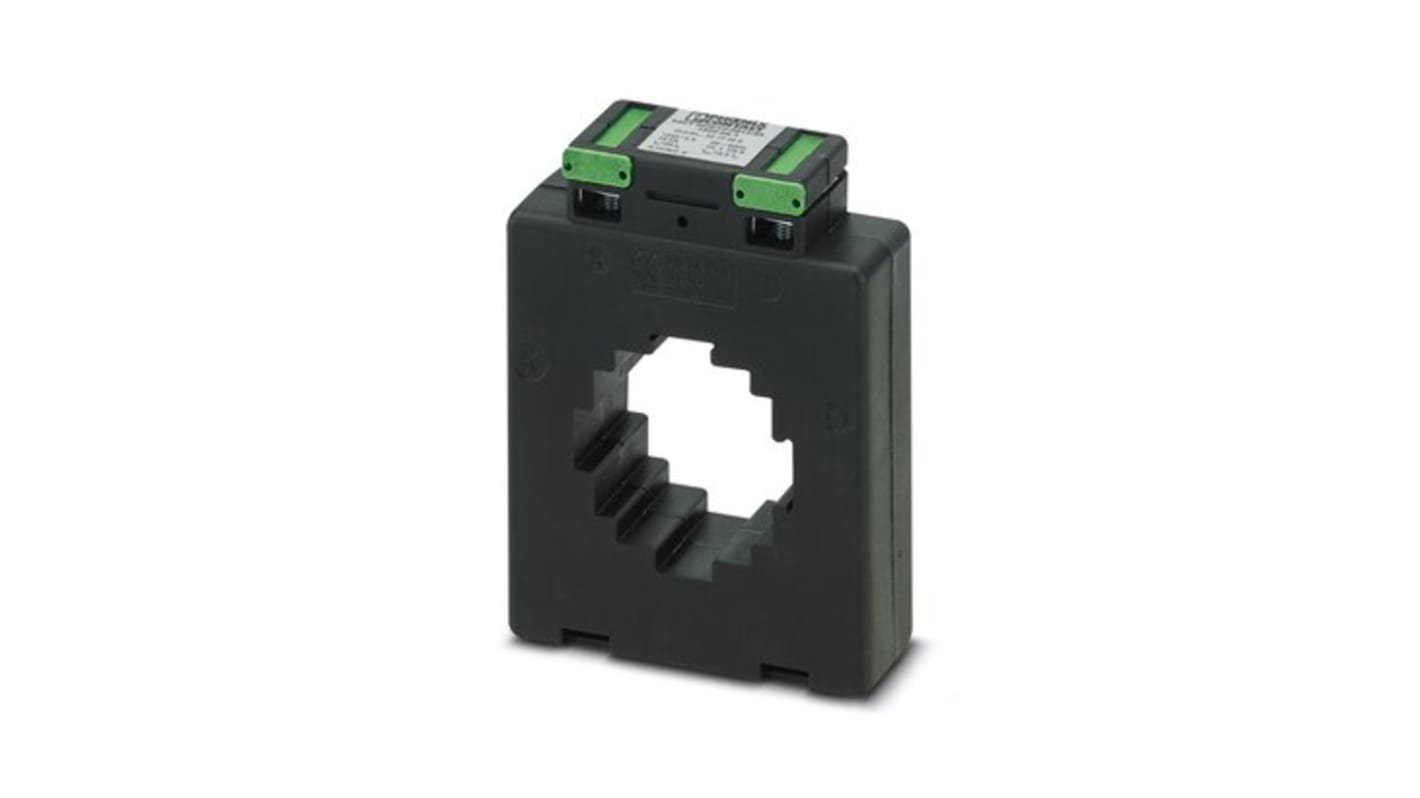

The Phoenix Contact Current Transformer is designed to accurately measure AC currents. With a rated power of 15 VA and an accuracy class 1, this window type transformer is ideal for various applications. The compact design and screw connection make installation easy and efficient.
Environmentally friendly with EU RoHS compliance
Compatible with DIN rail mounting for flexible installation
