Phoenix Contact PACT MCR-V2 Series Current Transformer 125 A 3.75 VA 28mm Bore
- N° de stock RS:
- 129-605
- Référence fabricant:
- 2277624
- Fabricant:
- Phoenix Contact
Sous-total (1 unité)*
24,44 €
(TVA exclue)
29,57 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 1 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 4 unité(s) expédiée(s) à partir du 25 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 24,44 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 129-605
- Référence fabricant:
- 2277624
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | Current Transformer | |
| Series | PACT MCR-V2 | |
| Power Rating | 3.75VA | |
| Secondary Current | 5A | |
| Minimum Operating Temperature | -25°C | |
| Primary Current | 125A | |
| Maximum Operating Temperature | 40°C | |
| Width | 31mm | |
| Length | 82mm | |
| Standards/Approvals | CHINA RoHS, cULus, EN61869, UKCA, CE, EU RoHS, EAC | |
| Depth | 60mm | |
| Weight | 302.4g | |
| Maximum Operating Frequency | 60Hz | |
| Mount Type | DIN Rail, Wall | |
| Minimum Operating Frequency | 50Hz | |
| Bore Diameter | 28mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type Current Transformer | ||
Series PACT MCR-V2 | ||
Power Rating 3.75VA | ||
Secondary Current 5A | ||
Minimum Operating Temperature -25°C | ||
Primary Current 125A | ||
Maximum Operating Temperature 40°C | ||
Width 31mm | ||
Length 82mm | ||
Standards/Approvals CHINA RoHS, cULus, EN61869, UKCA, CE, EU RoHS, EAC | ||
Depth 60mm | ||
Weight 302.4g | ||
Maximum Operating Frequency 60Hz | ||
Mount Type DIN Rail, Wall | ||
Minimum Operating Frequency 50Hz | ||
Bore Diameter 28mm | ||
- Pays d'origine :
- DE

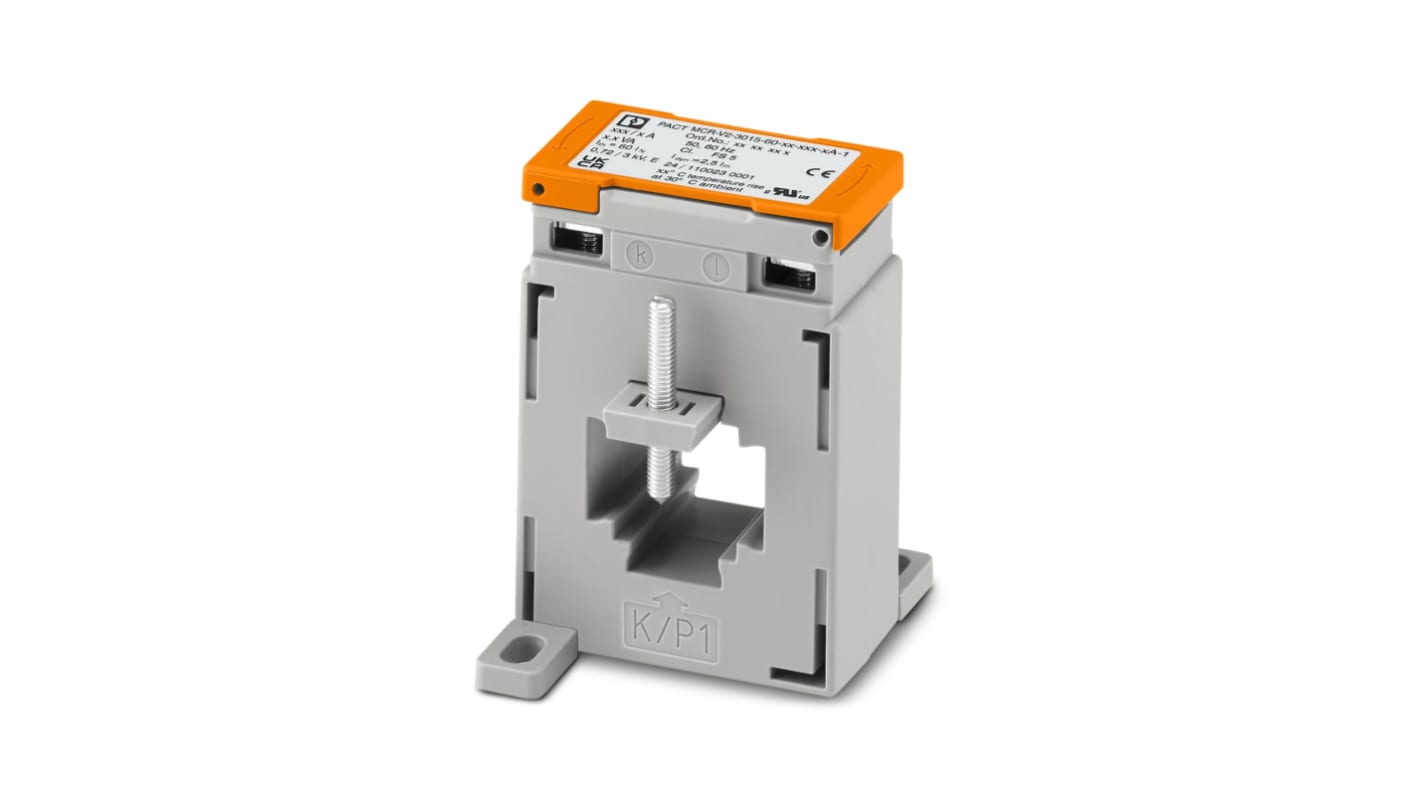

The Phoenix Contact Current Transformer is a window-type transformer with a primary current of 125 A AC and a secondary current of 5 A AC. It comes with an accuracy class 1 rating and a rated power of 3.75 VA, making it ideal for various applications. The transformer is designed for easy installation and provides reliable performance.
Window type current transformer design for easy installation
Rated power of 3.75 VA for reliable performance
