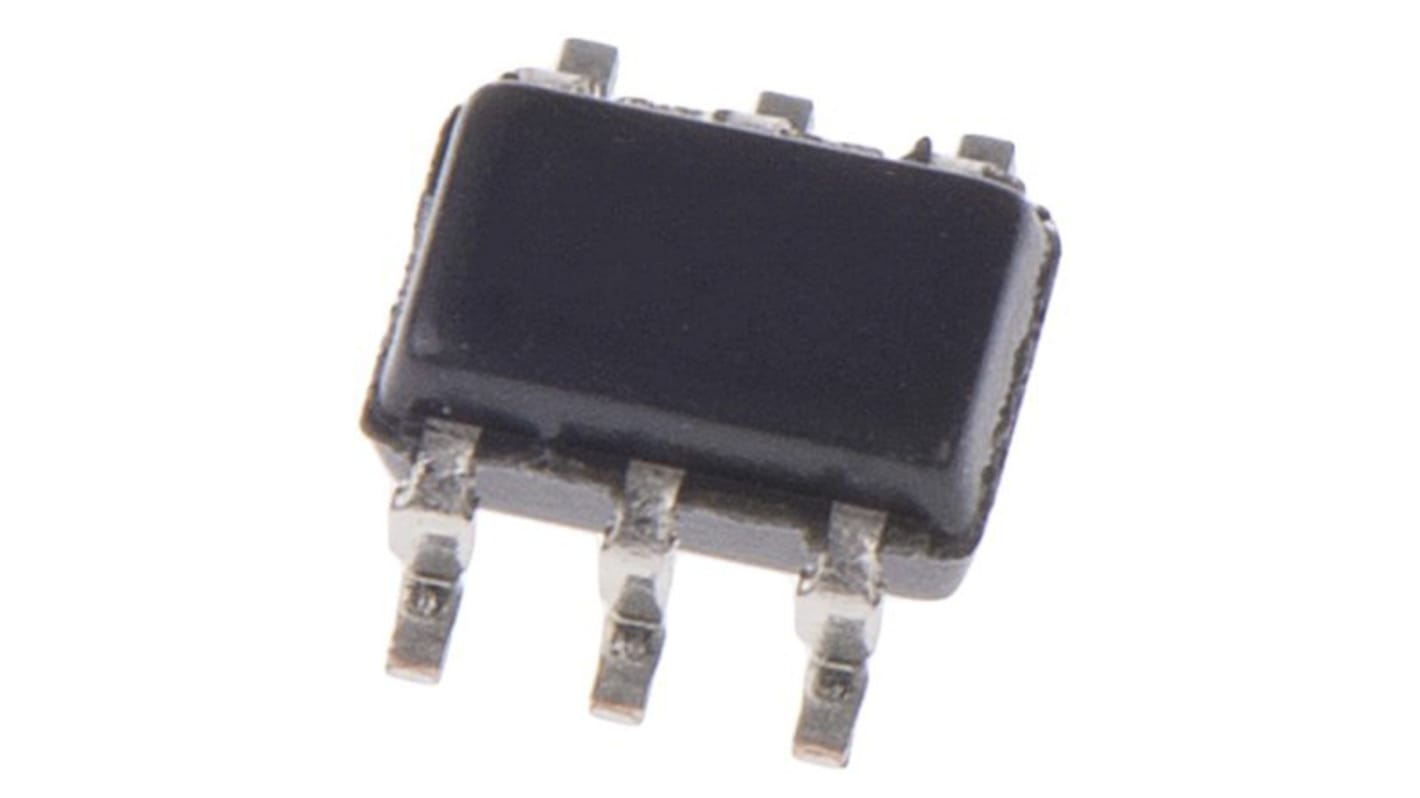

STMicroelectronics Bidirectional Current Sensing Amplifier Single 6-Pin SC-70

Voir la catégorie
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
N° de stock RS:
225-0025
Référence fabricant:
TSC215ICT
Fabricant:
STMicroelectronics
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

STMicroelectronics

Power Supply Type

Single

Product Type

Current Sensing Amplifier

Minimum Supply Voltage

2.7V

Maximum Supply Voltage

26V

CMRR - Common Mode Rejection Ratio

105dB

Number of Channels

1

Supply Current

5mA

Mount Type

Surface

Package Type

SC-70

Pin Count

6

GBP - Gain Bandwidth Product

60kHz

Minimum Operating Temperature

-40°C

Series

TSC215

Width

1.35 mm

Standards/Approvals

No

Length

2.2mm

Height

1.1mm

Output Type

Bidirectional

Maximum Operating Temperature

125°C

Automotive Standard

No

The STMicroelectronics Current sense amplifier is can sense current via a shunt resistor over a wide range of common mode voltages from -0.3 to +26 V, whatever the supply voltage is. They are available in three different versions, each of them having a different gain. The TSC21x are designed with a specific zero-drift architecture, which can achieve high precision. The TSC21x are current sense amplifiers that may be used in various functions such as precision current measurement, over current protection, current monitoring, feedback loops. These devices fully operate over the broad supply voltage range of 2.7 to 26 V and over the industrial temperature range -40 to 125 °C.

Wide common mode voltage -0.3 to 26 V

Offset voltage ±35 μV max. (TSC210)

2.7 to 26 V supply voltage

Gain error ±1% maximum

Offset drift: 0.1 μV/°C maximum

Gain drift: 20 ppm/°C maximum

Quiescent current 100 μA
