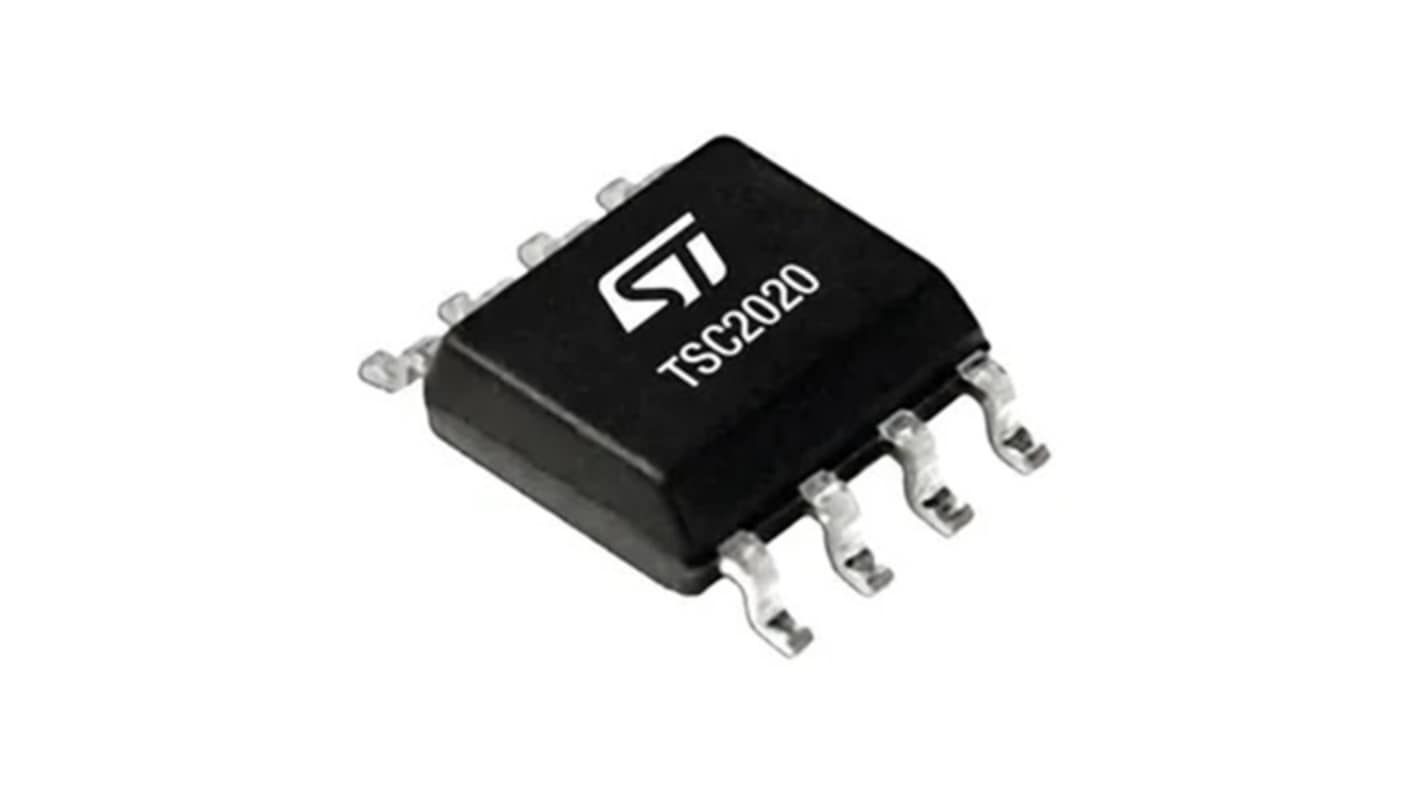

TSC2020IST STMicroelectronics Current, Voltage Current Sensing Amplifier Single 8-Pin MiniSO8
- N° de stock RS:
- 276-927
- Référence fabricant:
- TSC2020IST
- Fabricant:
- STMicroelectronics
Offre groupée disponible
Sous-total (1 ruban de 2 unités)*
3,49 €
(TVA exclue)
4,222 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 298 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le ruban* |
|---|---|---|
| 2 - 18 | 1,745 € | 3,49 € |
| 20 - 198 | 1,58 € | 3,16 € |
| 200 + | 1,445 € | 2,89 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 276-927
- Référence fabricant:
- TSC2020IST
- Fabricant:
- STMicroelectronics
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | STMicroelectronics | |
| Power Supply Type | Single | |
| Product Type | Current Sensing Amplifier | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 5.5V | |
| CMRR - Common Mode Rejection Ratio | 100dB | |
| Number of Channels | 1 | |
| Supply Current | 2.4mA | |
| Mount Type | Surface | |
| Package Type | MiniSO8 | |
| Pin Count | 8 | |
| Minimum Operating Temperature | -40°C | |
| GBP - Gain Bandwidth Product | 650kHz | |
| Width | 6.2 mm | |
| Height | 1.75mm | |
| Length | 5mm | |
| Standards/Approvals | RoHS, JEDEC standard JESD22-A114F, ANSI/ESD STM5.3.1, AEC-Q100 | |
| Series | TSC2020 | |
| Maximum Operating Temperature | 125°C | |
| Output Type | Current, Voltage | |
| Automotive Standard | AEC-Q100 | |
| Sélectionner tout | ||
|---|---|---|
Marque STMicroelectronics | ||
Power Supply Type Single | ||
Product Type Current Sensing Amplifier | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 5.5V | ||
CMRR - Common Mode Rejection Ratio 100dB | ||
Number of Channels 1 | ||
Supply Current 2.4mA | ||
Mount Type Surface | ||
Package Type MiniSO8 | ||
Pin Count 8 | ||
Minimum Operating Temperature -40°C | ||
GBP - Gain Bandwidth Product 650kHz | ||
Width 6.2 mm | ||
Height 1.75mm | ||
Length 5mm | ||
Standards/Approvals RoHS, JEDEC standard JESD22-A114F, ANSI/ESD STM5.3.1, AEC-Q100 | ||
Series TSC2020 | ||
Maximum Operating Temperature 125°C | ||
Output Type Current, Voltage | ||
Automotive Standard AEC-Q100 | ||
- Pays d'origine :
- CN
The STMicroelectronics Bidirectional current sense amplifier can sense current via a shunt resistor over a wide range of common mode voltages, from -4 to +100 V, whatever the supply voltage is. It is able to sense very low drop voltages, minimizing measurement error. It is used for various functions like precision current measurement, overcurrent protection, current monitoring and feedback loops.
Enhanced PWM rejection
Internal fixed gain 20 V/V
SO8 and MiniSO8 package
AEC-Q100 qualified
High common mode rejection CMR
