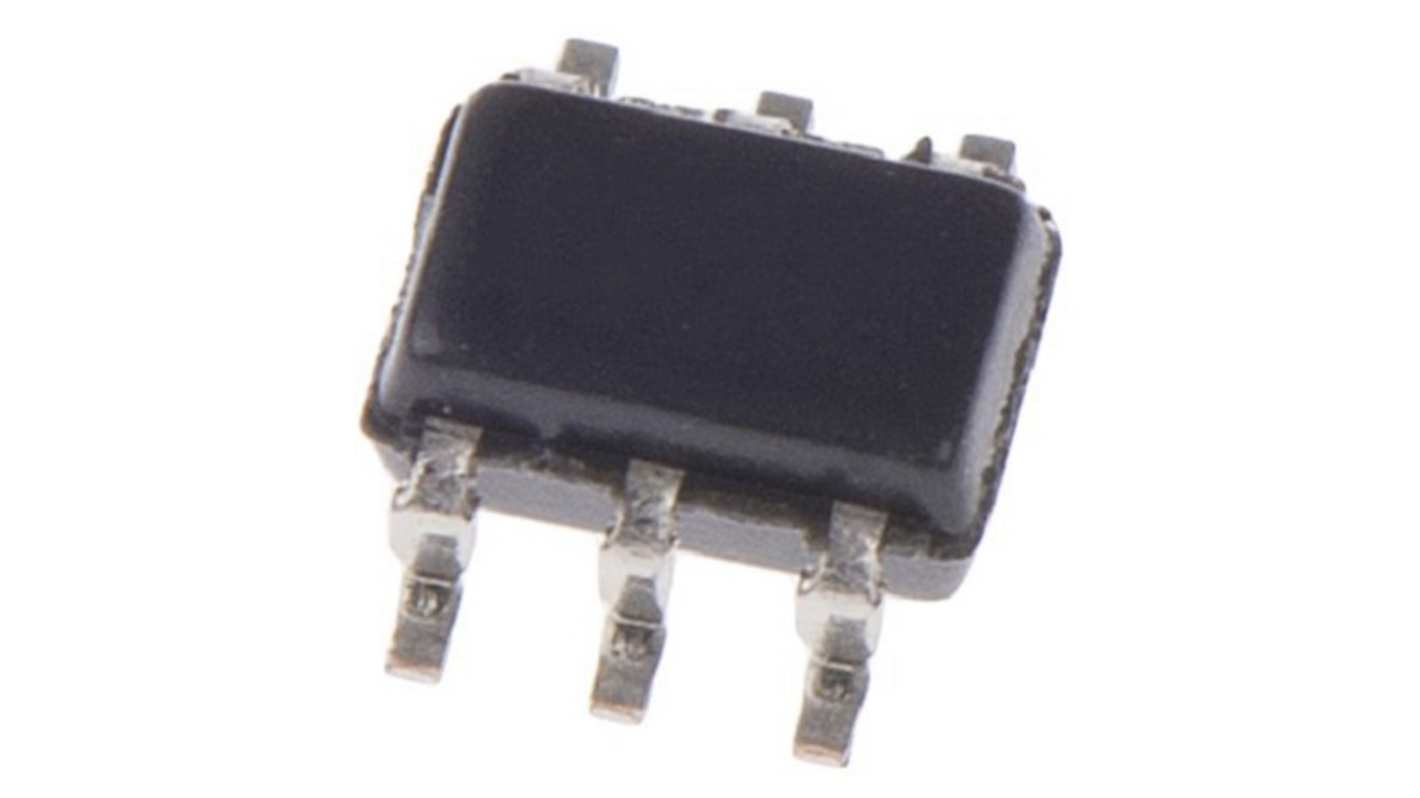

TSC199A2ICT STMicroelectronics Voltage Current Sensing Amplifier Single 6-Pin SC-70-6

Voir la catégorie

Sous-total (1 unité)*

0,65 €

(TVA exclue)

0,79 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité
Prix par unité
1 +0,65 €

*Prix donné à titre indicatif

Options de conditionnement :
N° de stock RS:
215-064
Référence fabricant:
TSC199A2ICT
Fabricant:
STMicroelectronics
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

STMicroelectronics

Power Supply Type

Single

Product Type

Current Sensing Amplifier

Maximum Supply Voltage

26V

Minimum Supply Voltage

2.7V

CMRR - Common Mode Rejection Ratio

100dB

Number of Channels

1

Supply Current

115μA

Mount Type

Surface

Package Type

SC-70-6

Pin Count

6

Minimum Operating Temperature

-40°C

GBP - Gain Bandwidth Product

40kHz

Series

TSC199A

Length

1.35mm

Width

1.75 mm

Height

0.8mm

Standards/Approvals

RoHS

Maximum Operating Temperature

125°C

Automotive Standard

No

Output Type

Voltage

Pays d'origine :
MY
The STMicroelectronics Zero-drift current sense amplifiers that can sense current via a shunt resistor over a wide range of common-mode voltages from -0.3 V to +26 V, whatever the supply voltage is. It is available in three different versions, each of them having a different gain: 50 V/V, 100 V/V, and 200 V/V. This current sense amplifiers is designed with a specific zero-drift architecture, which can achieve high precision. The Current sense amplifiers is able to sense very low drop voltages, as low as 10 mV full scale, minimizing measurement error.

Different gain available

Wide common mode voltage
