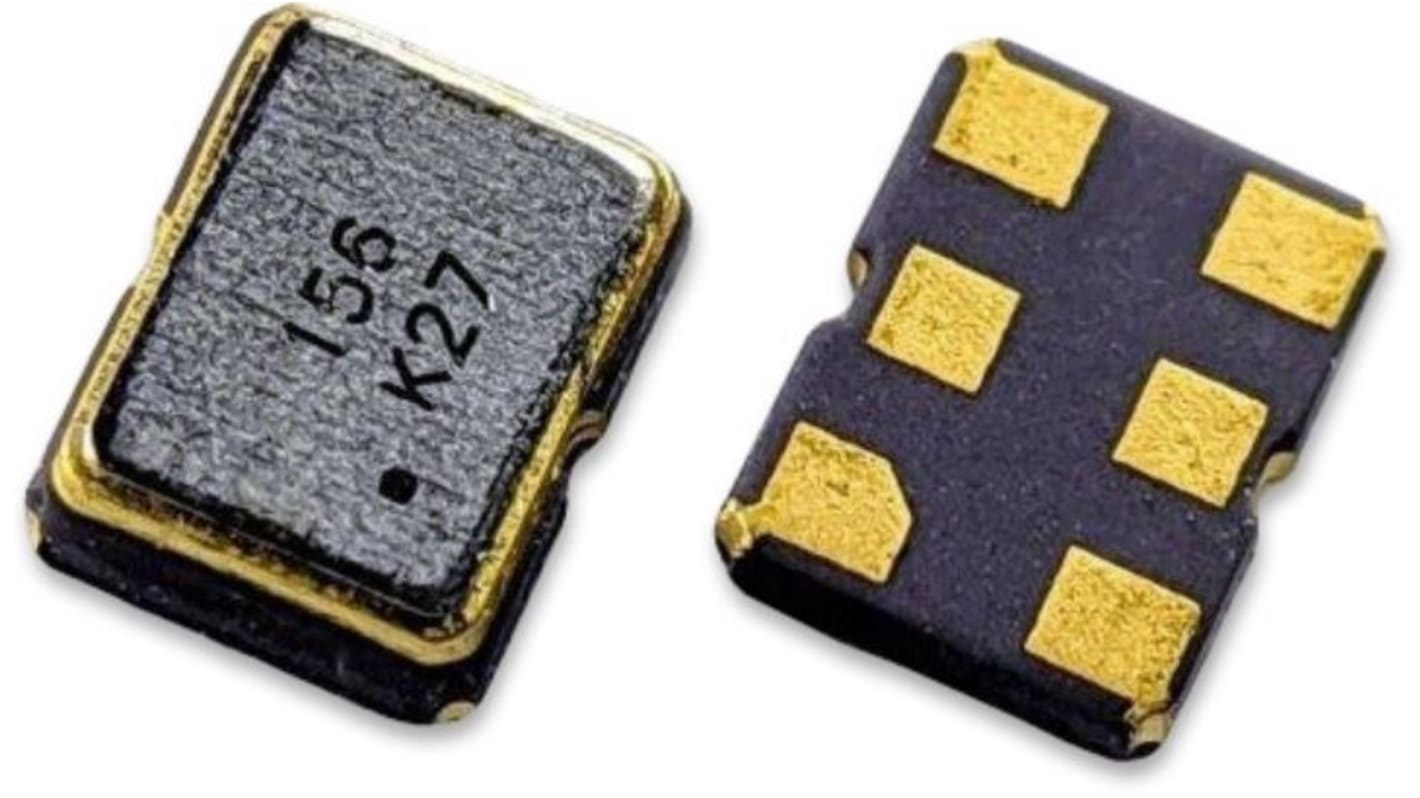

Abracon, 125MHz XO Crystal Oscillator, ±30 ppm over -40°C to +85°C LVDS Surface Mount AK2DAF1-125.00000T
- N° de stock RS:
- 240-0873
- Référence fabricant:
- AK2DAF1-125.00000T
- Fabricant:
- Abracon
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 paquet de 2 unités)*
9,81 €
(TVA exclue)
11,87 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 928 unité(s) expédiée(s) à partir du 24 août 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 2 - 48 | 4,905 € | 9,81 € |
| 50 - 98 | 4,42 € | 8,84 € |
| 100 - 248 | 4,055 € | 8,11 € |
| 250 - 498 | 3,97 € | 7,94 € |
| 500 + | 3,895 € | 7,79 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 240-0873
- Référence fabricant:
- AK2DAF1-125.00000T
- Fabricant:
- Abracon
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Abracon | |
| Oscillator Type | XO | |
| Product Type | Crystal Oscillator | |
| Output Frequency | 125MHz | |
| Frequency Stability | ±30 ppm over -40°C to +85°C | |
| Packaging | Tape & Reel | |
| Package Type | Surface Mount | |
| Minimum Supply Voltage | 1.71V | |
| Output Level | LVDS | |
| Maximum Supply Voltage | 3.63V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | AK2 | |
| Standards/Approvals | RoHS/RoHS II | |
| Width | 2mm | |
| Length | 2.5mm | |
| Height | 1mm | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Abracon | ||
Oscillator Type XO | ||
Product Type Crystal Oscillator | ||
Output Frequency 125MHz | ||
Frequency Stability ±30 ppm over -40°C to +85°C | ||
Packaging Tape & Reel | ||
Package Type Surface Mount | ||
Minimum Supply Voltage 1.71V | ||
Output Level LVDS | ||
Maximum Supply Voltage 3.63V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series AK2 | ||
Standards/Approvals RoHS/RoHS II | ||
Width 2mm | ||
Length 2.5mm | ||
Height 1mm | ||
Automotive Standard No | ||
The Abracon Fixed-Frequency Miniature Clock Oscillator is latest addition to the ClearClockTM family. The AK2 family is based on 3rd overtone quartz crystal technology and is ideally suited for optical transceivers, networking and server systems. AK2 fami
Based on 3rd Overtone, Quartz Crystal Technology
Ultra-low rms jitter
Lowest in-class power consumption
LVPECL, LVDS and HCSL differential output options
Output enabled (Active High standard default)
3.3V, 2.5V & 1.8V supply voltage options
