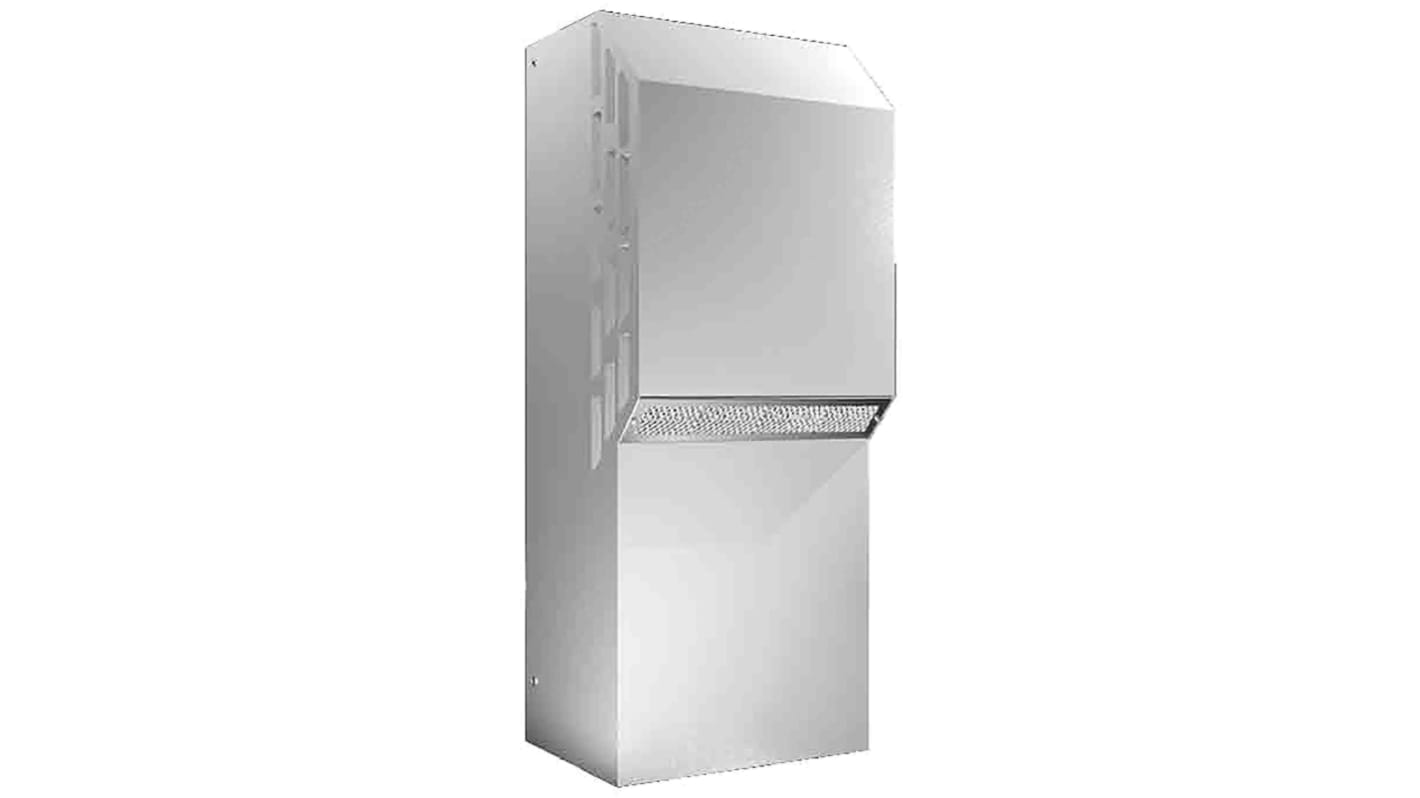

Rittal TopTherm Blue e Series Enclosure Cooling Unit, 1100W, 805 m³/h 230V ac 1020 mm 405mm 358 mm
- N° de stock RS:
- 223-9998
- Référence fabricant:
- 3304508
- Fabricant:
- Rittal
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
3 149,58 €
(TVA exclue)
3 810,99 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 3 149,58 € |
| 5 - 9 | 3 055,09 € |
| 10 + | 2 966,90 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 223-9998
- Référence fabricant:
- 3304508
- Fabricant:
- Rittal
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Rittal | |
| Maximum Cooling Power | 1100W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 805m³/h | |
| Input Power | 620W | |
| Mount Type | Wall | |
| Connection Type | Plug-In Terminal Strip | |
| IP Rating | IP56, IP34 | |
| Maximum Supply Voltage | 230V ac | |
| Material | Sheet Steel | |
| Min Temperature Setting | 20°C | |
| Certification | cUL, UL, EAC, CCC | |
| Type of installation | Wall-Mounted | |
| Height | 1020mm | |
| Depth | 358mm | |
| Width | 405mm | |
| Weight | 55kg | |
| Standards/Approvals | CCC exception letter, UL+C-UL, EAC | |
| Series | TopTherm Blue e | |
| Cooler Type | Thermoelectric Cooler | |
| Frequency | 60Hz | |
| Refrigerant Type | R513a | |
| Nominal Current | 4.1A | |
| Cooling Capacity | 2.5kW | |
| Sélectionner tout | ||
|---|---|---|
Marque Rittal | ||
Maximum Cooling Power 1100W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 805m³/h | ||
Input Power 620W | ||
Mount Type Wall | ||
Connection Type Plug-In Terminal Strip | ||
IP Rating IP56, IP34 | ||
Maximum Supply Voltage 230V ac | ||
Material Sheet Steel | ||
Min Temperature Setting 20°C | ||
Certification cUL, UL, EAC, CCC | ||
Type of installation Wall-Mounted | ||
Height 1020mm | ||
Depth 358mm | ||
Width 405mm | ||
Weight 55kg | ||
Standards/Approvals CCC exception letter, UL+C-UL, EAC | ||
Series TopTherm Blue e | ||
Cooler Type Thermoelectric Cooler | ||
Frequency 60Hz | ||
Refrigerant Type R513a | ||
Nominal Current 4.1A | ||
Cooling Capacity 2.5kW | ||
- Pays d'origine :
- IT
Rittal TopTherm Blue e Series Enclosure Cooling Unit, 1100W Maximum Cooling Power, 600 m³/h Internal Circuit Air Flow - 3304508
This enclosure cooling unit is designed to maintain optimal temperatures within electrical enclosures. With dimensions of 1020mm in height, 405mm in width, and 358mm in depth, it provides an effective cooling solution for various environments. The unit operates efficiently with a maximum cooling power of 1100W, ensuring reliable performance in industrial applications.
Features & Benefits
• Energy-efficient thermoelectric cooler enhances system reliability
• 230V AC supply voltage simplifies installation and use
• High airflow rates of 600m³/h internally and 805m³/h externally improve cooling effectiveness
• Nano-coated condenser with electric condensate evaporation boosts longevity and performance
Applications
• Suitable for outdoor cooling in harsh environments
• Ideal for electrical enclosure cooling in automation systems
• Compatible with various mechanical and industrial equipment
• Utilised in electronics cooling to maintain performance and reliability
How does the cooling unit manage heat in varying temperatures?
The device operates in compressor cooling mode from +10°C ambient temperature, with only the internal fan active when temperatures drop below this. This ensures constant cooling regardless of external conditions.
What is the maximum allowable pressure for the cooling system?
The permissible operating pressure for this unit is 28 bar, providing robust performance under pressure during operation.
Can this unit be integrated with IoT systems for remote monitoring?
Yes, the unit can be linked to IoT interfaces via the Blue e IoT adaptor, allowing for remote temperature monitoring and management.
What happens if the ambient temperature exceeds the specified range?
If the ambient temperature exceeds +50°C, the unit may not operate effectively, potentially leading to overheating of the enclosed equipment.
