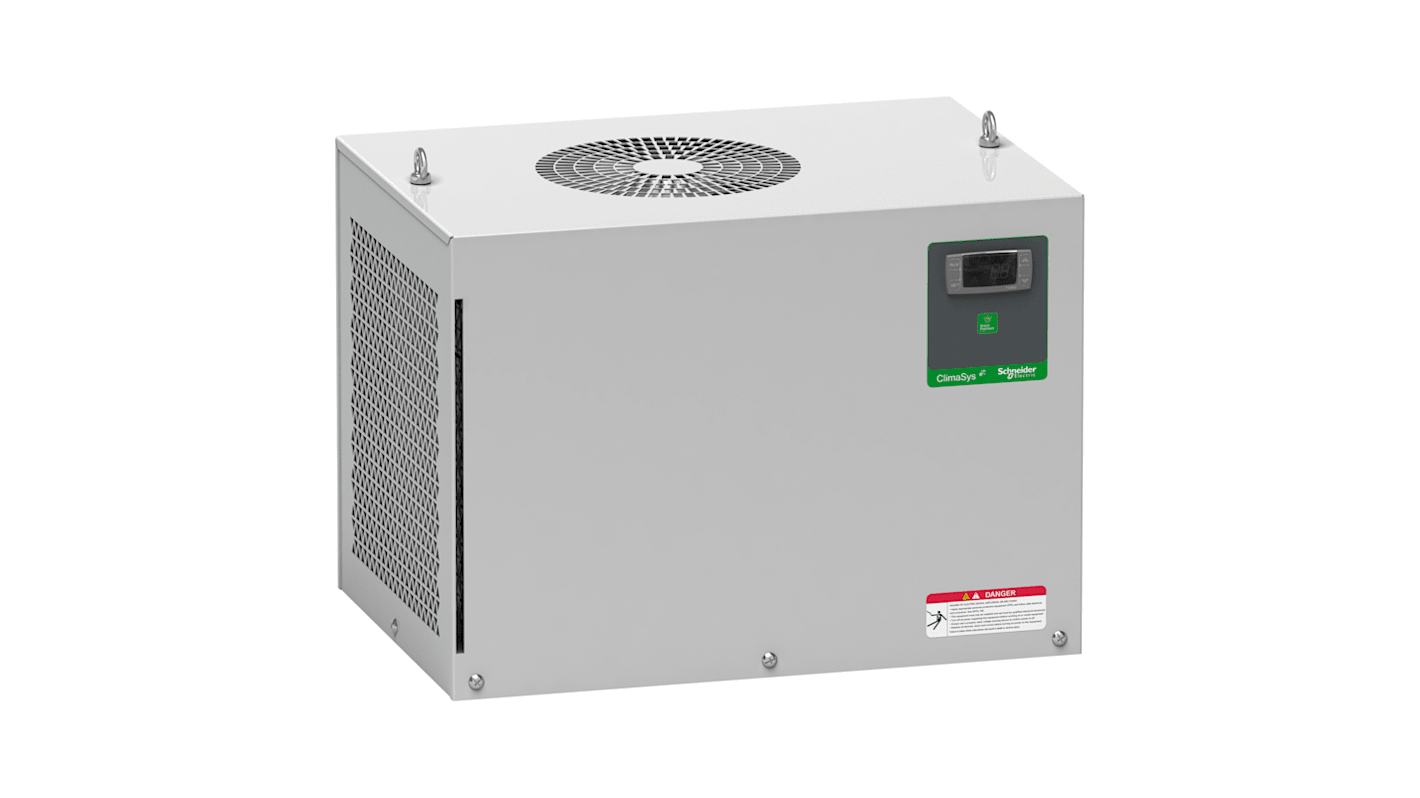

Schneider Electric Enclosure Cooling Unit, 2050W, 1050 m³/h 400V ac 415 mm 567mm 401 mm
- N° de stock RS:
- 211-2744
- Référence fabricant:
- NSYCU2K3P4R
- Fabricant:
- Schneider Electric
Sous-total (1 unité)*
3 764,88 €
(TVA exclue)
4 555,50 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 10 août 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 3 764,88 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 211-2744
- Référence fabricant:
- NSYCU2K3P4R
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Product Type | Enclosure Cooling Unit | |
| Maximum Cooling Power | 2050W | |
| Air Flow | 1050m³/h | |
| Noise Level | 65dB | |
| Input Power | 990W | |
| Mount Type | Roof | |
| Power Consumption | 1190W | |
| Maximum Supply Voltage | 400V ac | |
| IP Rating | IP54, IP34 | |
| Certification | CE | |
| Maximum Temperature Setting | 55°C | |
| Min Temperature Setting | 20°C | |
| Type of installation | Indoor | |
| Material | Steel | |
| Standards/Approvals | EN 60204-1, EN 60335-2-40, EN/ISO 12100, EN 378, EN 60335-1 | |
| Width | 567mm | |
| Height | 415mm | |
| Depth | 401mm | |
| Weight | 52kg | |
| Cooling Capacity | 1560W | |
| Nominal Current | 1.9A | |
| Frequency | 60Hz | |
| Refrigerant Type | R134A (0.55 Kg) | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Product Type Enclosure Cooling Unit | ||
Maximum Cooling Power 2050W | ||
Air Flow 1050m³/h | ||
Noise Level 65dB | ||
Input Power 990W | ||
Mount Type Roof | ||
Power Consumption 1190W | ||
Maximum Supply Voltage 400V ac | ||
IP Rating IP54, IP34 | ||
Certification CE | ||
Maximum Temperature Setting 55°C | ||
Min Temperature Setting 20°C | ||
Type of installation Indoor | ||
Material Steel | ||
Standards/Approvals EN 60204-1, EN 60335-2-40, EN/ISO 12100, EN 378, EN 60335-1 | ||
Width 567mm | ||
Height 415mm | ||
Depth 401mm | ||
Weight 52kg | ||
Cooling Capacity 1560W | ||
Nominal Current 1.9A | ||
Frequency 60Hz | ||
Refrigerant Type R134A (0.55 Kg) | ||
- Pays d'origine :
- IT
The Schneider Electric ClimaSys CU range are cooling units for harsh environments, where ambient temperatures can reach up to 55°C. The unit’s integrated alarm system will signal you in the event of any operational anomaly. An internal grid of a new design protects the components and personnel during operation of the equipment while at the same time facilitating cleaning and maintenance. The cooling units has three models of mounting which are roof model, floor model and side model.
Several mounting solutions
Enhanced protection
Precision of temperature control
Simplicity
UL, CE, EAC Certified
